Harness Routing Views

WARNING: This page is about a different car, the 2004 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Left Front of the Vehicle Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G101
2	C141
3	S123
4	C143

Fig 2: Right Front of the Vehicle Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C120
2	G100
3	S124
4	C142

Fig 3: Right Front Frame and Underbody Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C144
2	Park/Turn Signal Lamp - RF
3	Fog Lamp - RF

Fig 4: Top Left Front of Engine Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine Coolant Temperature (ECT) Sensor
2	Engine Coolant Temperature (ECT) Sensor Jumper Harness
3	C126

Fig 5: Lower Front of the Engine Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Knock Sensor (KS) Bank 1
2	G115
3	Starter Solenoid
4	Starter
5	Starter Solenoid Terminal S
6	Fusible Link
7	Positive Battery Cable
8	Engine Oil Level Switch

Fig 6: Left Side of the Engine Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	S107
2	C100
3	G113
4	S105
5	S101
6	G115

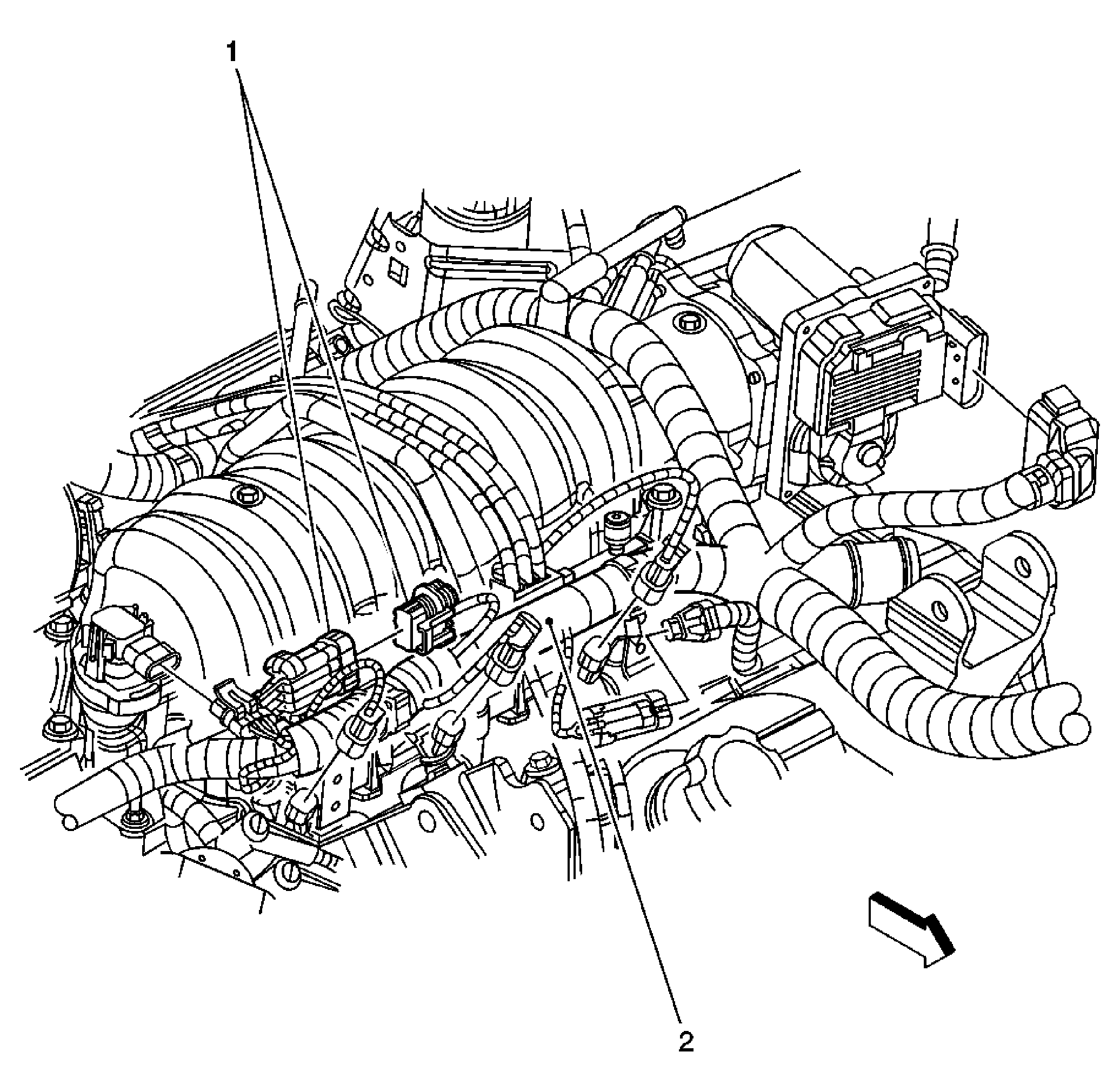

Fig 7: Front of the Engine Compartment Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C110
2	S109

Fig 8: RF of the Engine Compartment Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Camshaft Position (CMP) Sensor
2	Ignition Control Module (ICM) Wiring Harness
3	C110
4	Ignition Control Module (ICM)
5	Ignition Coils
6	G112
7	Ignition Control Module (ICM) Wiring Harness
8	Ignition Control Module (ICM) Wiring Harness
9	Crankshaft Position (CKP) Sensor

Fig 9: Lower Right Side of the Engine Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C125
2	Engine Oil Pressure (EOP) Switch
3	Vehicle Speed Sensor (VSS)

Fig 10: Right Front of Engine Compartment Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G102
2	C104

Fig 11: Left Upper Front of Engine Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Supercharger Boost Control Solenoid (L32)
2	C126
3	C110

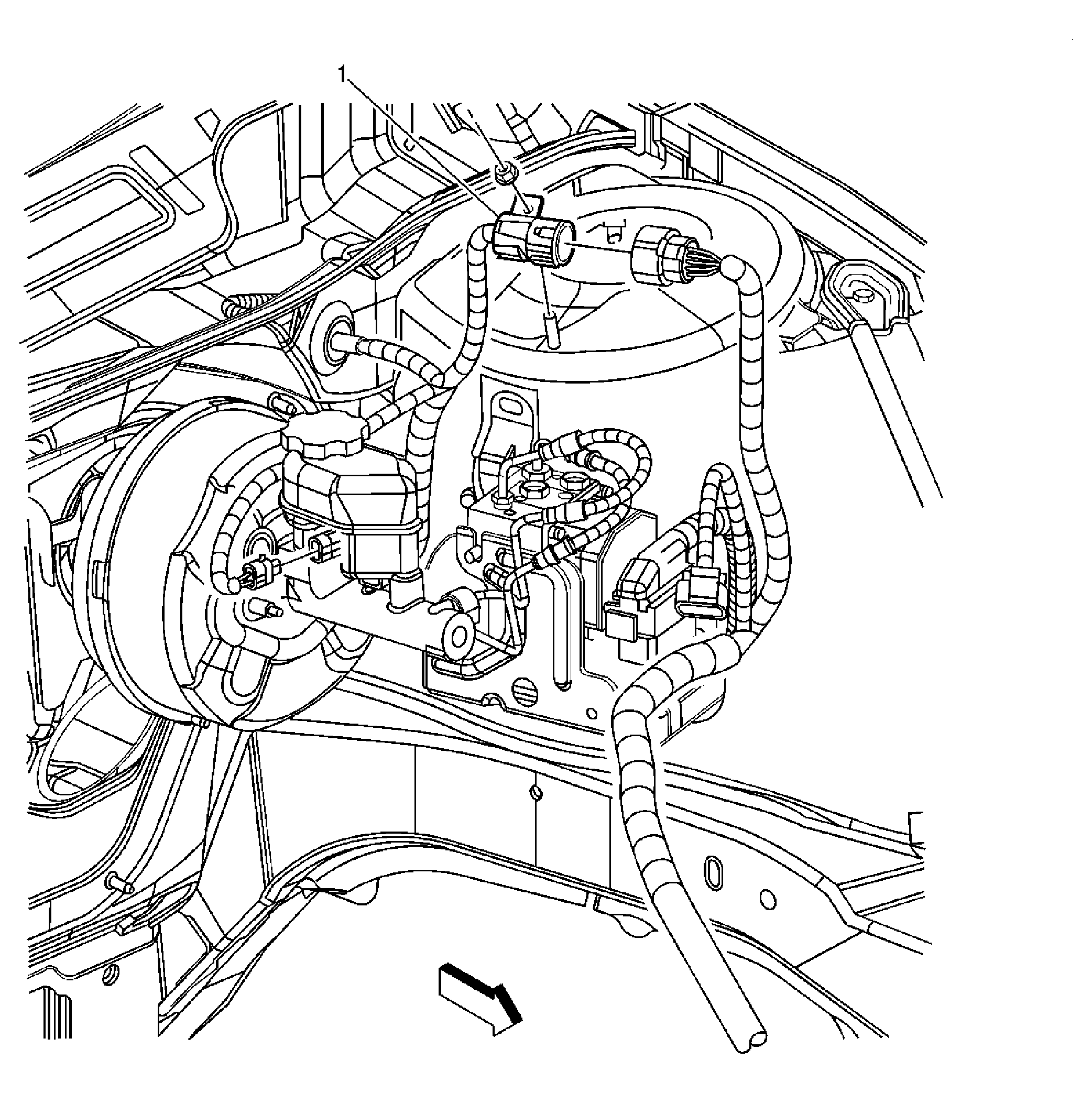

Fig 12: Left Rear of the Engine Compartment Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C101

Fig 13: Left Side of Upper Left Footwell Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Body Control Module (BCM)
2	C290
3	C291

Fig 14: Right Side of Upper Left Footwell Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C201
2	Inflatable Restraint Steering Wheel Module Coil, C1
3	G202
4	G201
5	Splice Pack SP205
6	Data Link Connnector (DLC)

Fig 15: Center of I/P Behind Radio Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Radio Connector, C2
2	C210
3	Radio Connector, C1
4	Driver Information Center (DIC), Connector
5	HVAC Control Module

Fig 16: Right Side of the I/P Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block - I/P
2	Inflatable Restraint I/P Module, Connector
3	C200
4	C202

Fig 17: Center of the Passenger Compartment Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A/T Shift Lock Control Solenoid
2	PRNDL Lamp
3	C241
4	C240

Fig 18: Under the Floor Console Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	S238
2	S231
3	Head Up Display (HUD) Switch
4	S374
5	Traction Control Switch
6	Accessory Power Outlet - Front
7	Accessory Power Outlet - Rear

Fig 19: Left Front of the Passenger Compartment Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C355
2	C290
3	C291
4	C208
5	C207
6	C301
7	S307
8	G301
9	S303

Fig 20: Right Side of the Passenger Compartment Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C302
2	C200
3	G302
4	C356
5	S406

Fig 21: Driver Door Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock - Driver
2	Inflatable Restraint Side Impact Sensor - Left (AY1)
3	Window Motor - Driver
4	Outside Rearview Mirror - Driver
5	Speaker - LF Door
6	C303
7	S305

Fig 22: Driver Door Trim Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror Switch
2	Window Switch - Driver
3	Door Lock Switch - Driver
4	C303
5	Speaker - LF Door Tweeter Connector
6	S304

Fig 23: Front Passenger Door Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror - Passenger
2	C304
3	Inflatable Restraint Side Impact Sensor - Right (AY1)
4	Door Lock - Front Passenger
5	Window Motor - Front Passenger
6	S604
7	Speaker - RF Door

Fig 24: Front Passenger Door Trim Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock Switch - Front Passenger
2	Window Switch - Front Passenger
3	S605
4	Speaker - RF Door Tweeter
5	C304

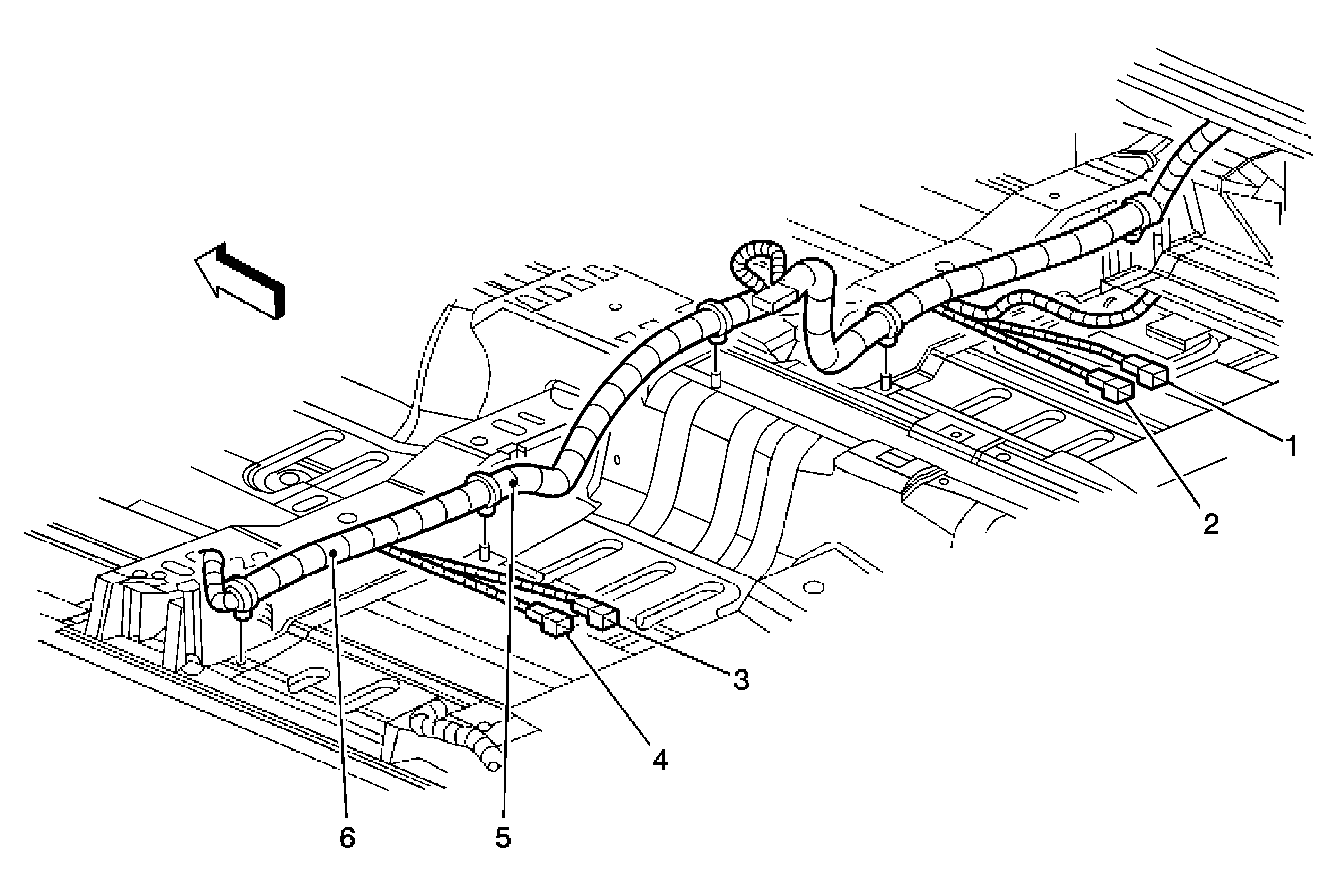

Fig 25: Front of the Passenger Compartment Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C315
2	C313
3	C311
4	C316
5	S314
6	S315

Fig 26: Under the Driver Seat Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Adjuster Motor Assembly - Driver Connector
2	Seat Belt Switch, Connector
3	Front Vertical Motor
4	Horizontal Motor
5	Heated Seat Element - Driver Back
6	C311
7	Hinge
8	C316
9	C312

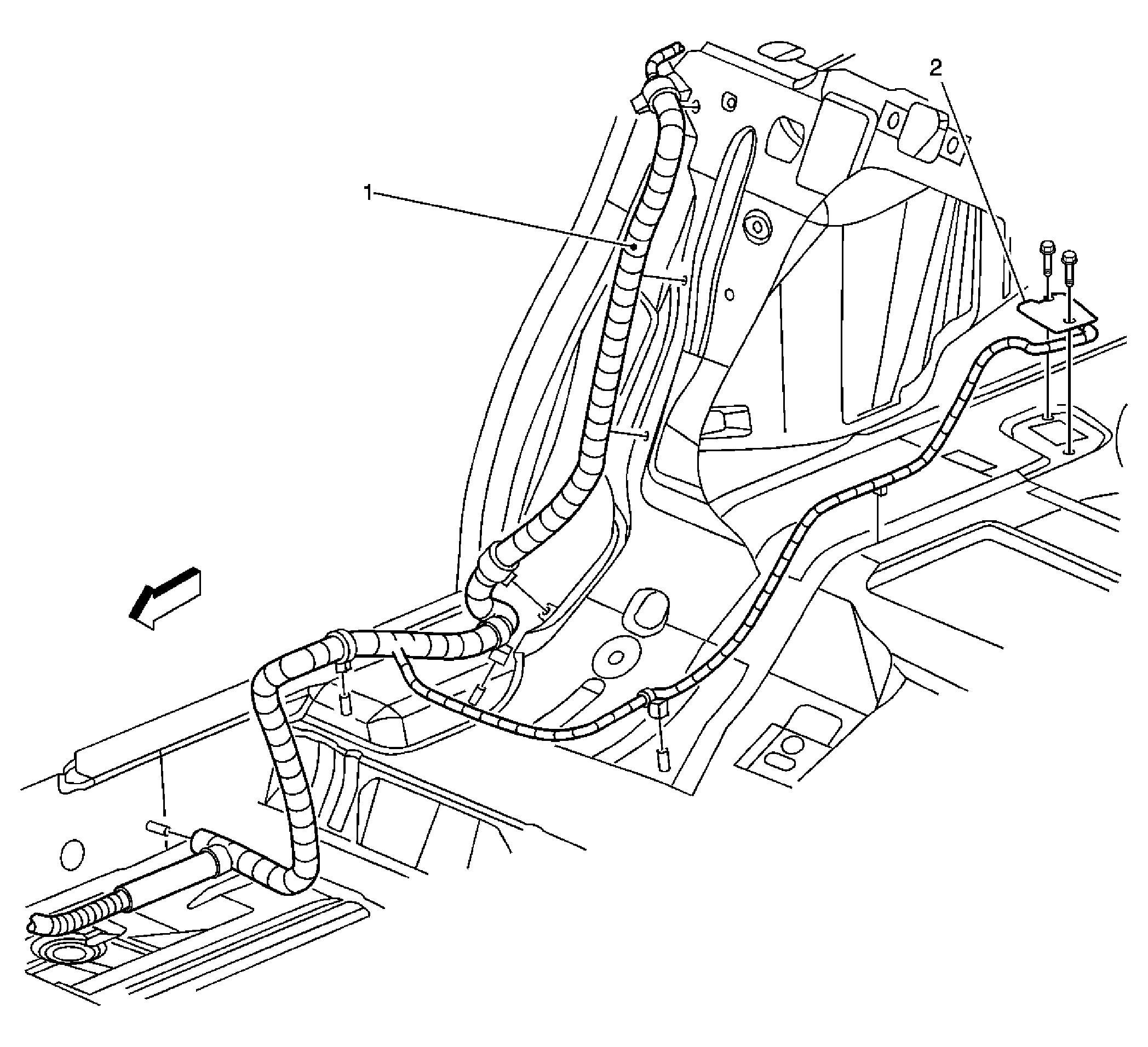

Fig 27: Rear of the Passenger Compartment Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	S407
2	C405

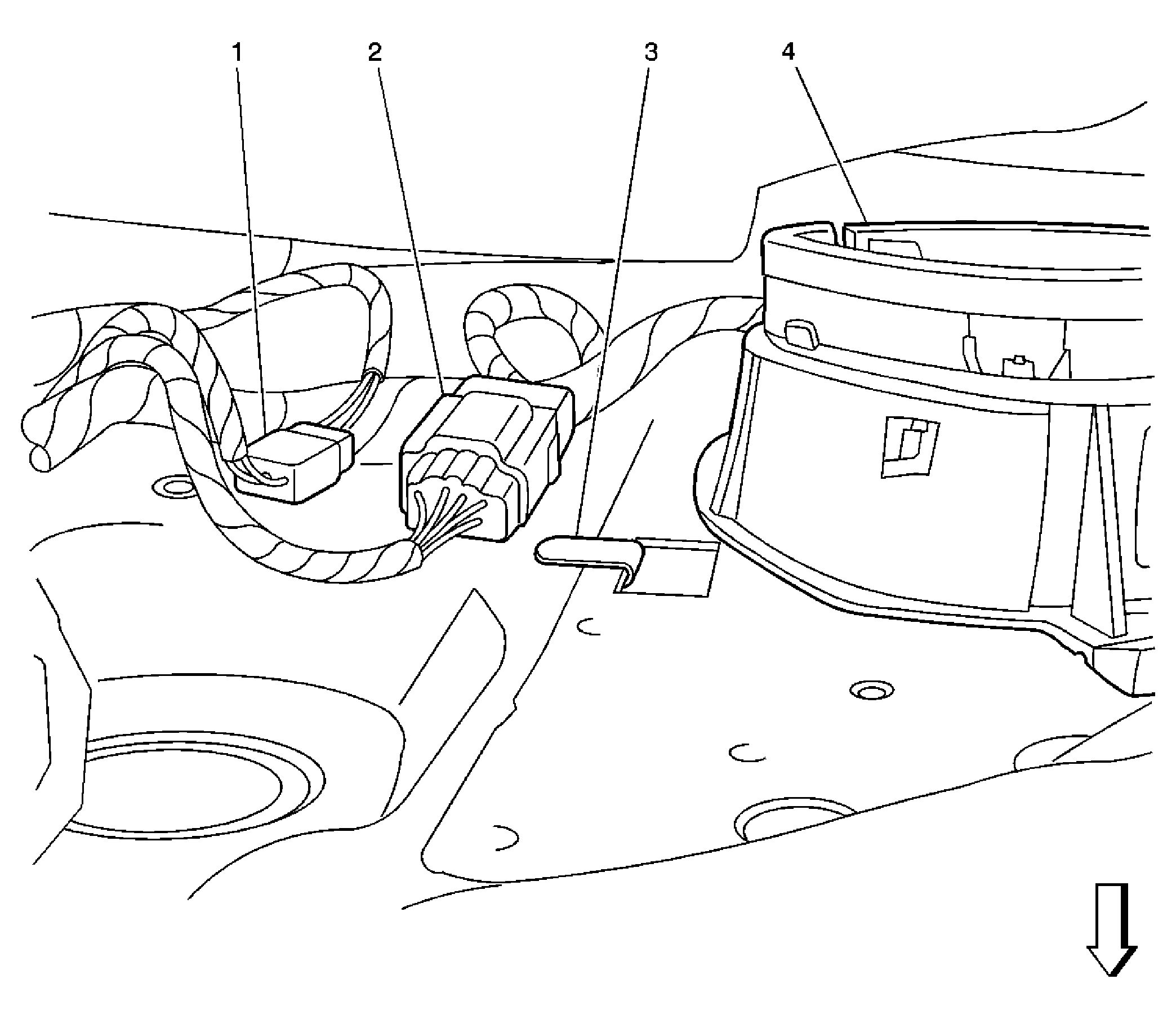

Fig 28: Top Right Side of Rear Package Shelf Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - RR
2	C400
3	C390
4	C398

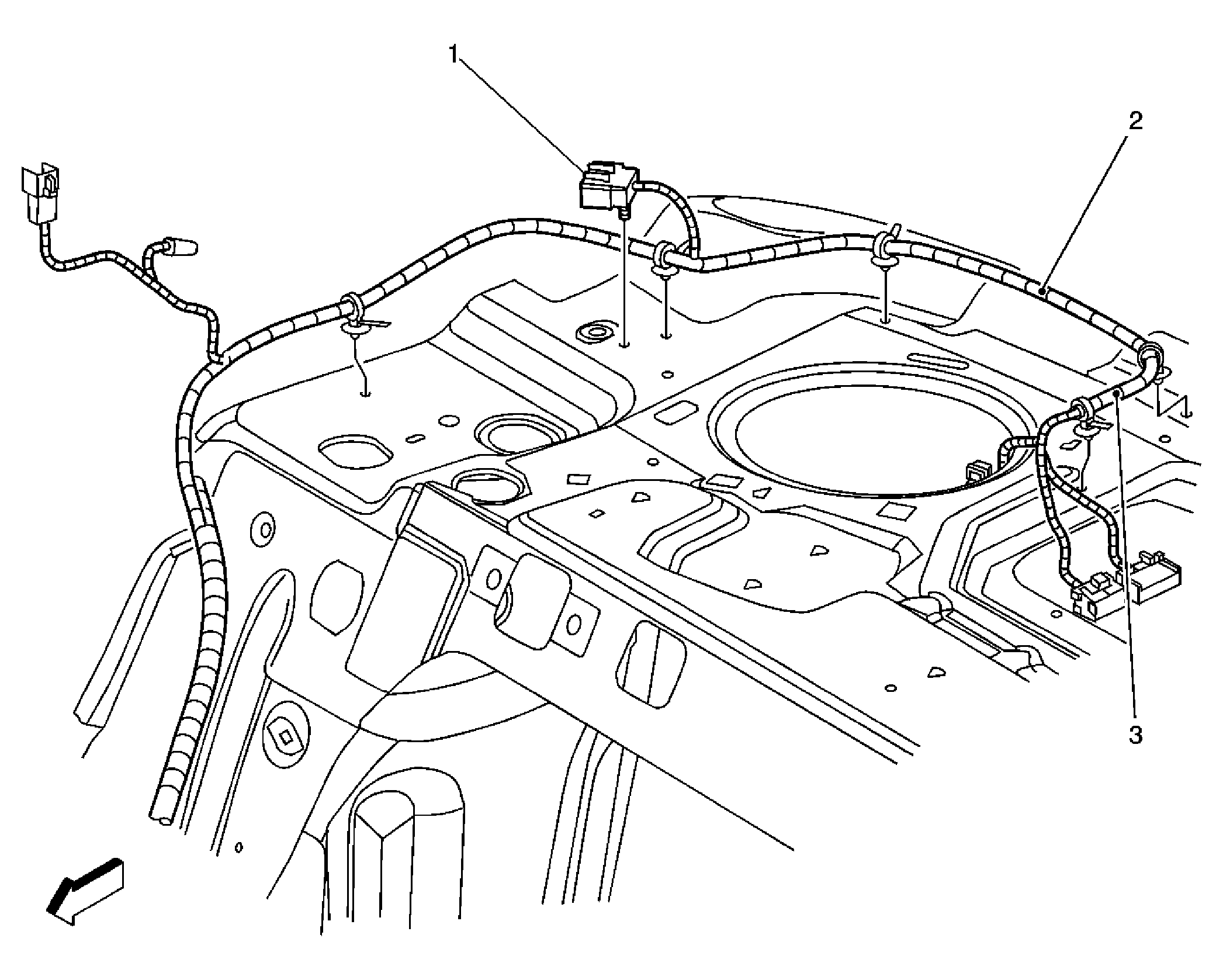

Fig 29: Right Side of the Rear Window Shelf Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C390
2	S318
3	S317

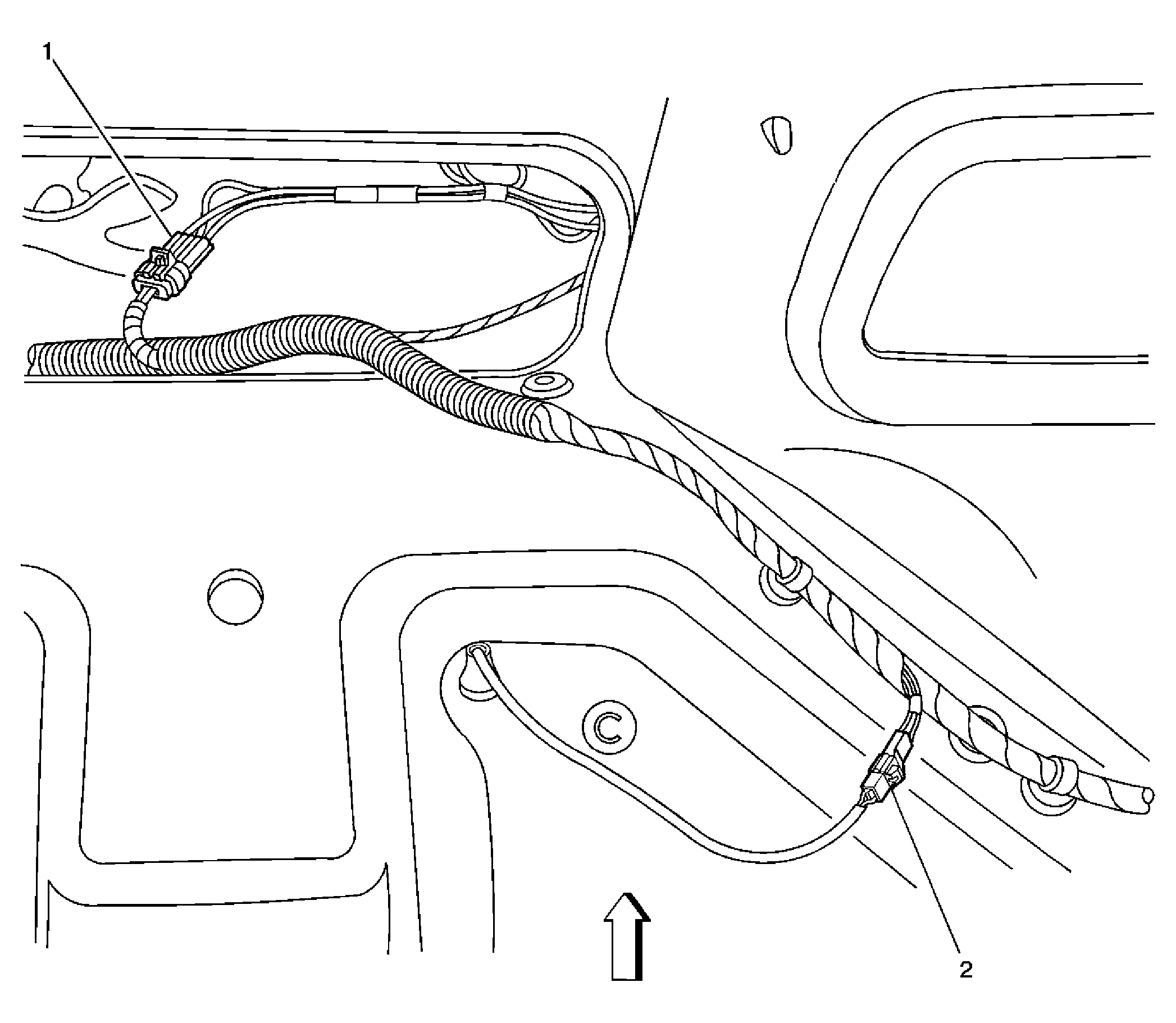

Fig 30: Inside Rear Deck Lid Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C404
2	C403

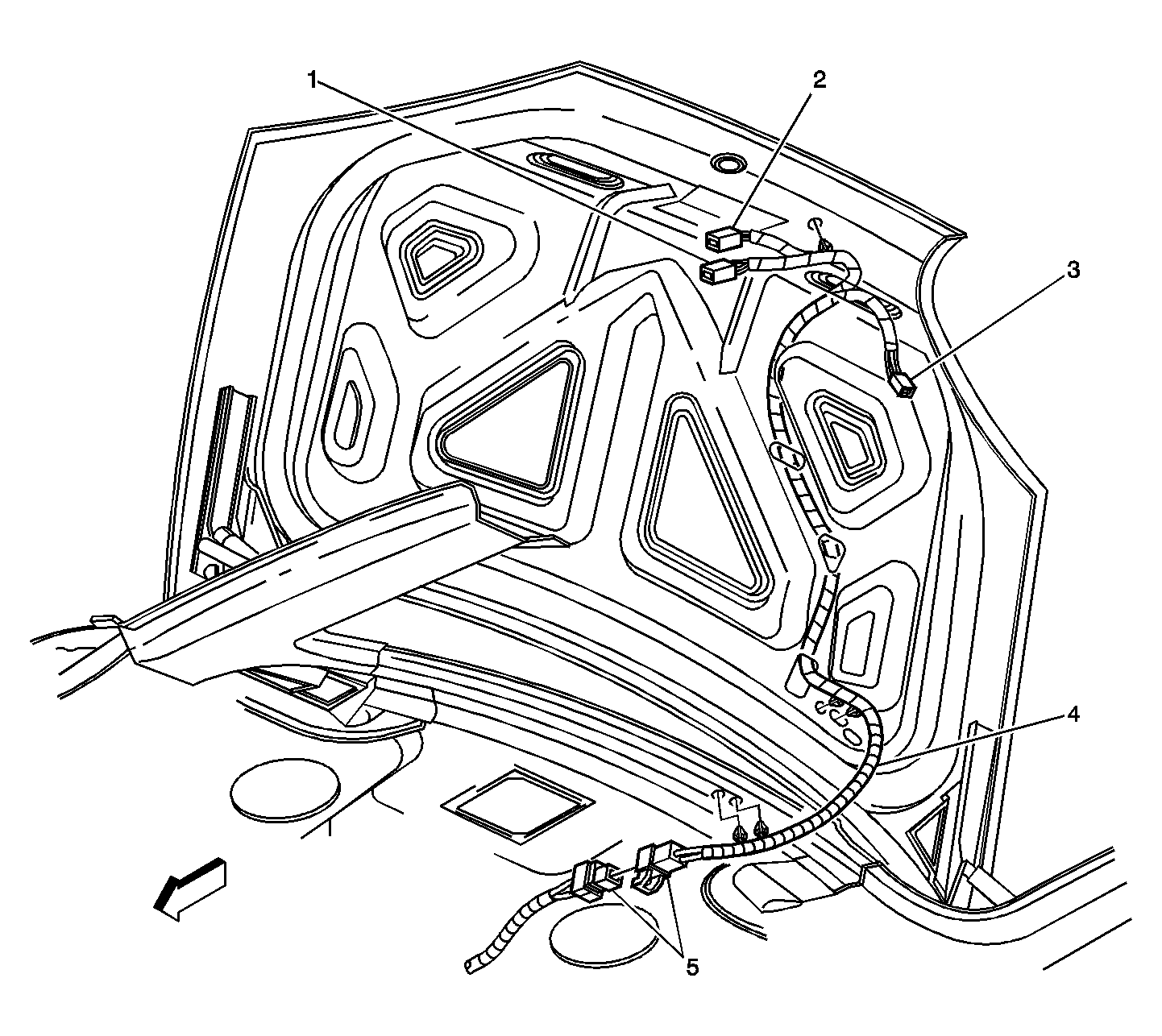

Fig 31: Inside Rear Compartment Lid Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Compartment Lid Latch, Connector
2	C403
3	Rear Compartment Lid Ajar Switch, Connector
4	Rear Deck Lid Harness
5	C400

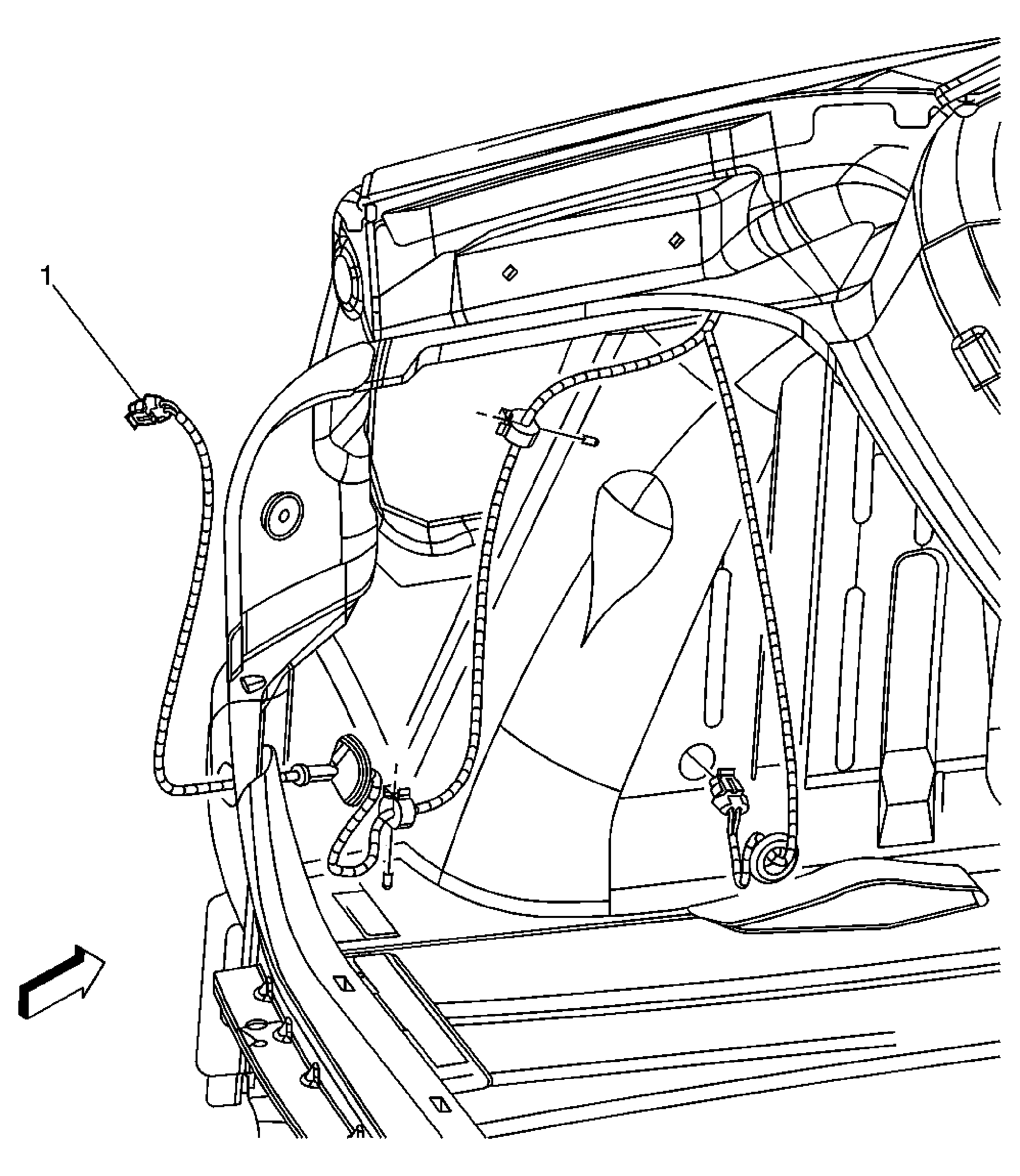

Fig 32: Left Side of the Luggage Compartment Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C401

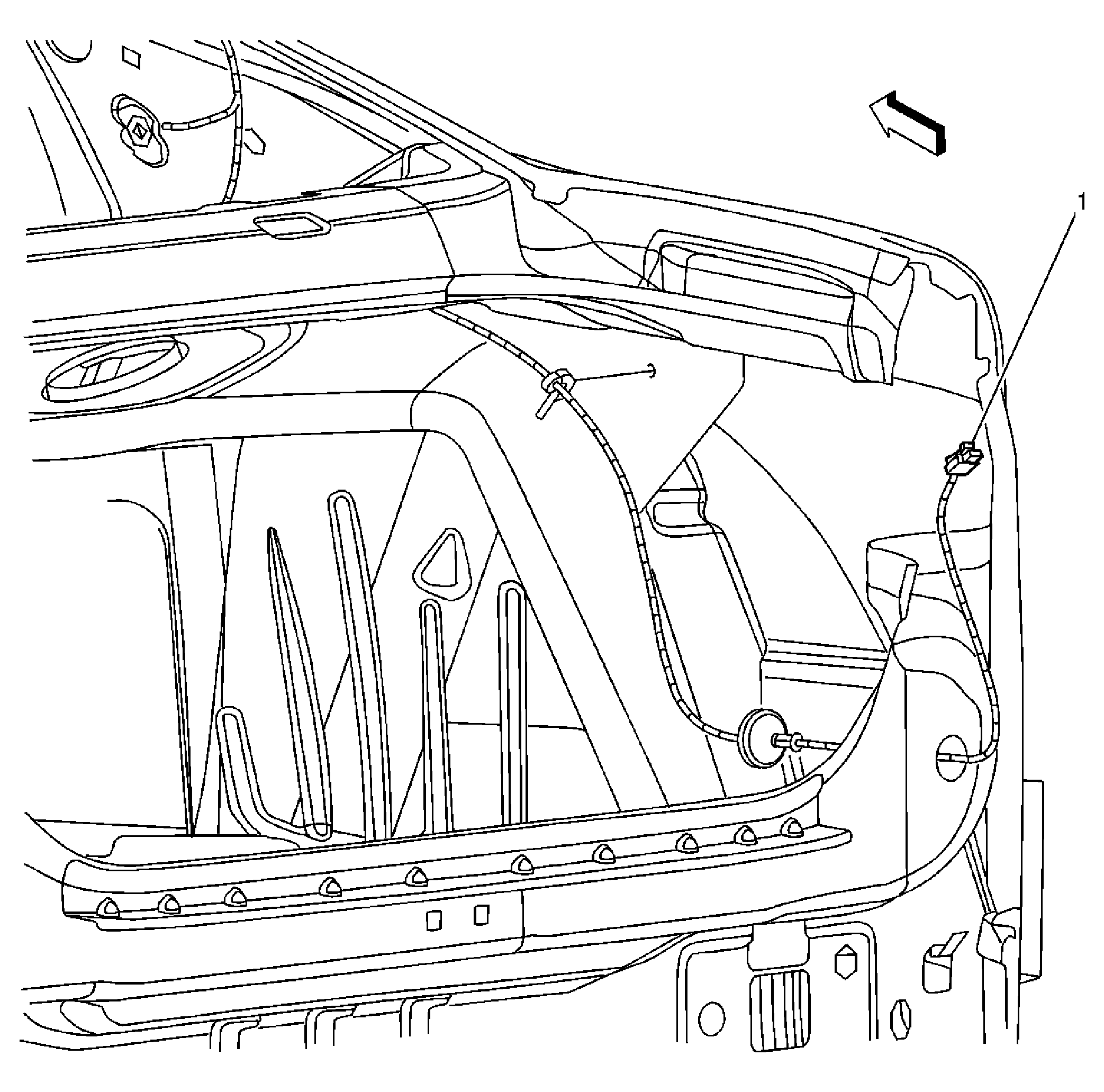

Fig 33: Right Side of the Luggage Compartment Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C402
