Installation Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Monte Carlo and 2004 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the center support bracket to the hood latch center support and to the upper support.
  2. Install the bolts to the hood latch center support and hand tighten.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the bolt to the front bumper fascia upper support.

    Tighten:

    1. Tighten the bolt to the front bumper fascia upper support to 10 N.m (89 lb in).
    2. Tighten the bolts to the hood latch center support to 10 N.m (89 lb in).

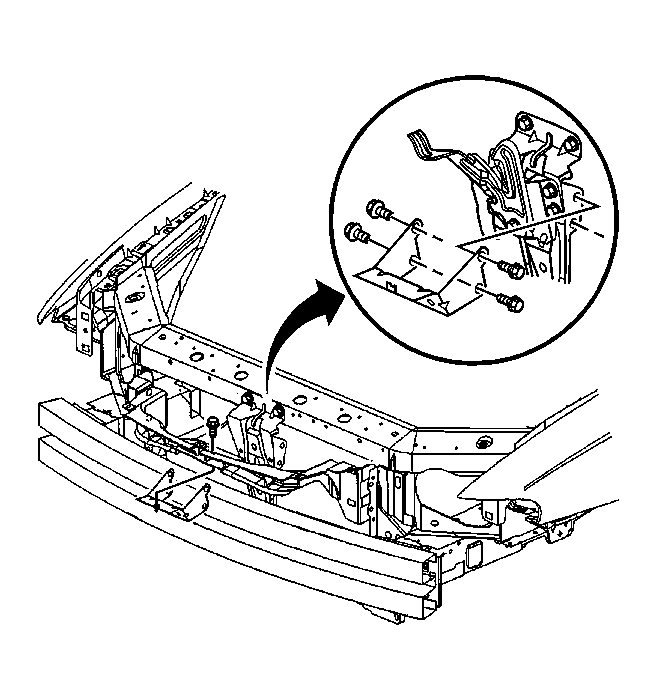

    4. Fig 1: Fascia Support Bracket
    GM457296Courtesy of GENERAL MOTORS CORP.
  4. Install the upper radiator air baffle. Refer to Radiator Air Baffle and Deflector Replacement - Upper in Engine Cooling.
  5. Close the hood.
