Installation Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Monte Carlo and 2004 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

Install the fascia extension onto the fascia.

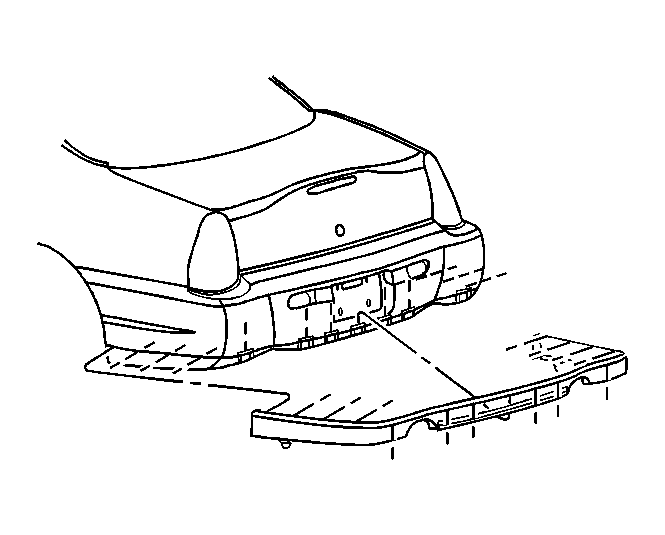

Fig 1: Fascia Extension

GM643498

Courtesy of GENERAL MOTORS CORP.

Install the spring clips through the tabs in the fascia extension.

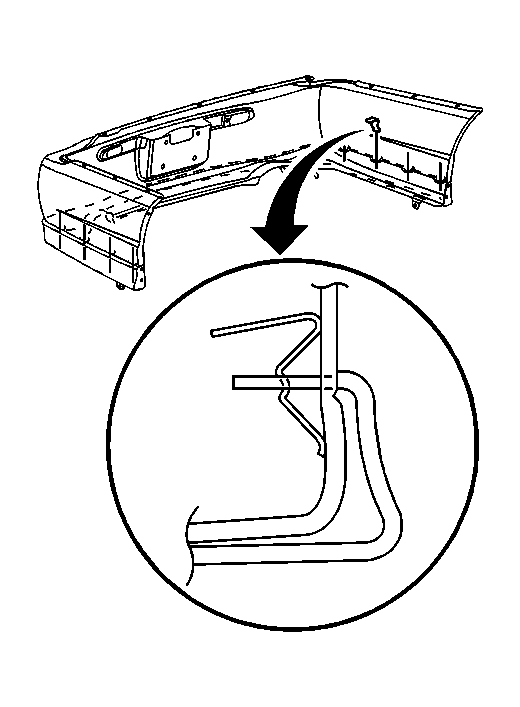

Fig 2: Fascia Extension Spring Clips

GM643501

Courtesy of GENERAL MOTORS CORP.

Using new plastic rivets, install the plastic rivets to the lower rear end of the rear fascia extension.

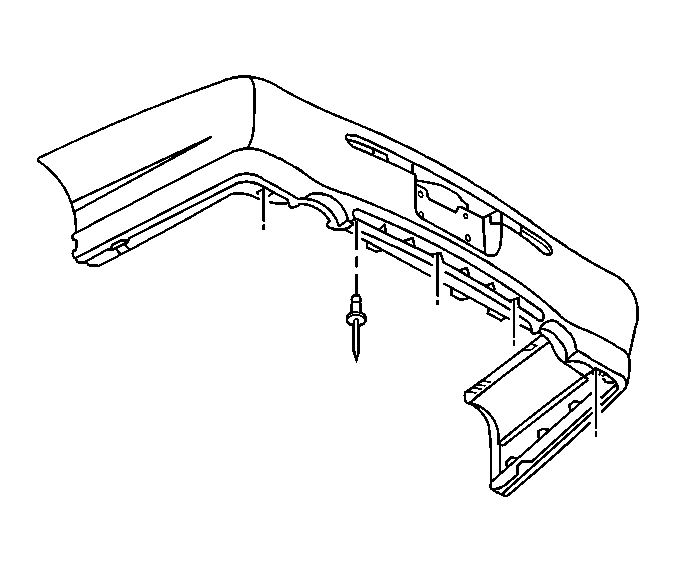

Fig 3: Lower Rear Rivit

GM739303

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the rear bumper fascia extension lower screw to the lower rear fascia and splash shield.
Tighten: Tighten the rear bumper fascia extension lower screw to 2 N.m (18 lb in).

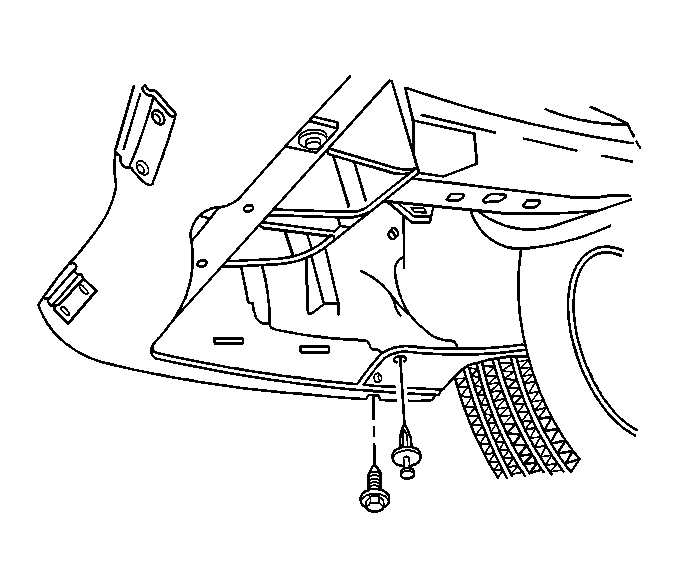

Fig 4: Rear Bumper Fascia Extension Lower Screw

GM739305

Courtesy of GENERAL MOTORS CORP.

Using a new plastic rivet, install the plastic rivet to the rear fascia extension corner to the splash shield.

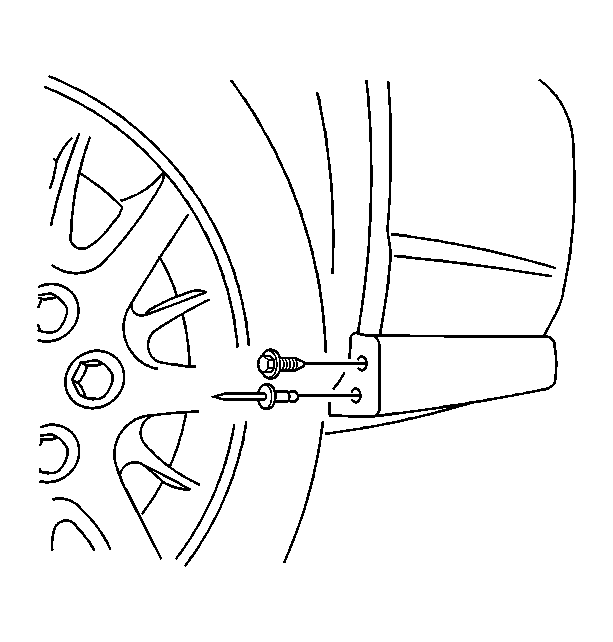

Fig 5: Rear Fascia Extension Screw & Plastic Rivit

GM738841

Courtesy of GENERAL MOTORS CORP.

Install the rear bumper fascia extension screw to the rear fascia extension corner to the splash shield.
Tighten: Tighten the rear bumper fascia extension screw to 2 N.m (18 lb in).
Install the rear wheels and tires. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
Lower the vehicle.
