SIR Schematics

WARNING: This page is about a different car, the 2004 Chevrolet Monte Carlo and 2004 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

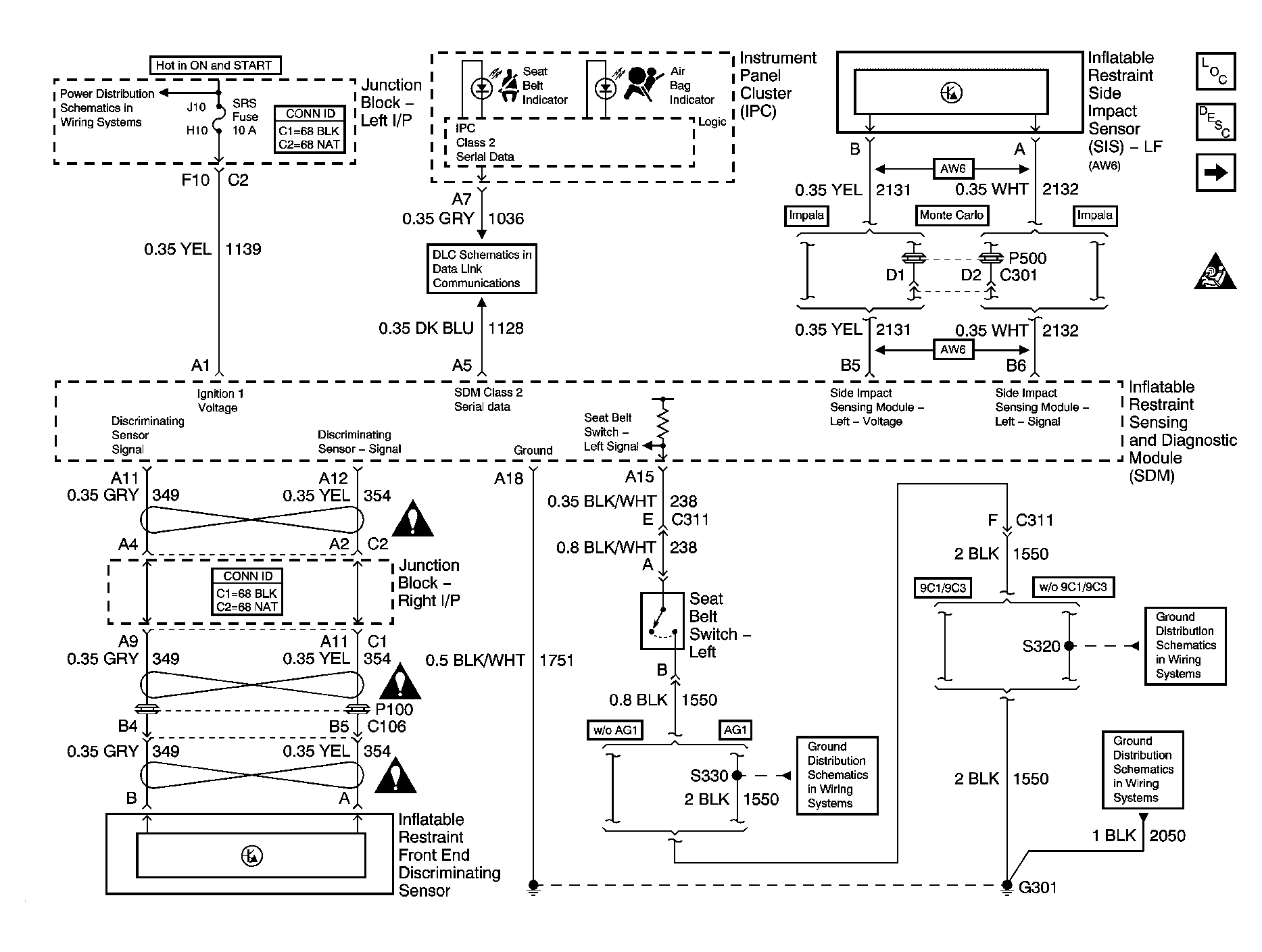

Fig 1: Data Link, Ground, Power, Seat Belt Switch, and Sensors Schematic
GM1326412Courtesy of GENERAL MOTORS CORP.

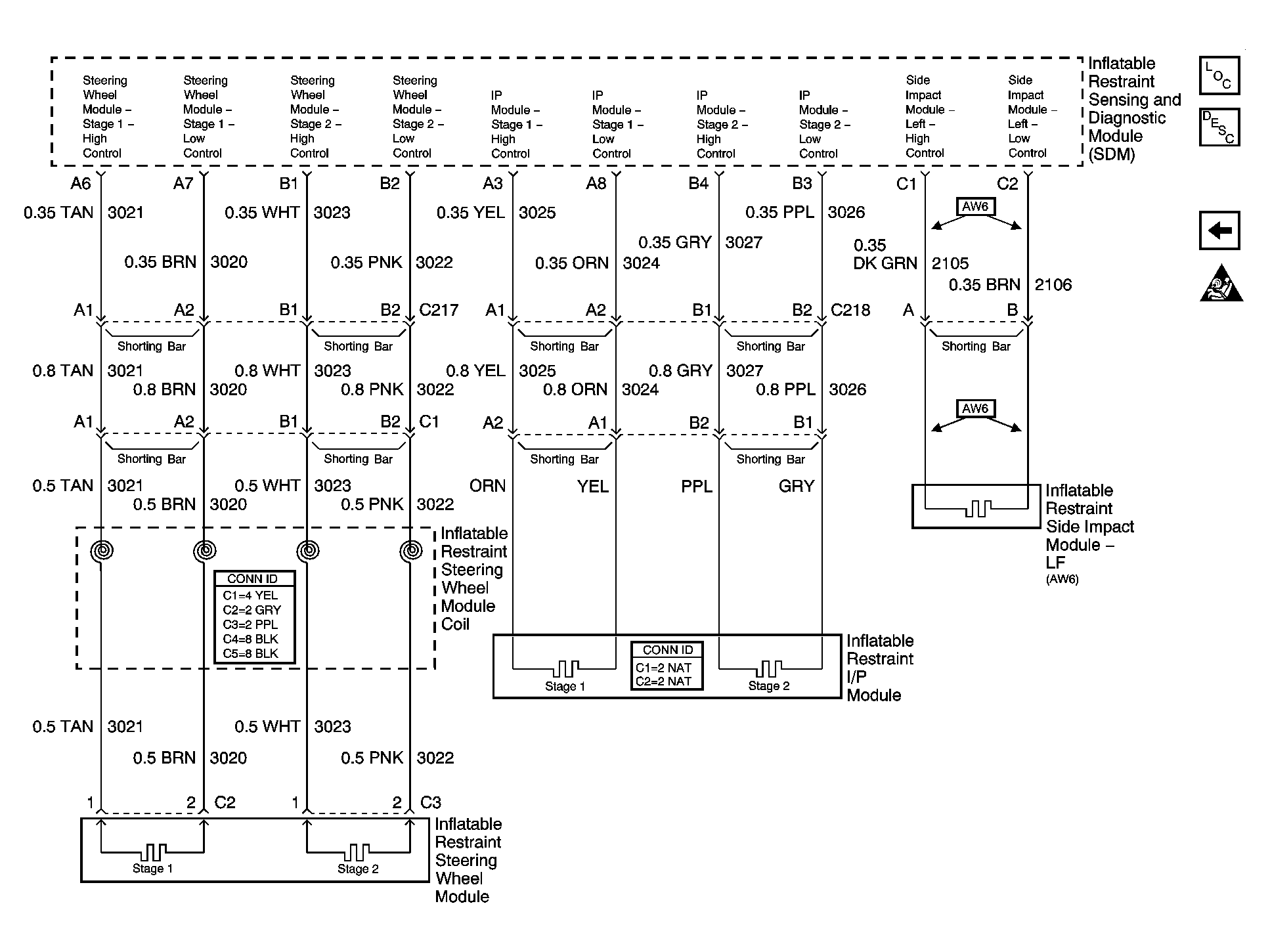

Fig 2: Deployment Loops Schematic
GM1350371Courtesy of GENERAL MOTORS CORP.
