Installation Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Monte Carlo and 2004 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear compartment release switch.
  2. Connect the electrical connector to the rear compartment release switch.

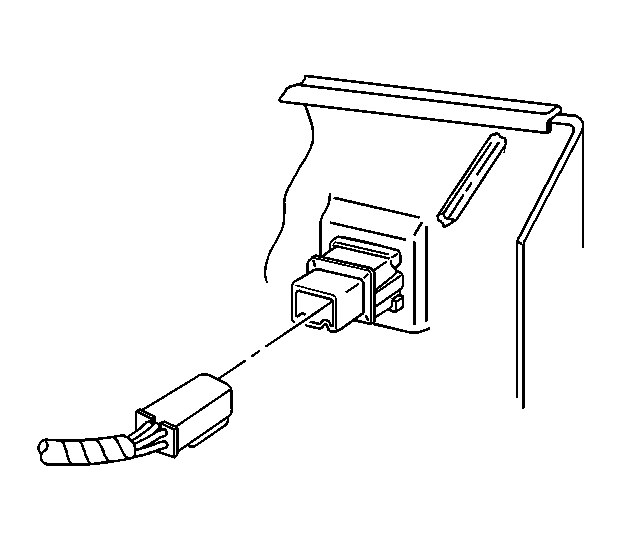

    3. Fig 1: Rear Compartment Release Switch Electrical Connector
    GM519506Courtesy of GENERAL MOTORS CORP.
  3. Align the steering column opening filler panel to the instrument panel (IP) lower trim panel. Install the steering column opening filler panel retainers to the IP lower trim panel.

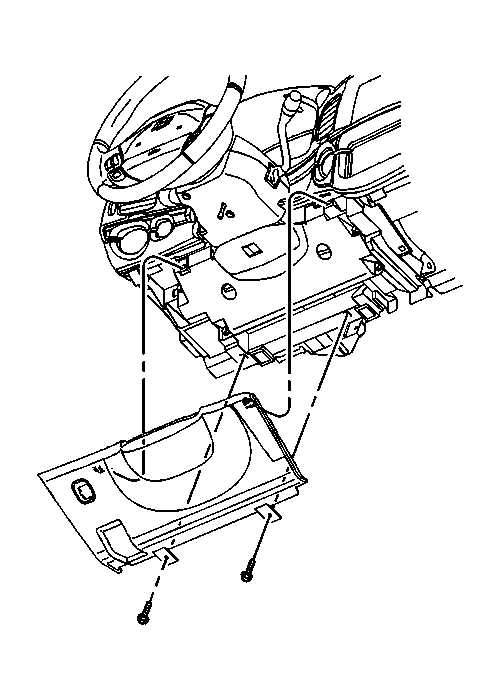

    4. Fig 2: LH Instrument Panel
    GM519517Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the steering column opening filler panel screws.

    Tighten:  Tighten the steering column opening filler panel screws to 2 N.m (18 lb in).

  5. Install the LH IP insulator tabs to the lower IP trim pad retainers.
  6. Install the LH fuse block access cover.
