Installation Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Monte Carlo and 2004 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the front seat cushion frame to the front seat adjusters.
  2. Install the bolts to the seat cushion frame to the front seat track adjusters.
    3. Fig 1: Front Seat Frame & Bolts
    GM305146Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. For split bench, install the bolts to the front seat frame to the front seat track adjusters.

    Tighten:  Tighten the bolts to the front seat frame to 25 N.m (18 lb ft).

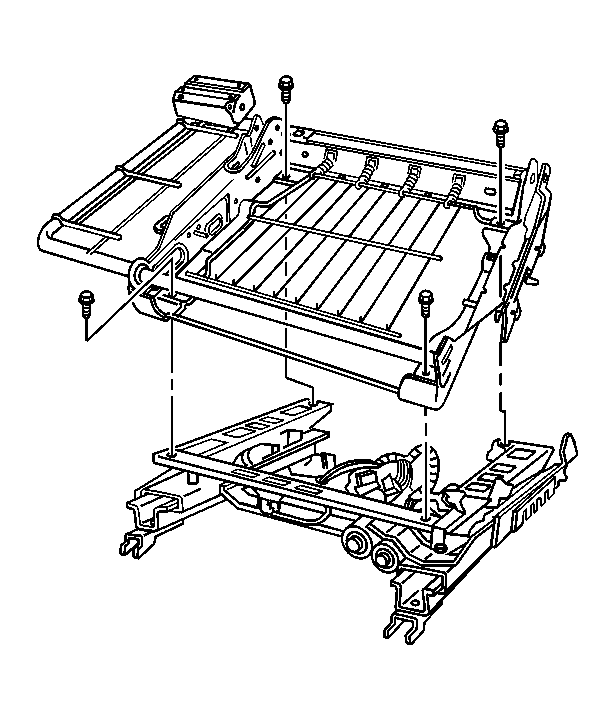

    4. Fig 2: Split Bench Front Seat Frame & Bolts
    GM521604Courtesy of GENERAL MOTORS CORP.
  4. Install the front seat recliner assembly to the front seat cushion frame. Refer to Seat Back Recliner Replacement - Front .
  5. Install the front seat cushion to the front seat cushion frame. Refer to Seat Cushion Replacement - Front .
  6. Install the front seat cushion cover to the front seat cushion. Refer to Seat Cushion Cover Replacement - Front (Bucket Seat)  or Seat Cushion Cover Replacement - Front (Split Bench) .
  7. Install the front seat back to the front seat. Refer to Seat Back Replacement - Front (Bucket Seat)  or Seat Back Replacement - Front (Split Bench) .
  8. Install the front seat to the vehicle. Refer to the following procedures:
