Installation Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Monte Carlo and 2004 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the snap-ring retainer to the base of the front seat back recliner handle.
  2. Install the front seat back recliner handle to the front seat, pressing into place until fully seated.
    3. Fig 1: Installing Snap-Ring Retainer
    GM523662Courtesy of GENERAL MOTORS CORP.

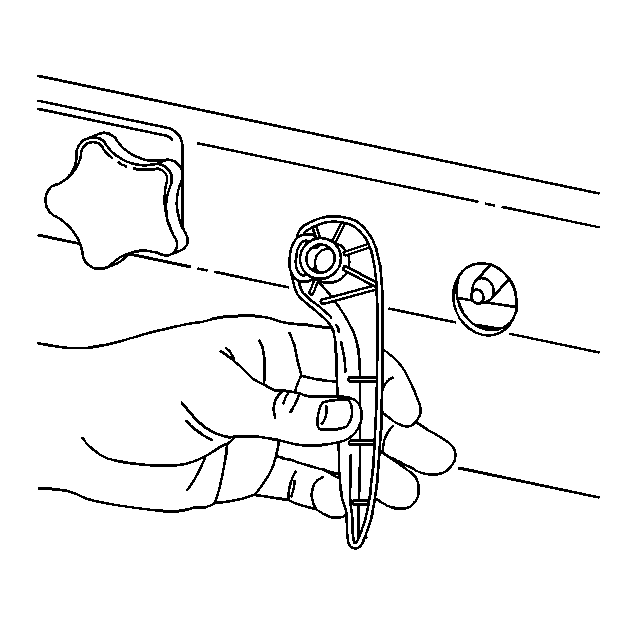

    Fig 2: Installing Front Seat Back Recliner Handle
    GM522212Courtesy of GENERAL MOTORS CORP.
