Wiper/Washer System Schematics

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

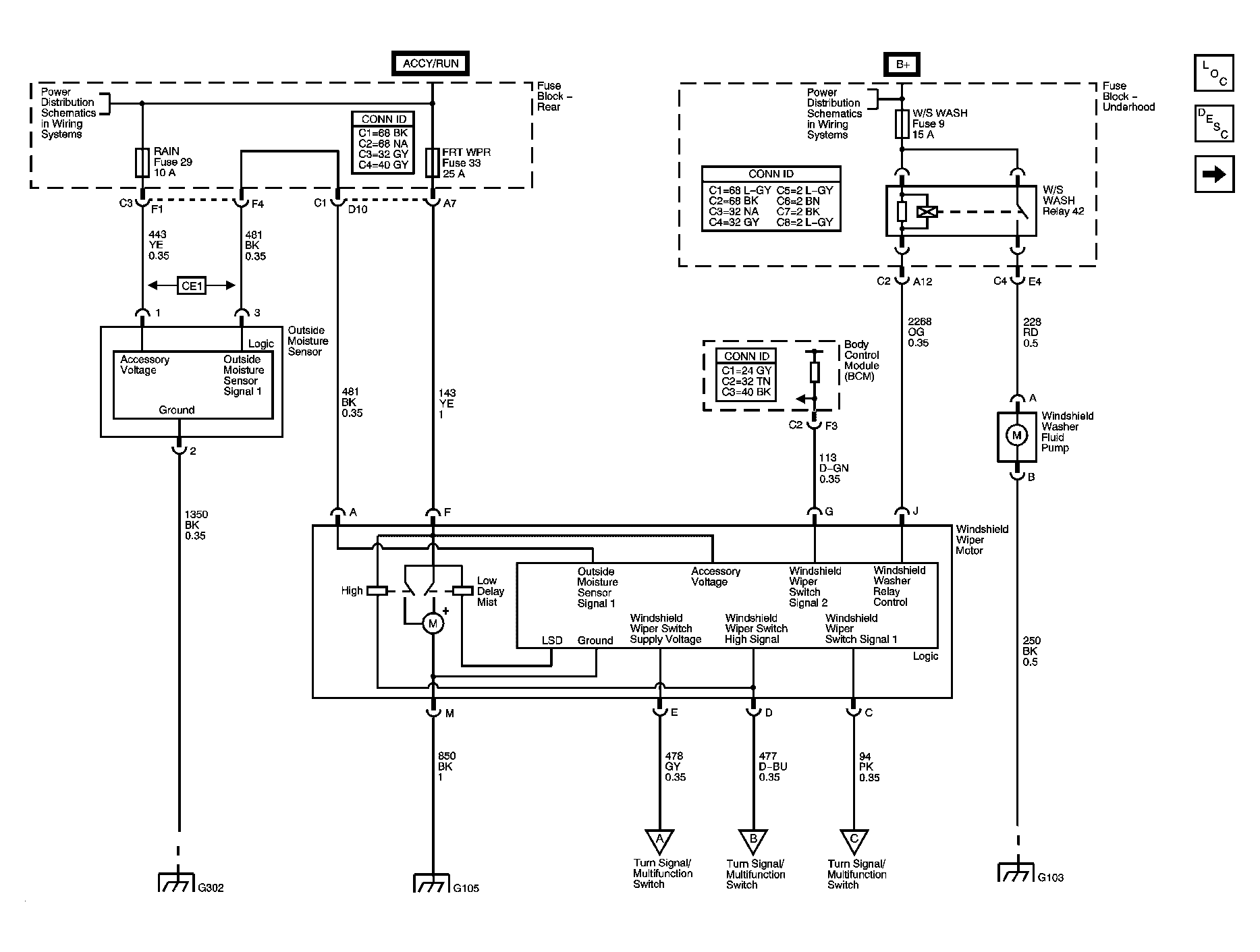

Fig 1: Outside Moisture Sensor and Front Wiper/Washer Motor

Courtesy of GENERAL MOTORS CORP.

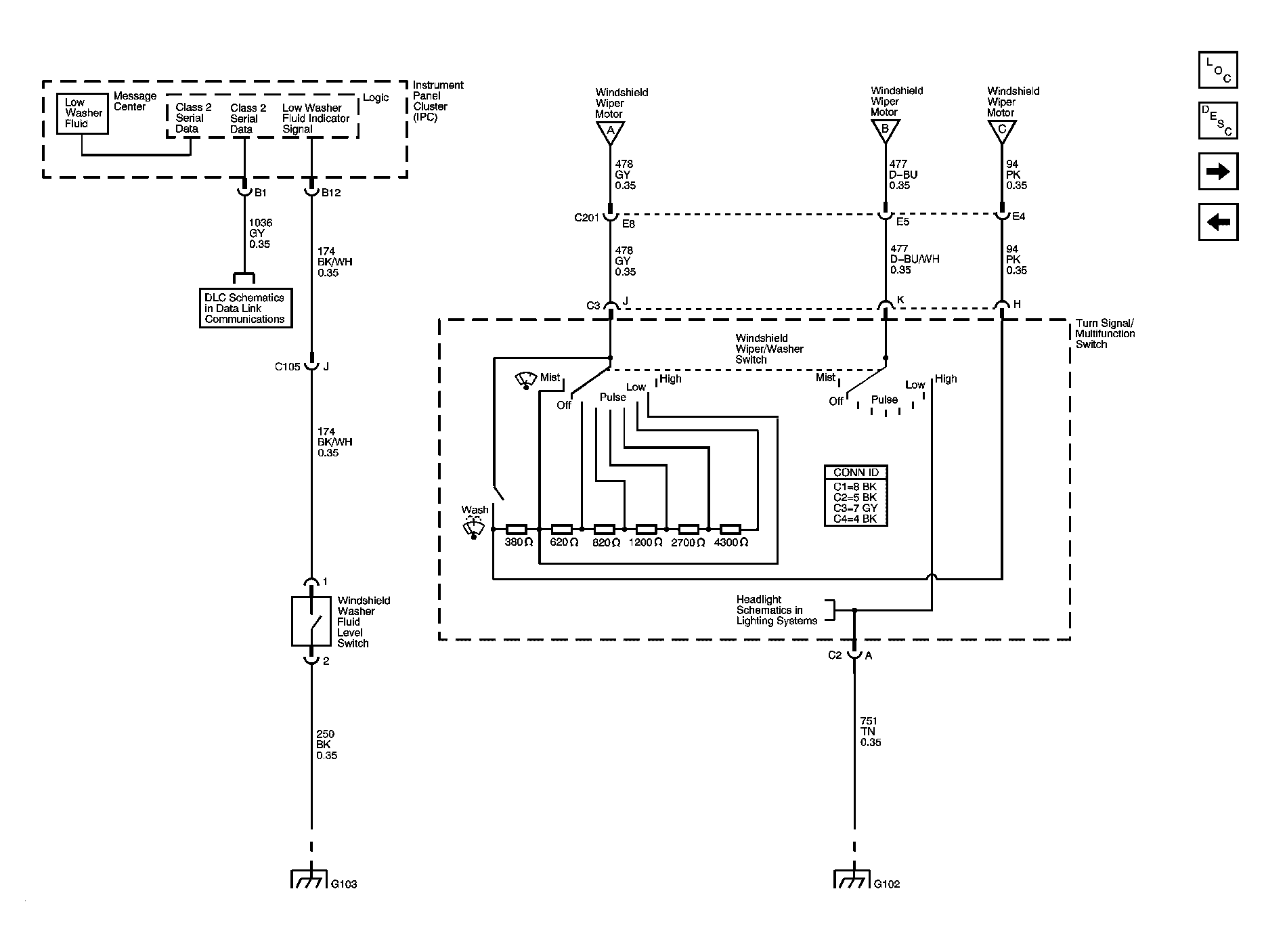

Fig 2: Wiper/Washer Switch and Washer Fluid Level Switch

Courtesy of GENERAL MOTORS CORP.

Fig 3: Headlamp Washer - CE4

Courtesy of GENERAL MOTORS CORP.

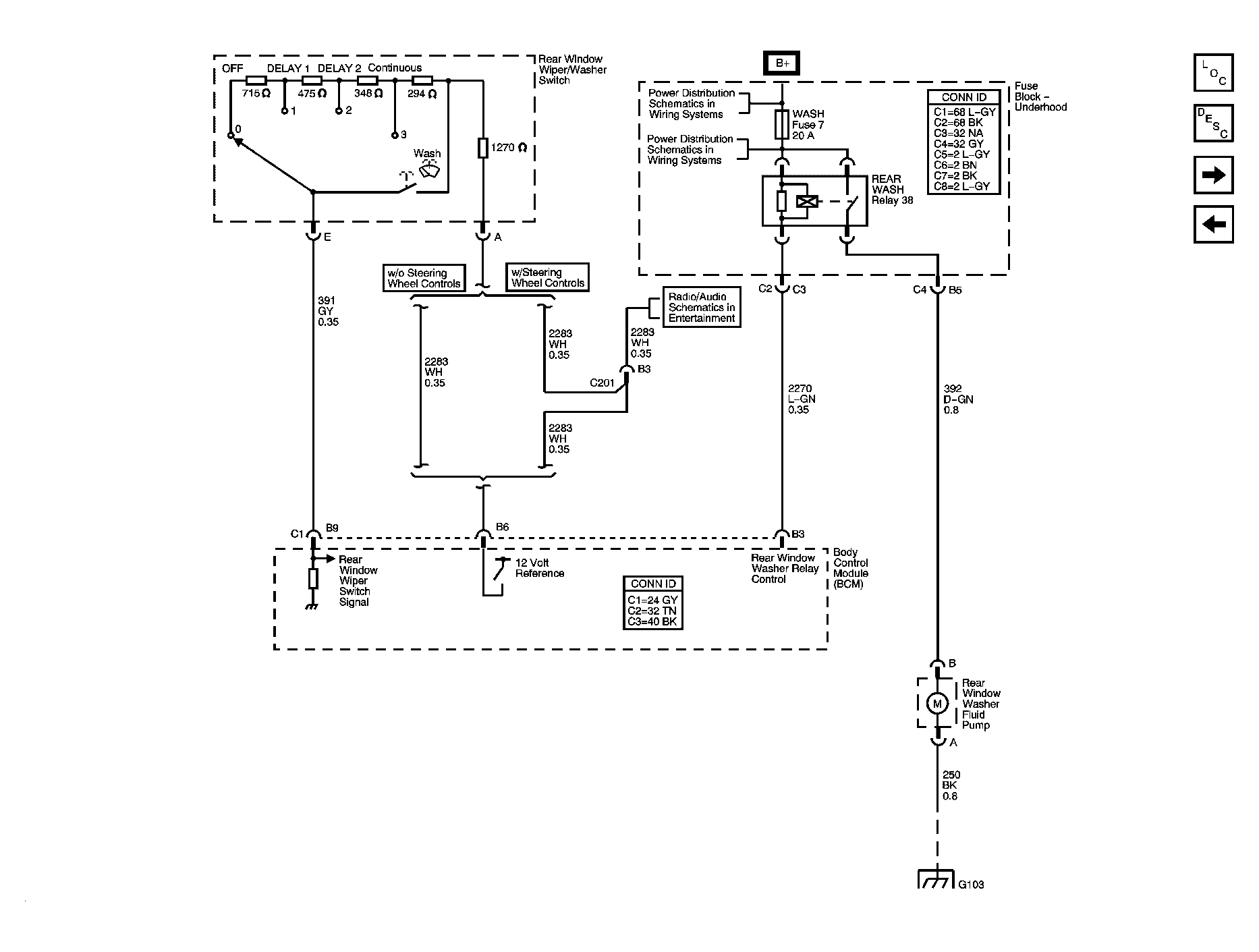

Fig 4: Rear Wiper/Washer Controls - CD6

Courtesy of GENERAL MOTORS CORP.

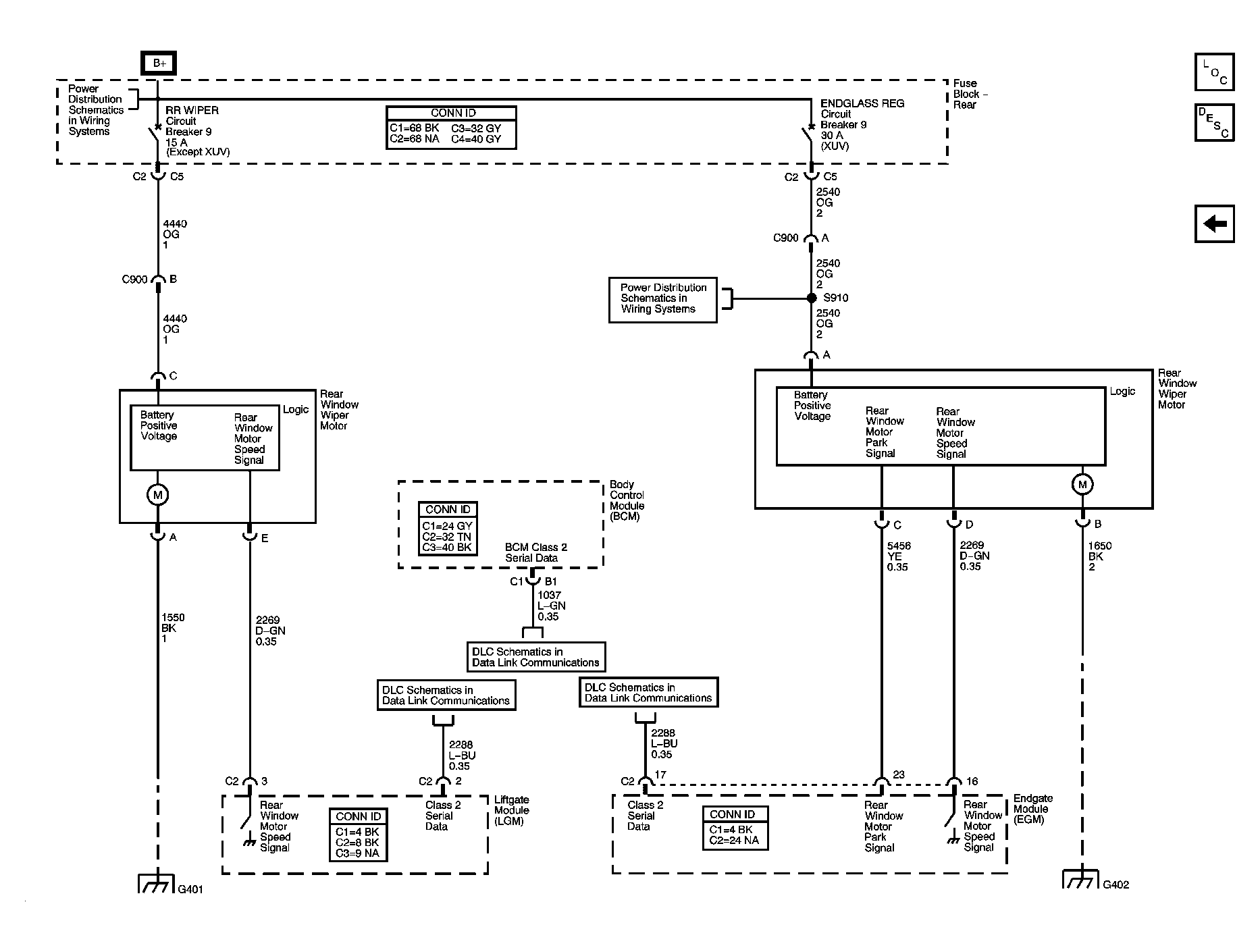

Fig 5: Rear Window Wiper Motor - CD6

Courtesy of GENERAL MOTORS CORP.
