Power Window Schematics

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

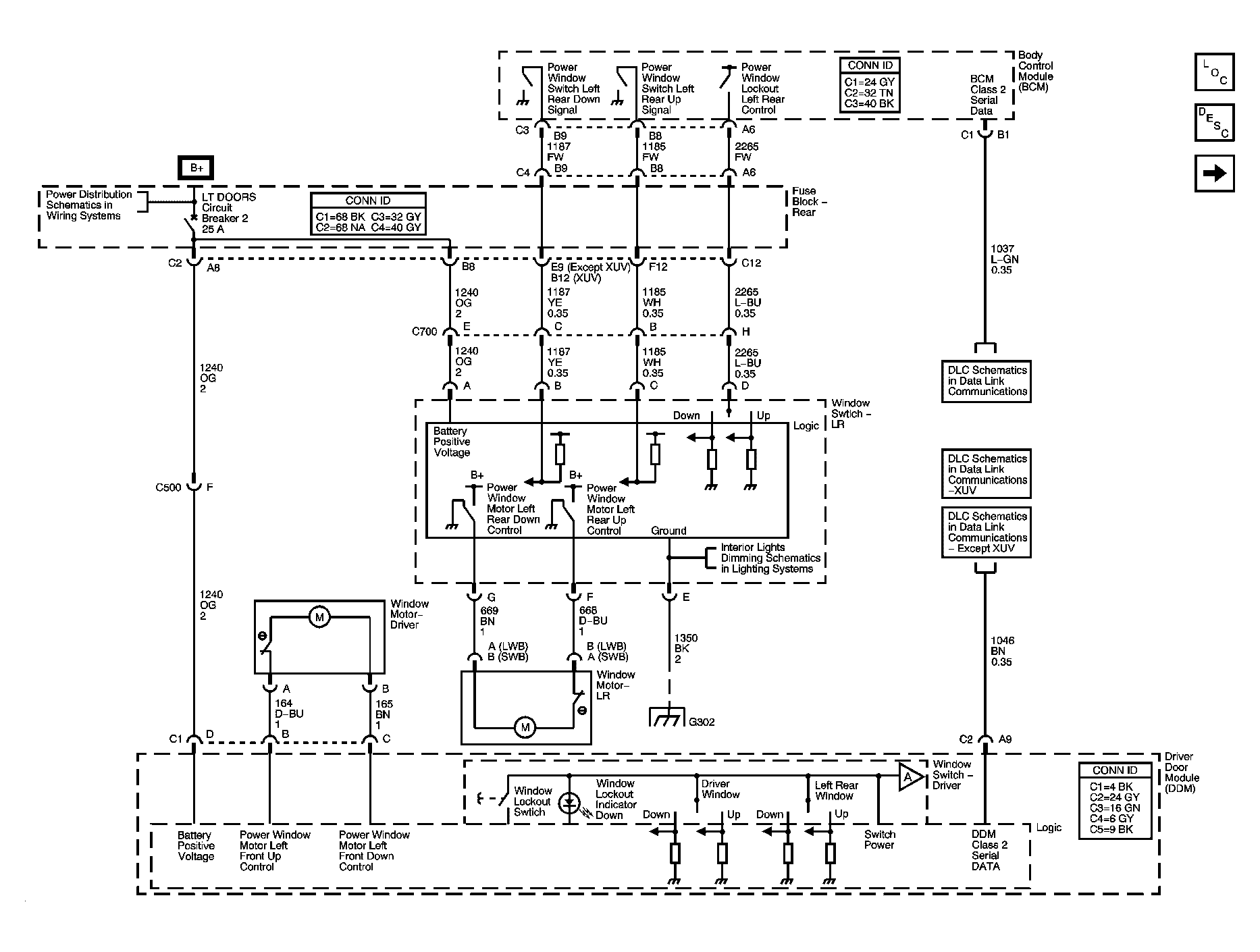

Fig 1: Left Power Window Schematic
GM1312095Courtesy of GENERAL MOTORS CORP.

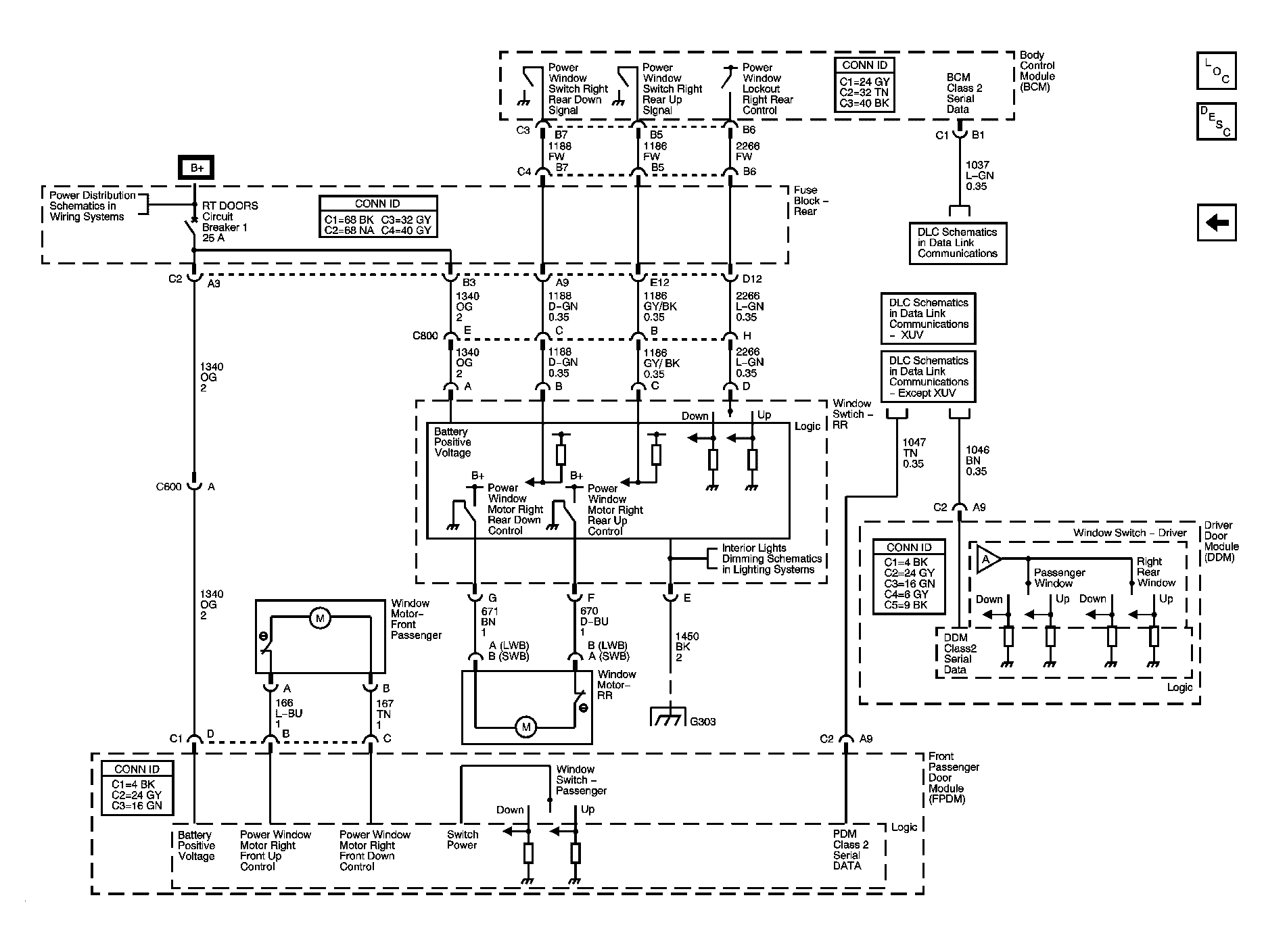

Fig 2: Right Power Window Schematic
GM1312096Courtesy of GENERAL MOTORS CORP.
