Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Position the battery positive cable in the engine compartment.

Fig 1: Rear Of Generator (Alternator) View

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the battery positive cable to the generator and secure with the nut (1).
Tighten: Tighten the nut to 9 N.m (80 lb in).

Fig 2: View Of Starter & Related Components

Courtesy of GENERAL MOTORS CORP.

Connect the positive cable to the starter and secure the positive cable with the nut (1).
Tighten: Tighten the nut to 9 N.m (80 lb in).
Install the battery positive cable harness to the fir-tree retainer on the PCM bracket.
Install the battery positive cable into the conduit.
Connect the battery cable conduit to the conduit retaining clip.

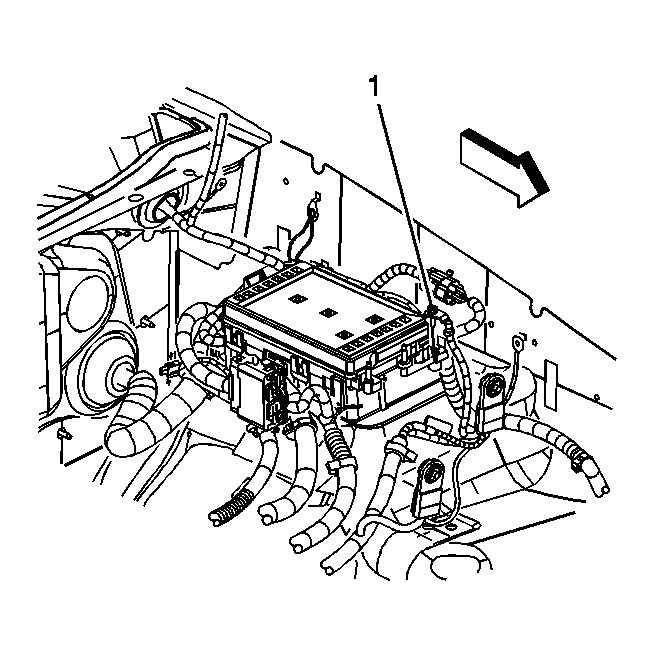

Fig 3: View Of Positive Cable Lead At Junction Block

Courtesy of GENERAL MOTORS CORP.

Connect the positive cable to the junction block and secure the positive cable with the bolt (1).
Tighten: Tighten the bolt to 10 N.m (89 lb in).

Fig 4: Identifying Battery Cable Components

Courtesy of GENERAL MOTORS CORP.

Connect the battery positive cable (4) to the positive battery post.
Tighten: Tighten the battery positive bolt to 15 N.m (11 lb ft).
Connect the battery negative cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .
