Home >> Pontiac >> 2004 >> Aztek Base, AWD >> Repair and Diagnosis >> Electrical >> Horns >> Horn System >> Schematic and Routing Diagrams >> Horns Schematics

Horns Schematics

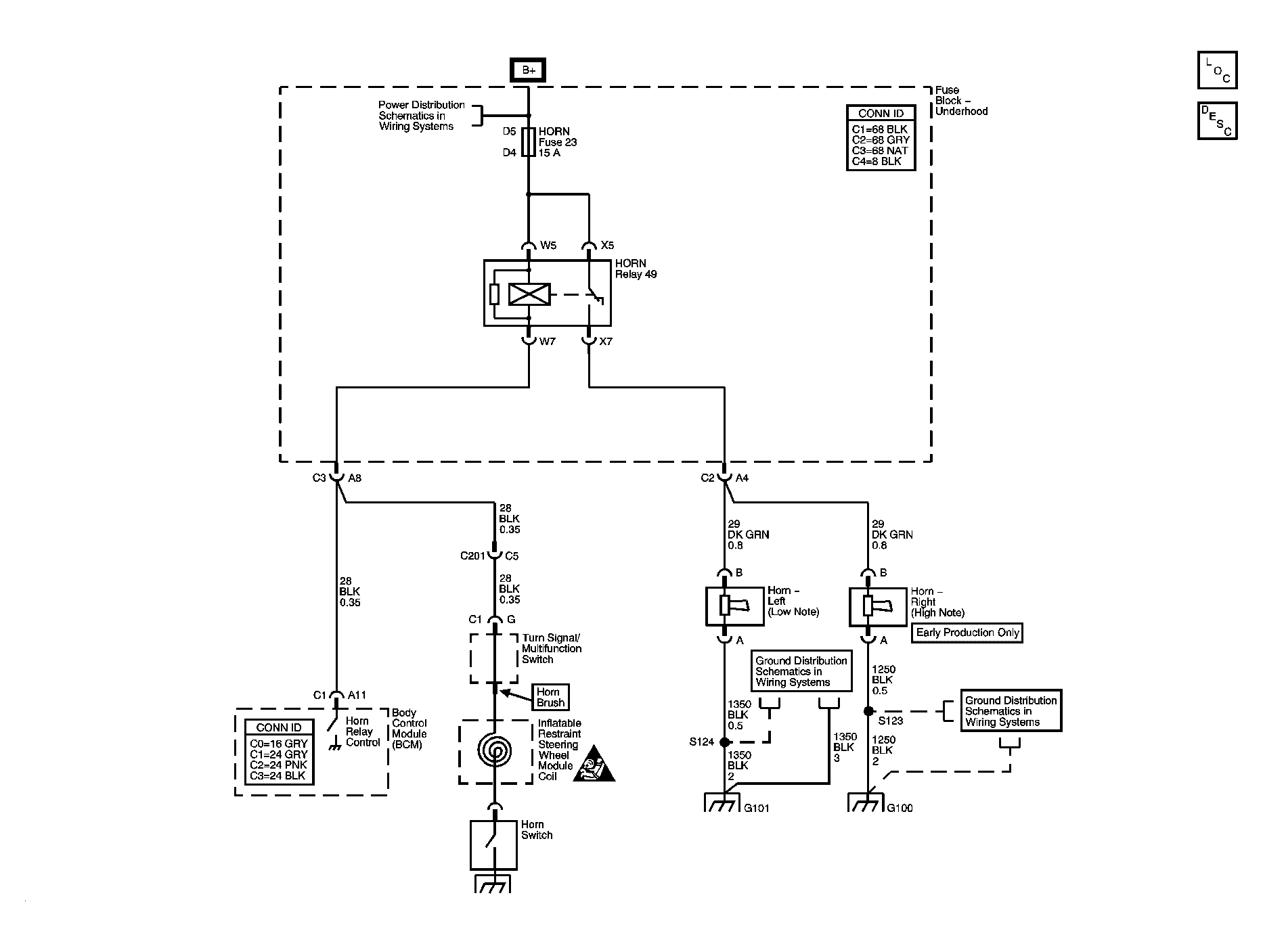

Fig 1: Horns Schematics

GM1407281

Courtesy of GENERAL MOTORS CORP.
