Rear Axle Component Views

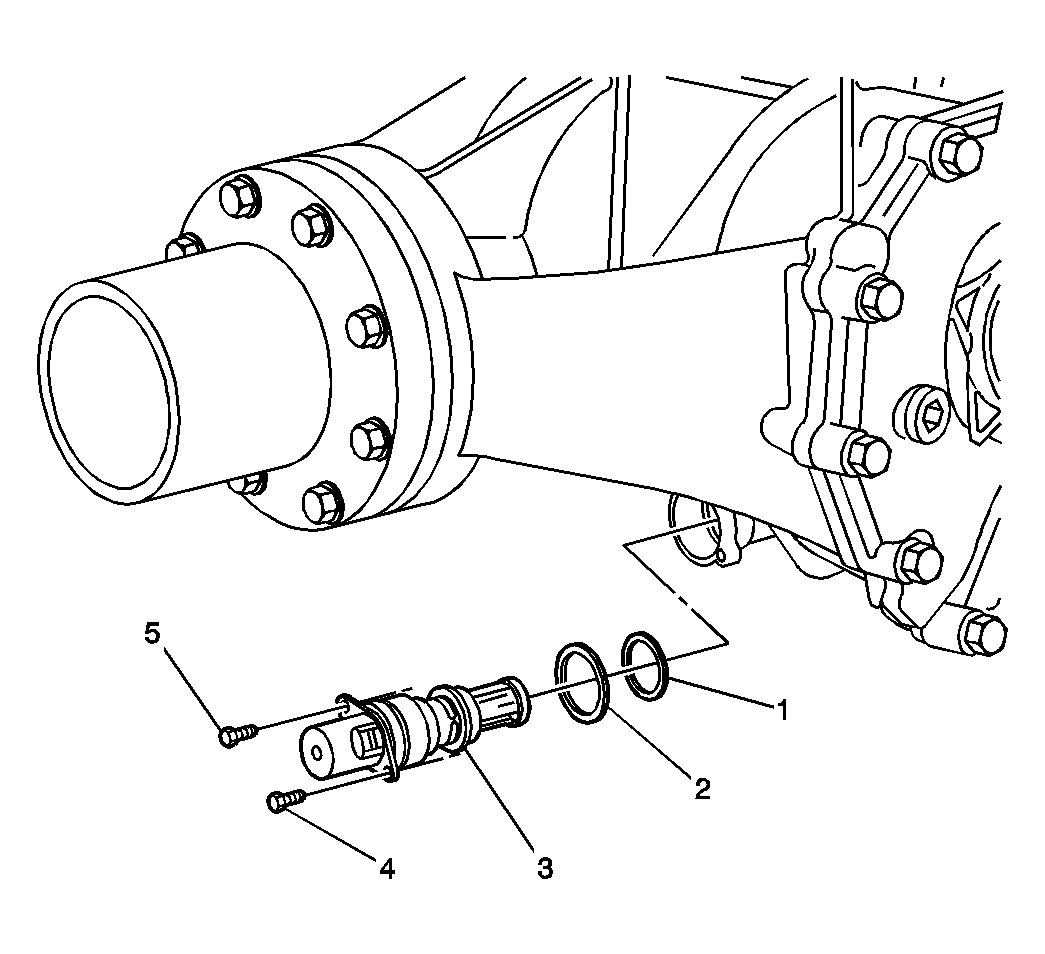

Fig 1: Differential Clutch Pump Actuator Check Valve
GM864130Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 O-ring
2 O-ring
3 Differential Clutch Pump Actuator Check Valve
4 Mounting Bolt
5 Mounting Bolt
