Removal Procedure

  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure (LA1) or Battery Negative Cable Disconnect/Connect Procedure (LY7) in Engine Electrical.
  2. Remove the front door trim panel. Refer to Trim Panel Replacement - Side Front Door (Aztek)  or Trim Panel Replacement - Side Front Door (Rendezvous) .
  3. Remove the front door water deflector. Refer to Water Deflector Replacement - Front Door
  4. Remove the front door rubber conduit from the front door. Refer to Rubber Conduit Replacement - Front Door .
  5. Disconnect the front door wiring harness connectors from all the accessories.

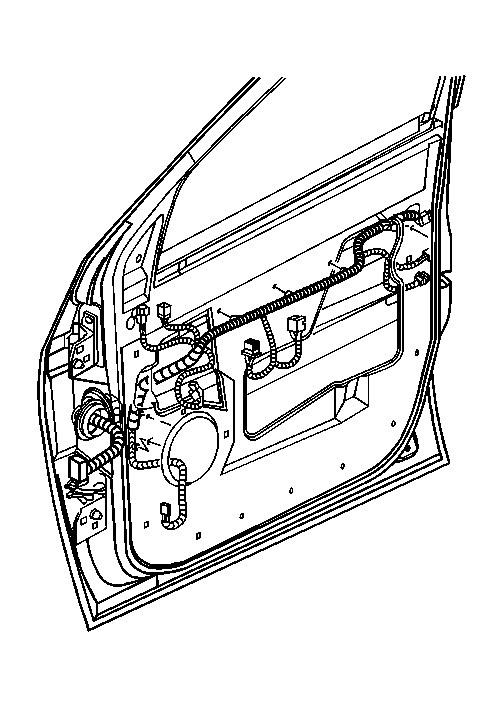

    Fig 1: View Of Front Door Wiring Harness
    GM621728Courtesy of GENERAL MOTORS CORP.
  6. Disconnect the front door wiring harness rosebud retainers from the inner front door panel.
  7. Remove the front door wiring harness from the front door.
