Removal Procedure

  1. Remove the power window switch. Refer to Power Window Switch Replacement - Rear Door (Aztek)  or Power Window Switch Replacement - Rear Door (Rendezvous) .
  2. Remove the power door lock switch (if equipped). Refer to Power Door Lock Switch Replacement (Aztek)  or Power Door Lock Switch Replacement (Rendezvous) .
  3. Remove the screws from the rear door trim panel.
    Fig 1: Locating Rear Door Trim Panel Screws (Aztek)
    GM621721Courtesy of GENERAL MOTORS CORP.
  4. Remove the rear door trim panel using J 38778  .
  5. Disconnect and reroute any electrical harness or connectors.
  6. Remove the rear door trim panel from the vehicle.

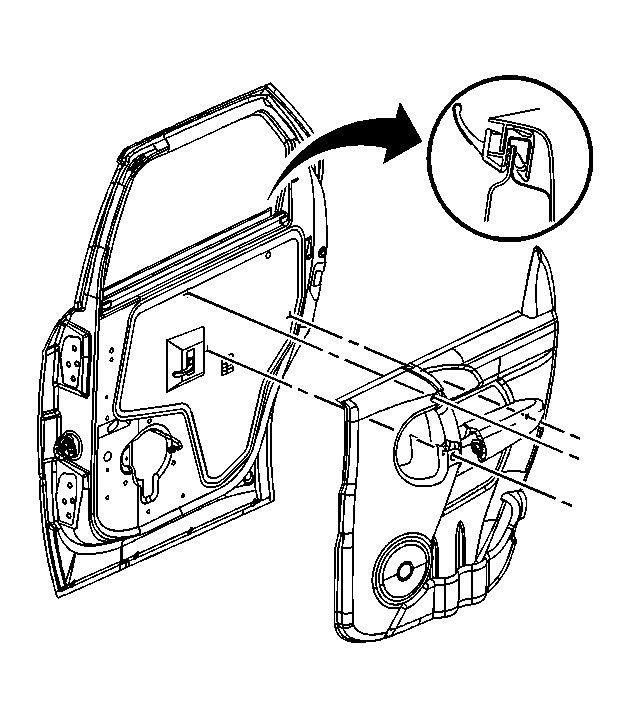

    Fig 2: View Of Inner Rear Door (Aztek)
    GM621719Courtesy of GENERAL MOTORS CORP.
