Removal Procedure

IMPORTANT: Mark the location and the color of the wires to the electrical socket before removing the wires.
  1. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnect/Connect Procedure (LA1) or Battery Negative Cable Disconnect/Connect Procedure (LY7) in Engine Electrical.
  2. Remove the conduit from the center pillar.
  3. Disconnect the rear door wiring harness electrical connector.

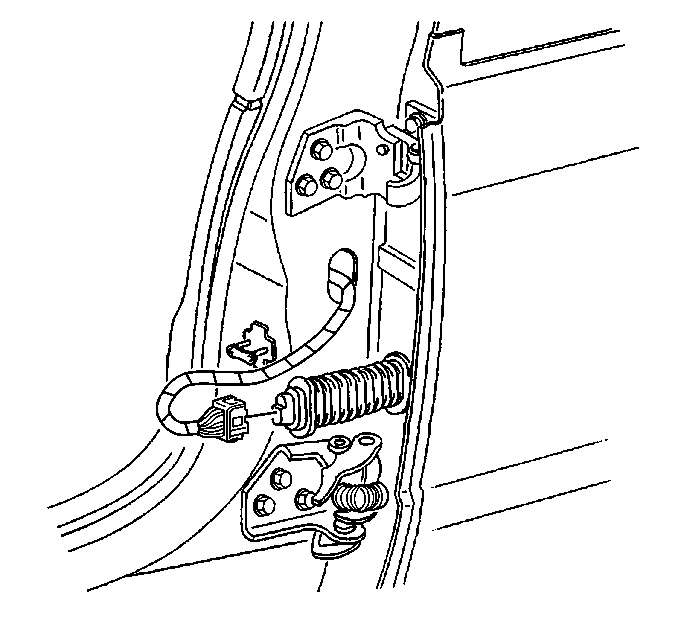

    Fig 1: View Of Rear Door Wiring Harness
    GM459522Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the wire harness retainer from the wiring harness socket.
  5. Remove the wiring harness wiring one at a time from the socket.
  6. Remove the rubber conduit from the rear door.
  7. Remove the wiring harness wiring from the rubber conduit.
