Driver Seat Schematics

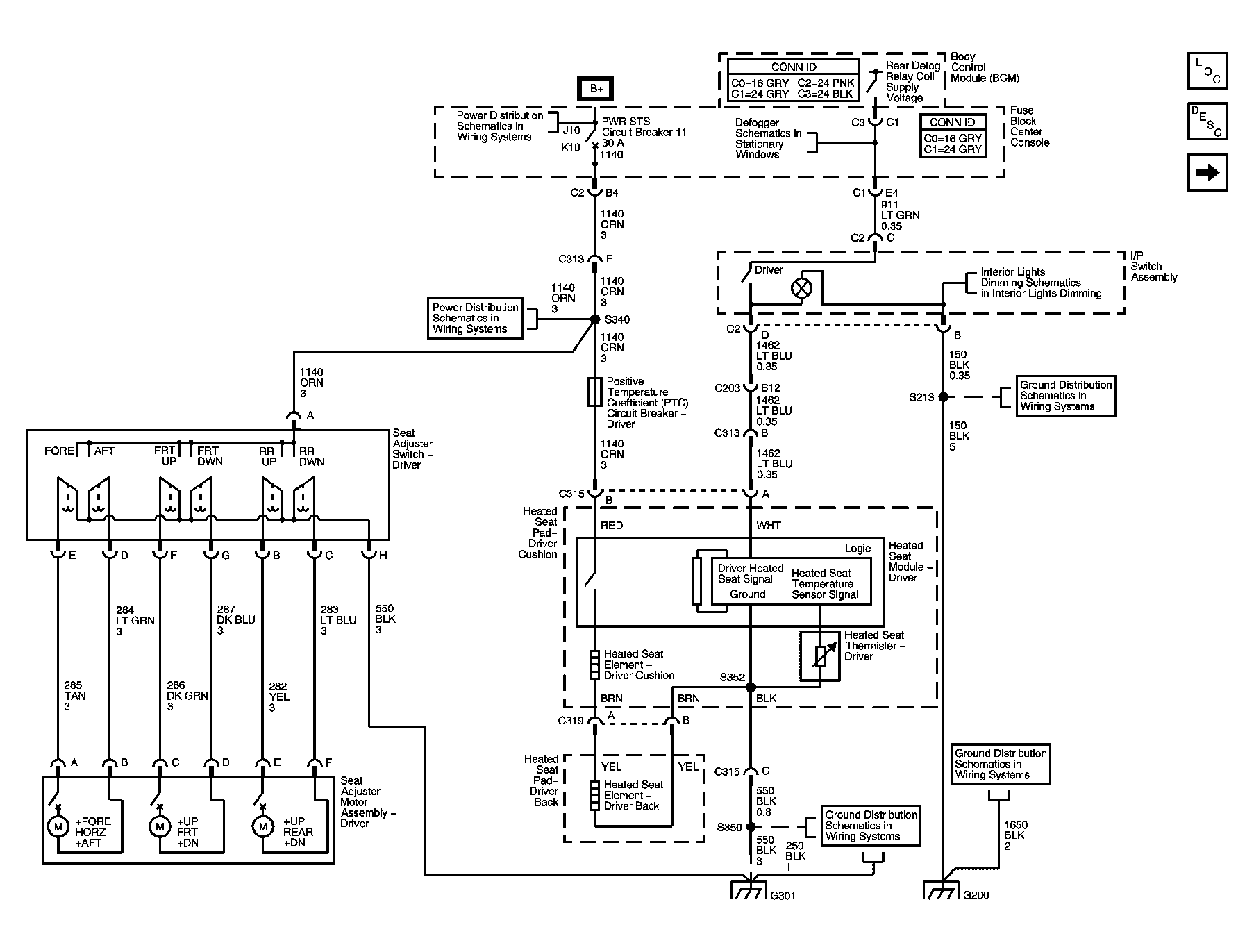

Fig 1: Driver Power and Heated Seat Schematic

GM1340160

Courtesy of GENERAL MOTORS CORP.

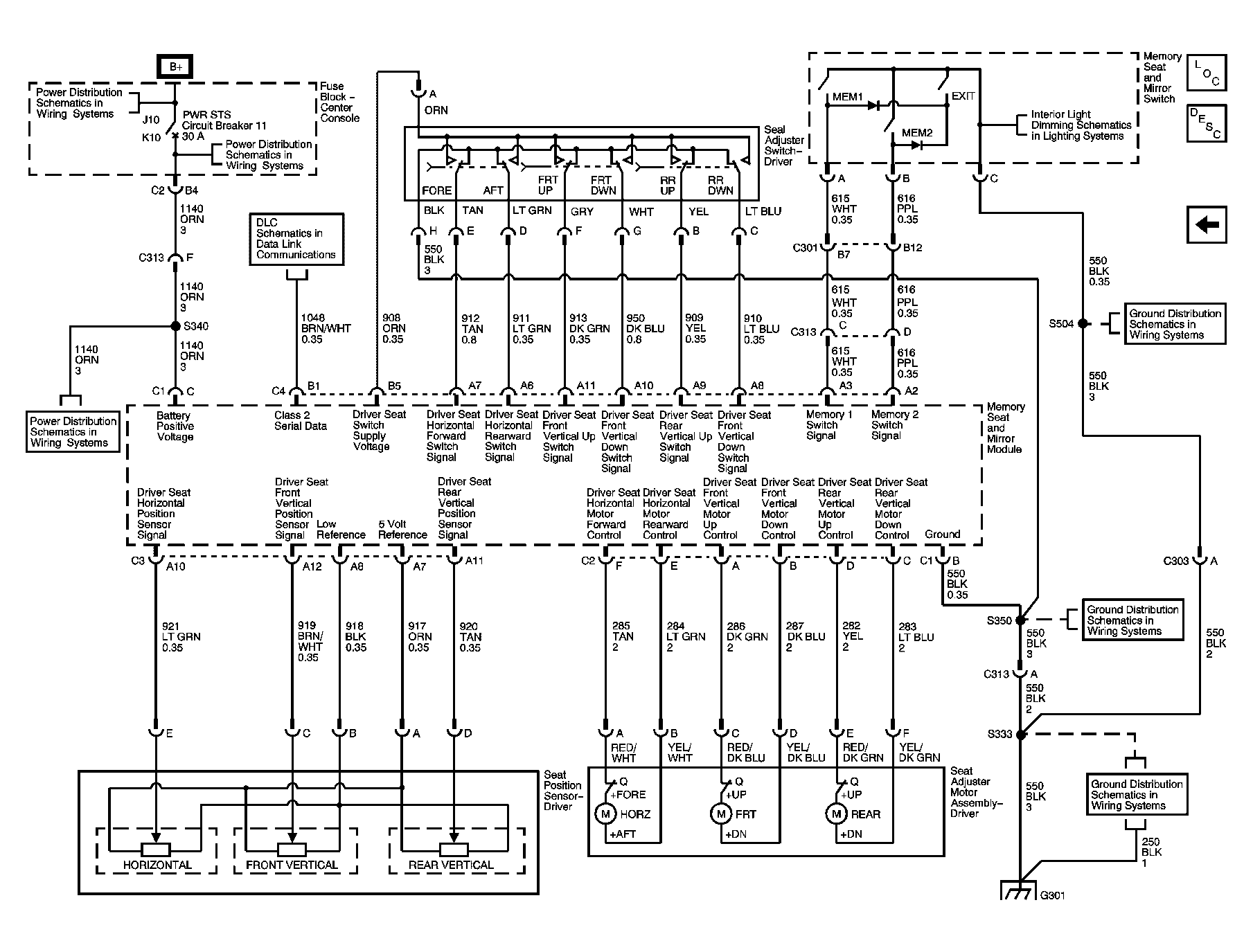

Fig 2: Memory Seat Schematic

GM1340169

Courtesy of GENERAL MOTORS CORP.
