Tire Pressure Monitoring System Schematics

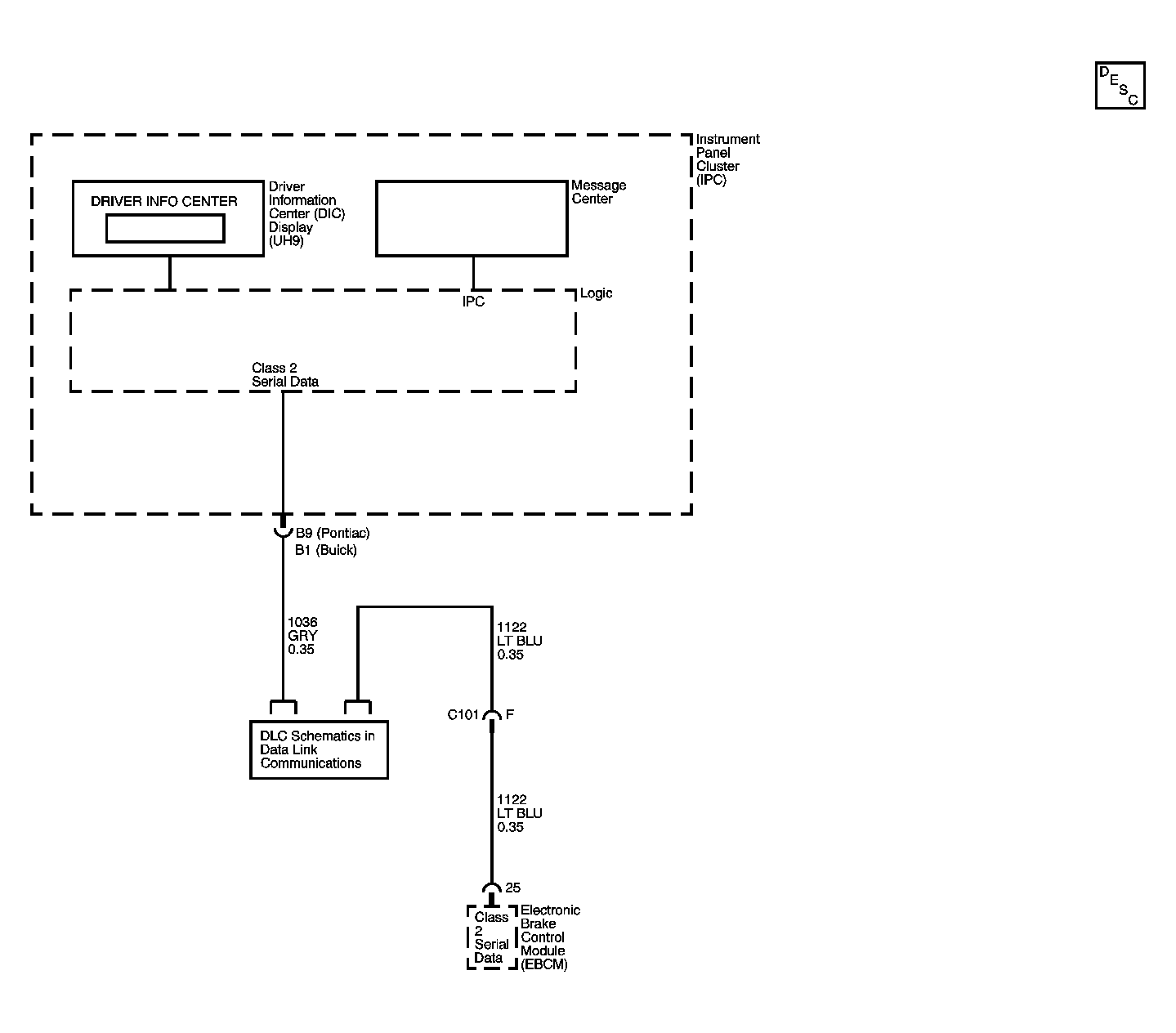

Fig 1: Tire Pressure Monitoring System Schematic

GM866605

Courtesy of GENERAL MOTORS CORP.
