Output Shaft Shim Selection

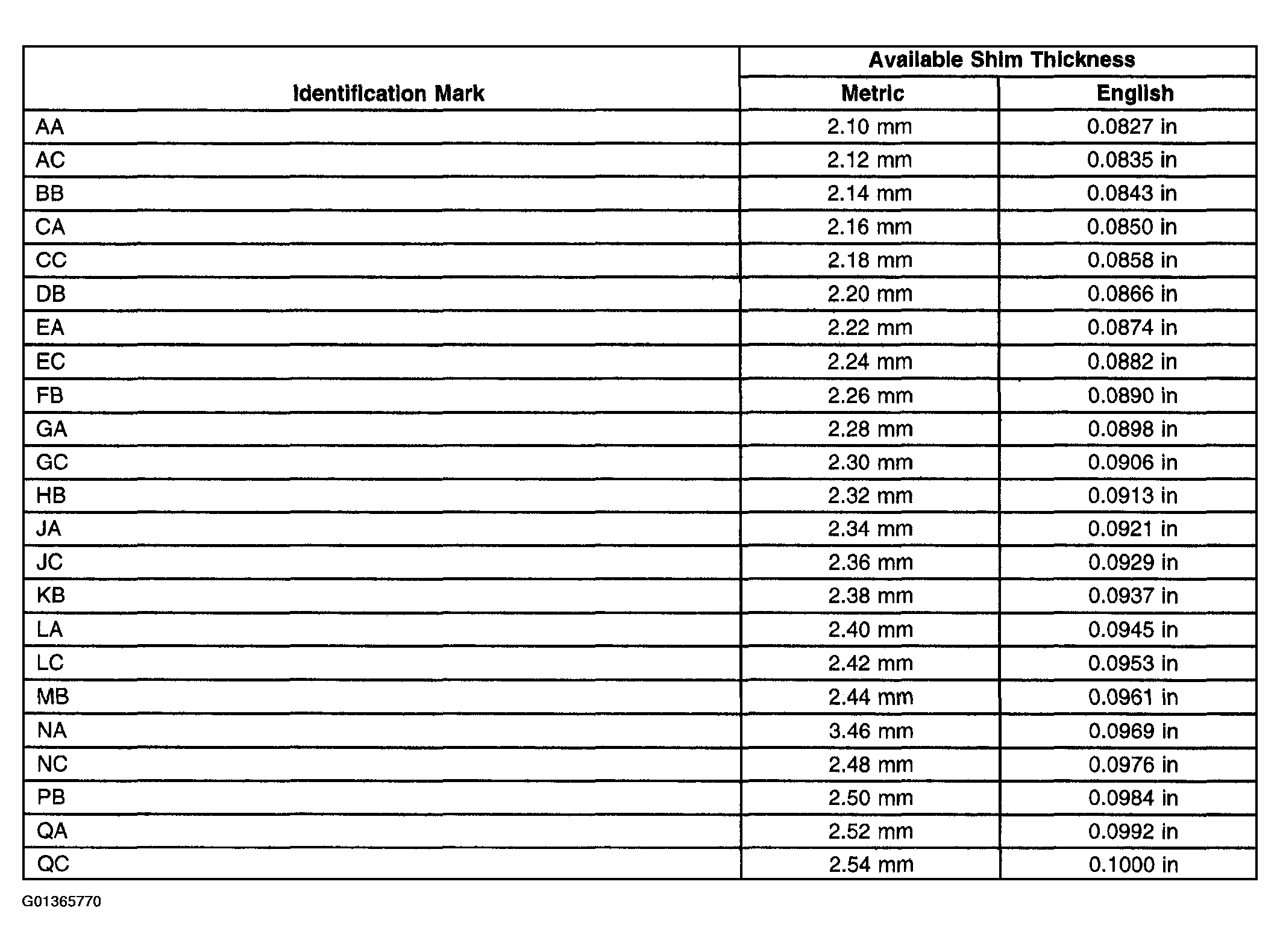

Fig 1: Output Shaft Shim Selection

G01365770

Courtesy of GENERAL MOTORS CORP.
