Drive Pinion Preload Shim Selection

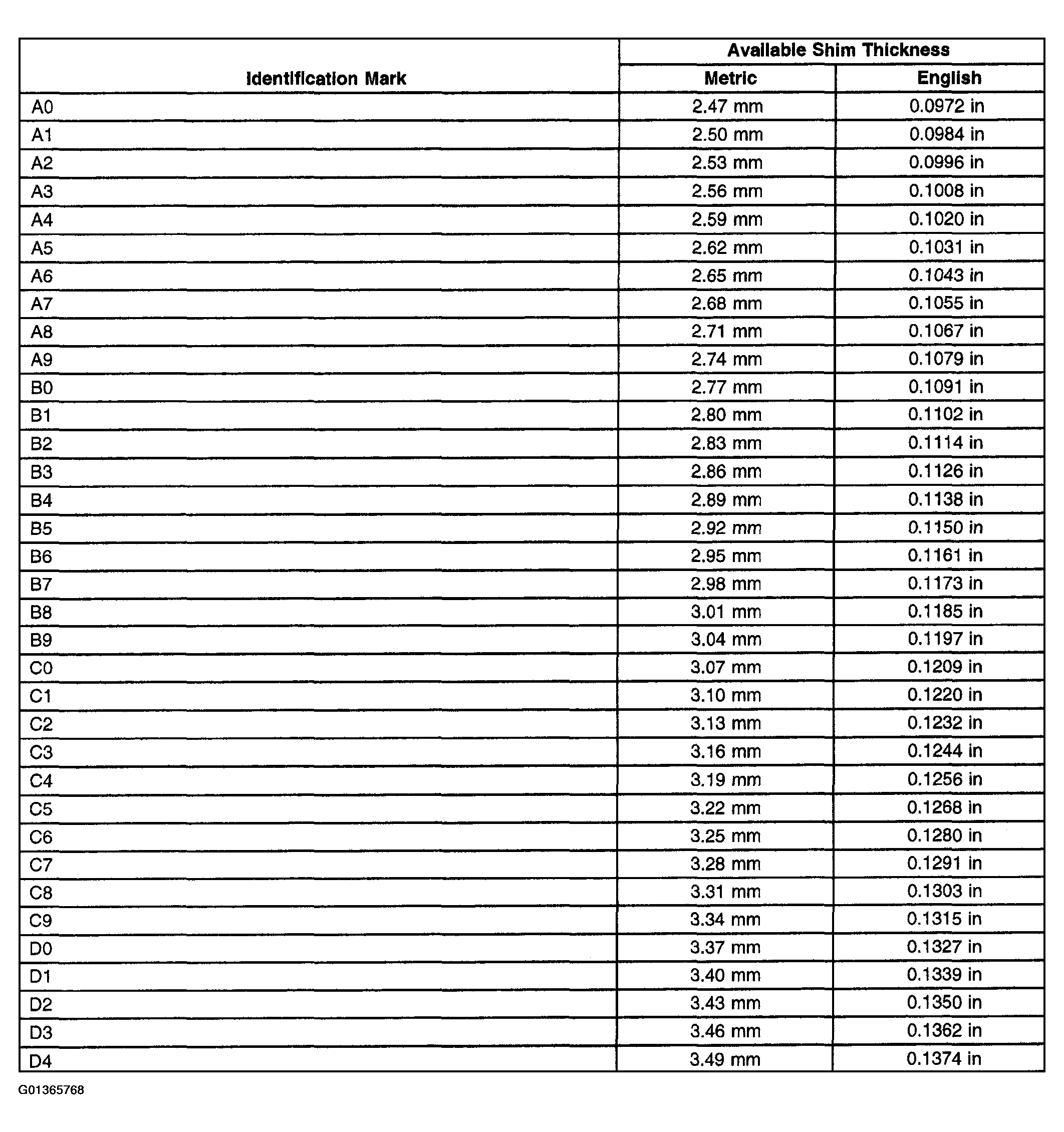

Fig 1: Drive Pinion Preload Shim Selection (1 Of 2)
G01365768Courtesy of GENERAL MOTORS CORP.

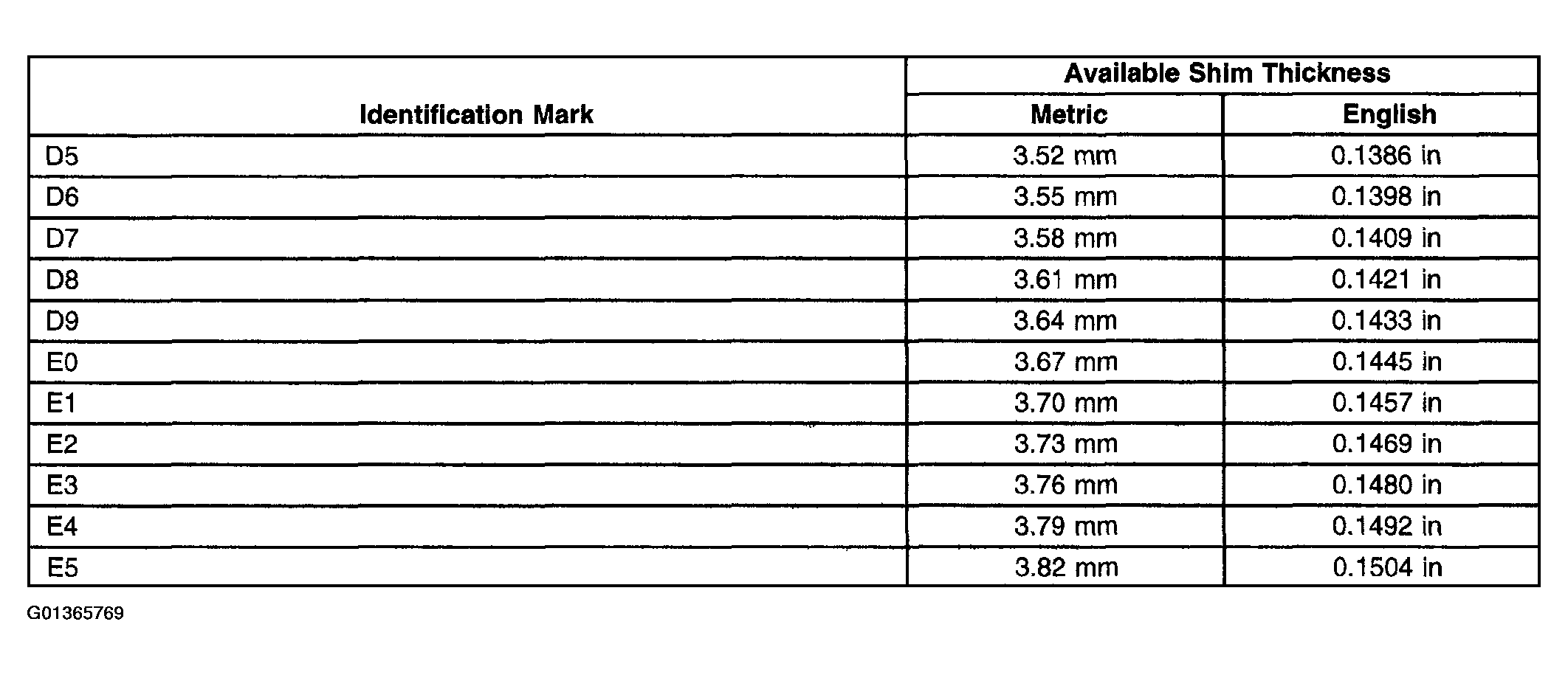

Fig 2: Drive Pinion Preload Shim Selection (2 Of 2)
G01365769Courtesy of GENERAL MOTORS CORP.
