Transfer Case Disassembled View

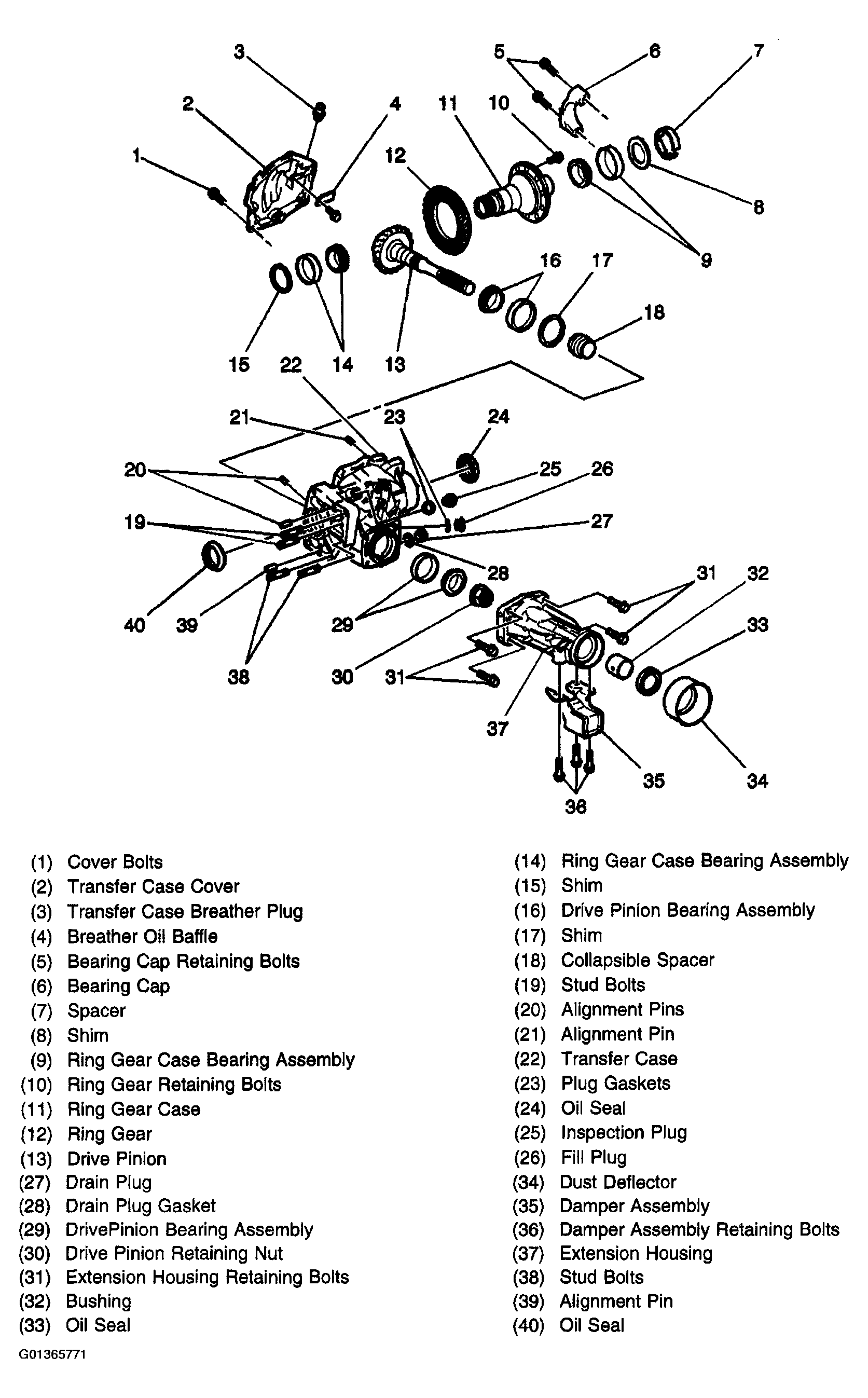

Fig 1: Transfer Case Disassembled View

G01365771

Courtesy of GENERAL MOTORS CORP.
