Windshield Washer Pump Connector End View

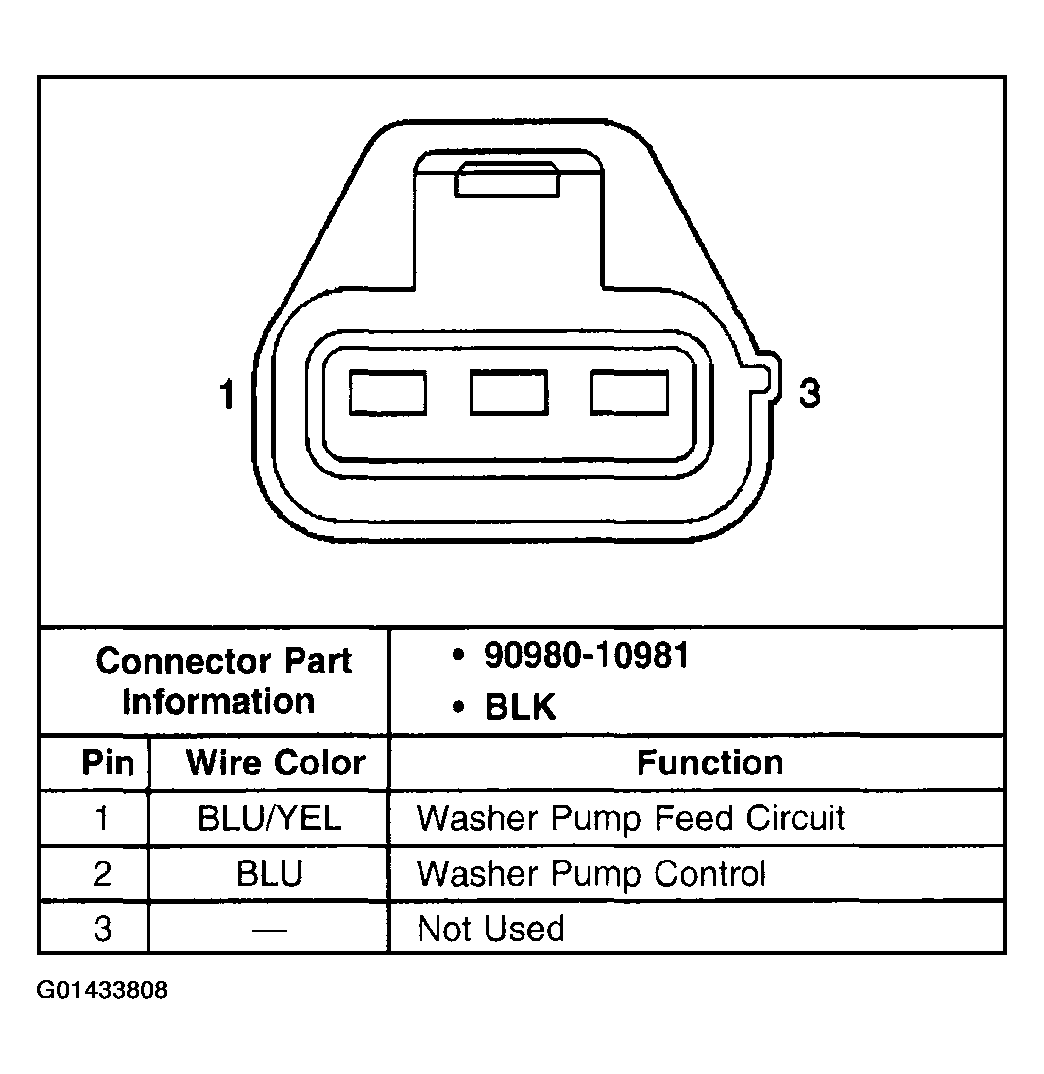

Fig 1: Windshield Washer Pump Connector End View

G01433808

Courtesy of GENERAL MOTORS CORP.
