Terminals Of Vehicle Speed Sensor (VSS) Connector End View

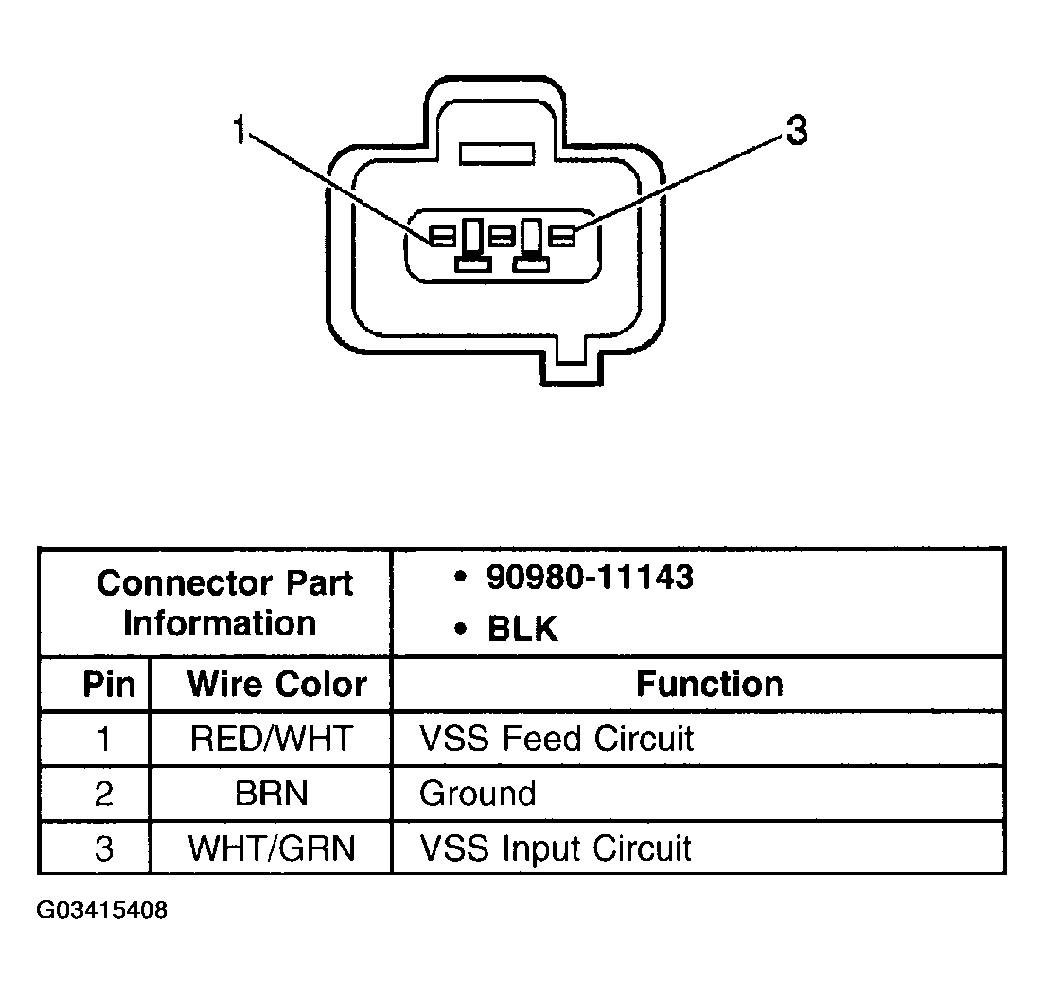

Fig 1: Terminals Of Vehicle Speed Sensor (VSS) Connector End View
G03415408Courtesy of GENERAL MOTORS CORP.


Fig 1: Terminals Of Vehicle Speed Sensor (VSS) Connector End View
G03415528Courtesy of GENERAL MOTORS CORP.
