Terminals Of Transmission Connector End View

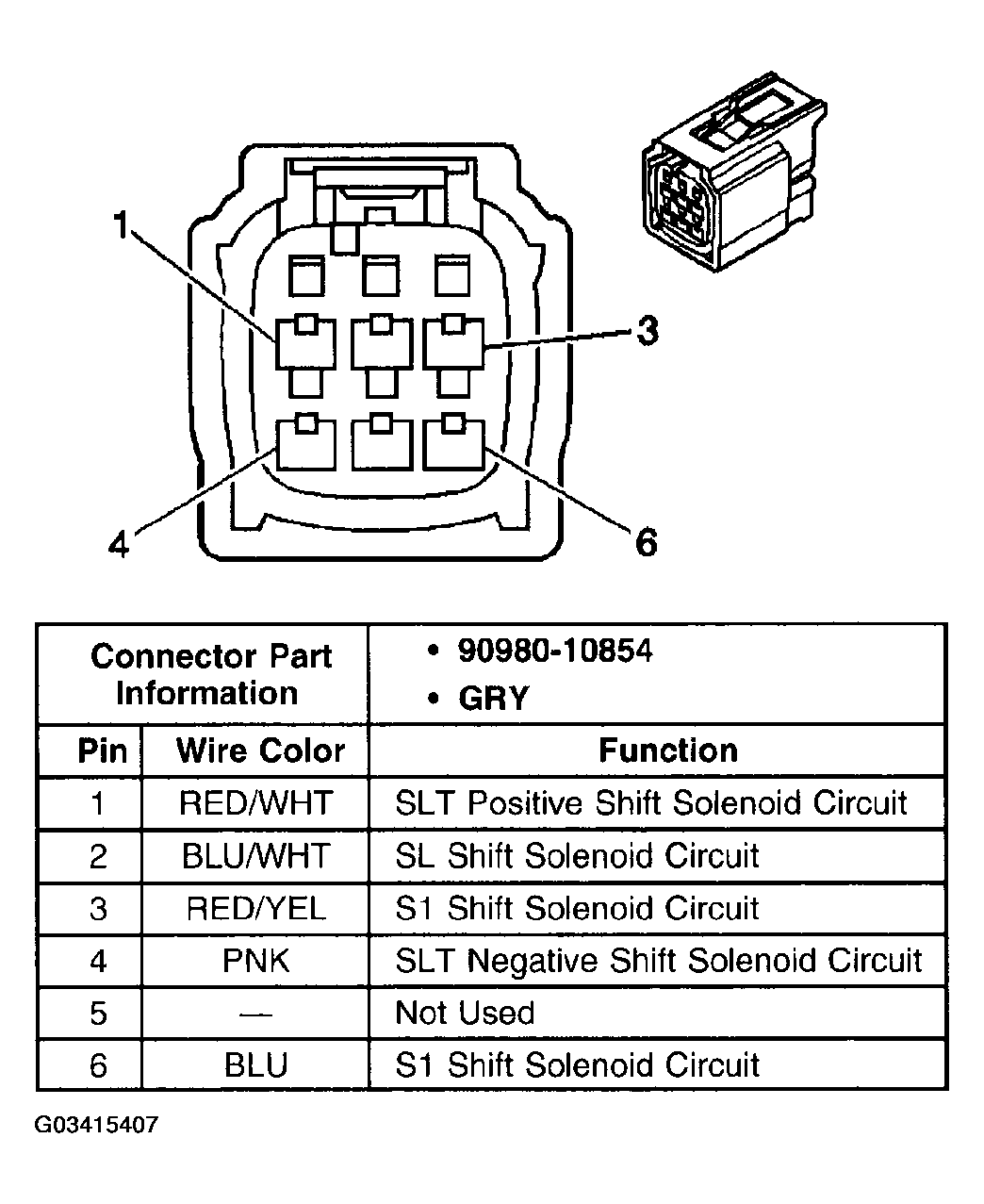

Fig 1: Terminals Of Transmission Connector End View

G03415407

Courtesy of GENERAL MOTORS CORP.
