Power Roof Systems Connector End View - Sunroof Switch Assembly

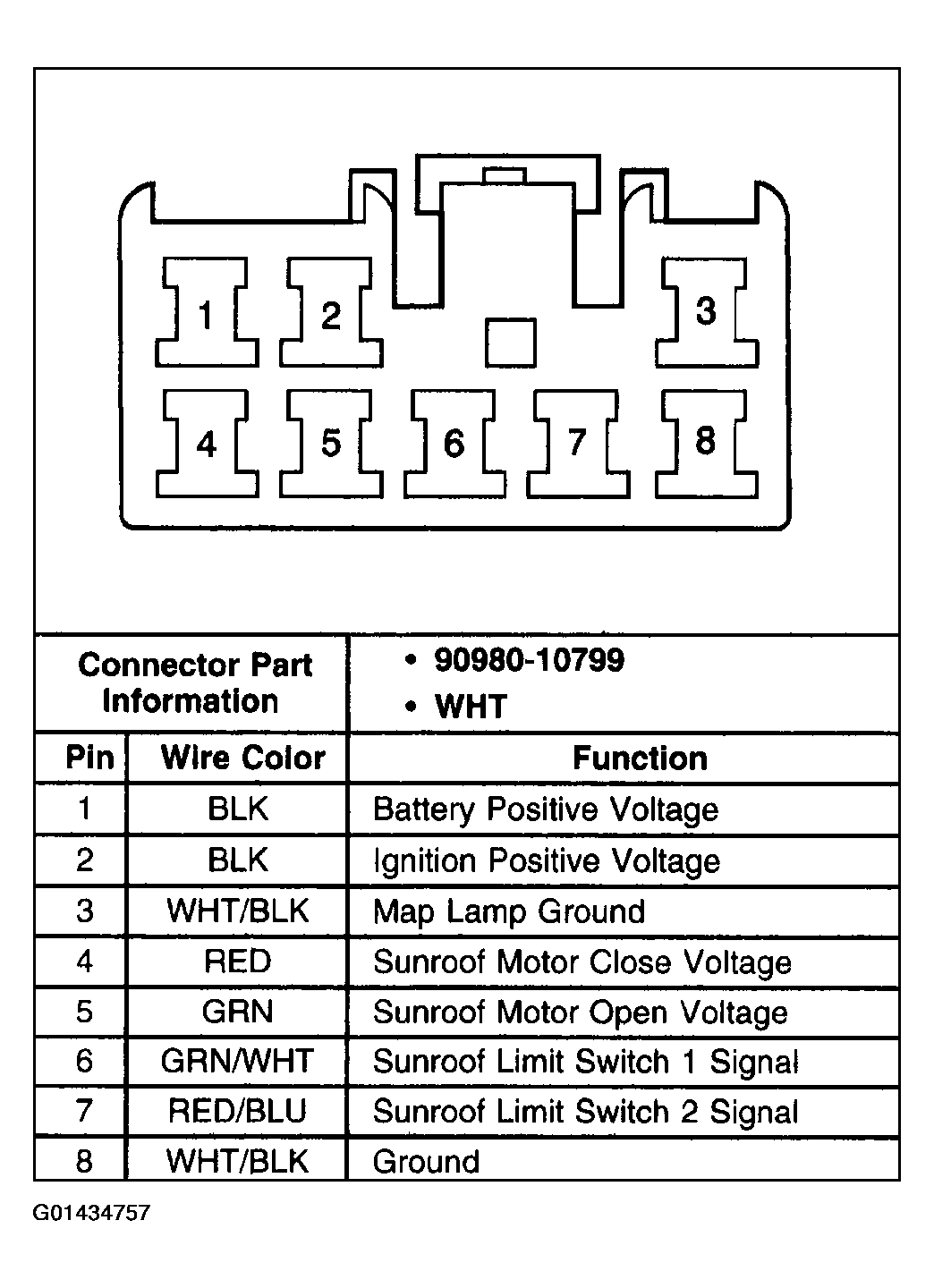

Fig 1: Power Roof Systems Connector End View - Sunroof Switch Assembly

G01434757

Courtesy of GENERAL MOTORS CORP.
