Locating Park/Neutral Position Switch Connector End View

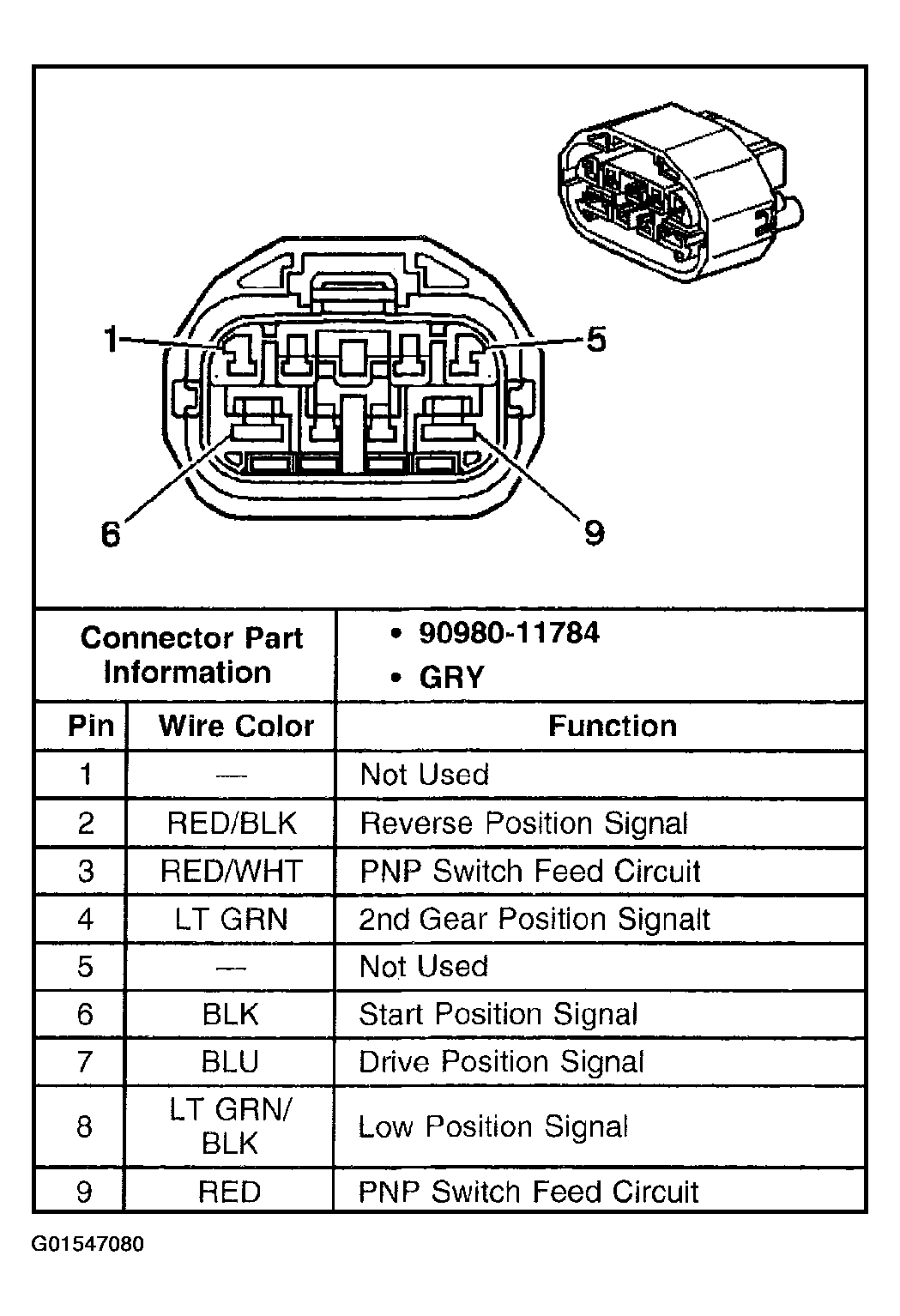

Fig 1: Locating Park/Neutral Position Switch Connector End View

G01547080

Courtesy of GENERAL MOTORS CORP.
