Fan Resistor Connector End View
Fan Resistor Connector End View

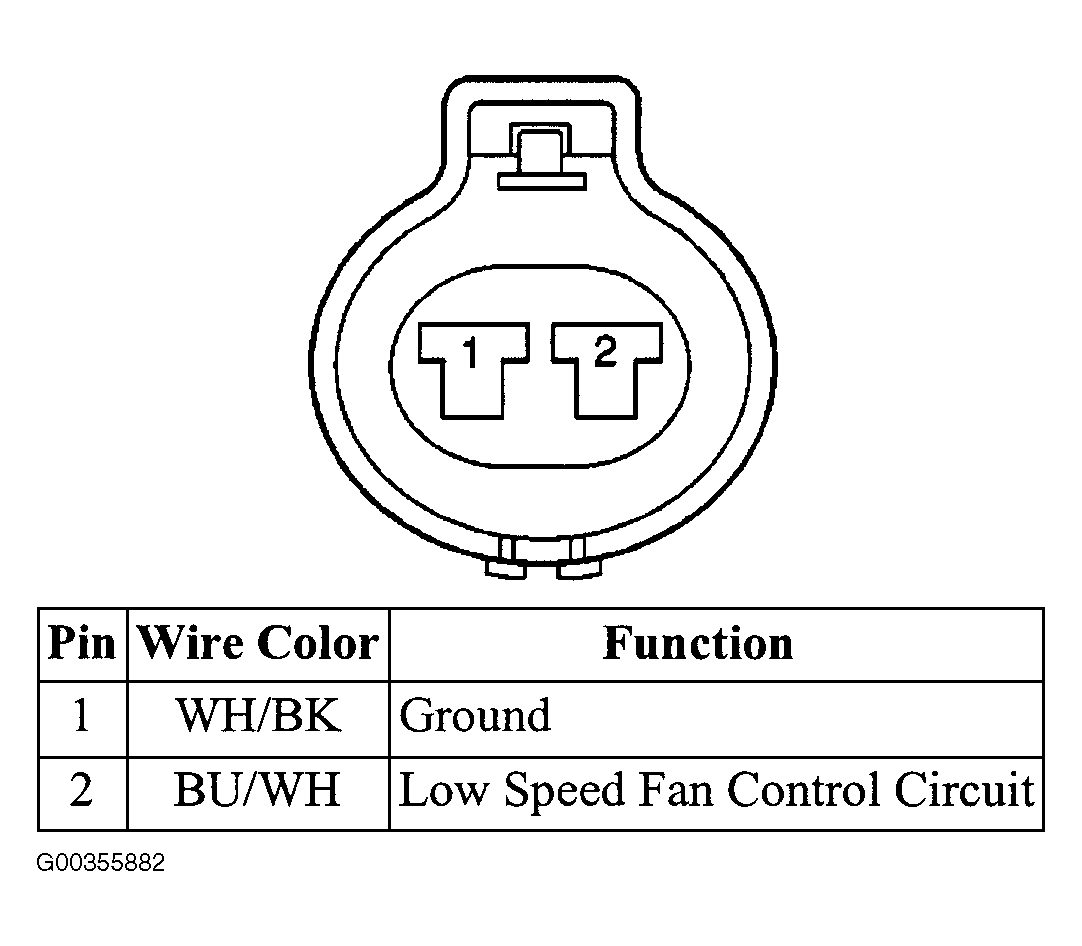

Fig 1: Fan Resistor Connector End View
Courtesy of GENERAL MOTORS CORP.

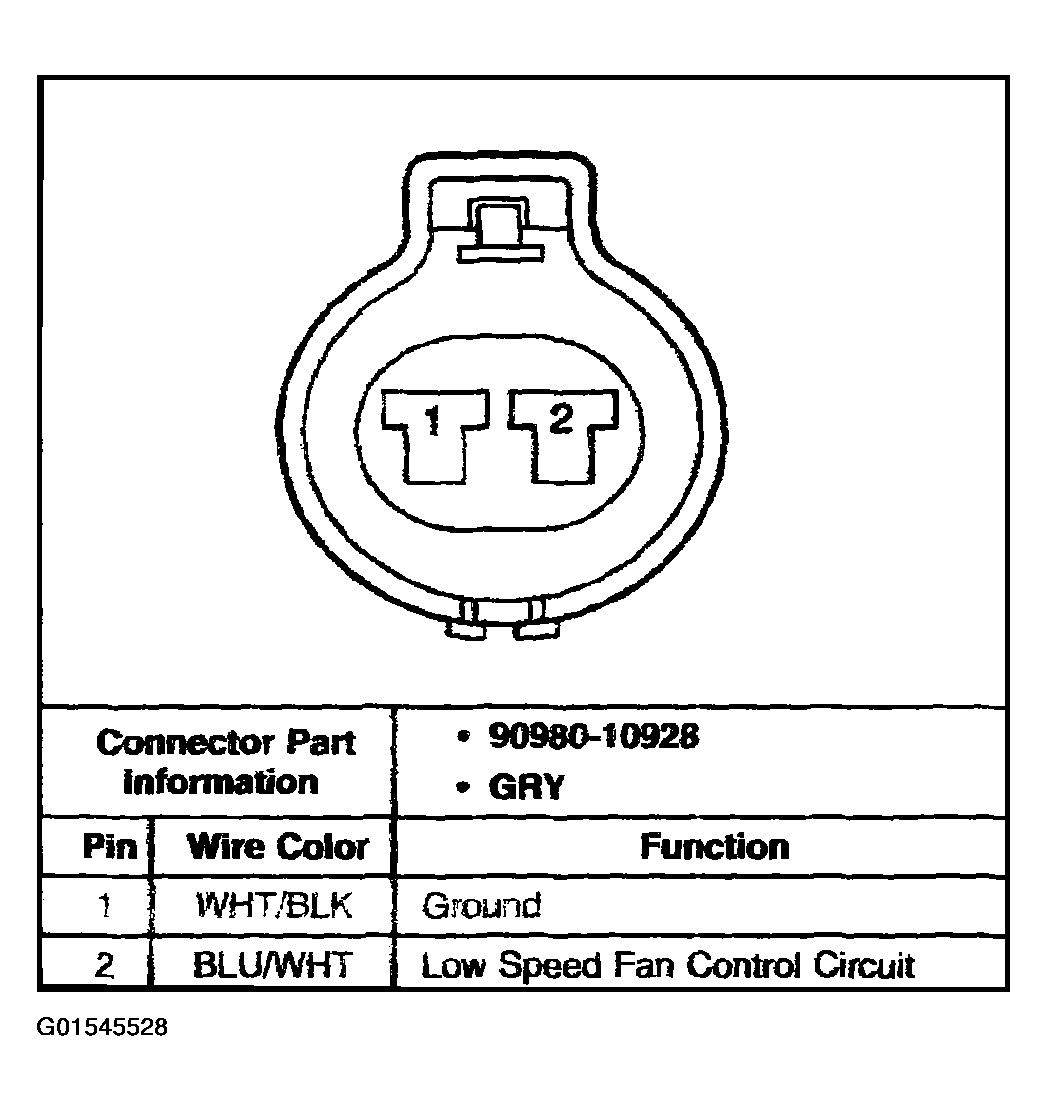

Fig 1: Fan Resistor Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
