Blower Motor Resistor Connector End View

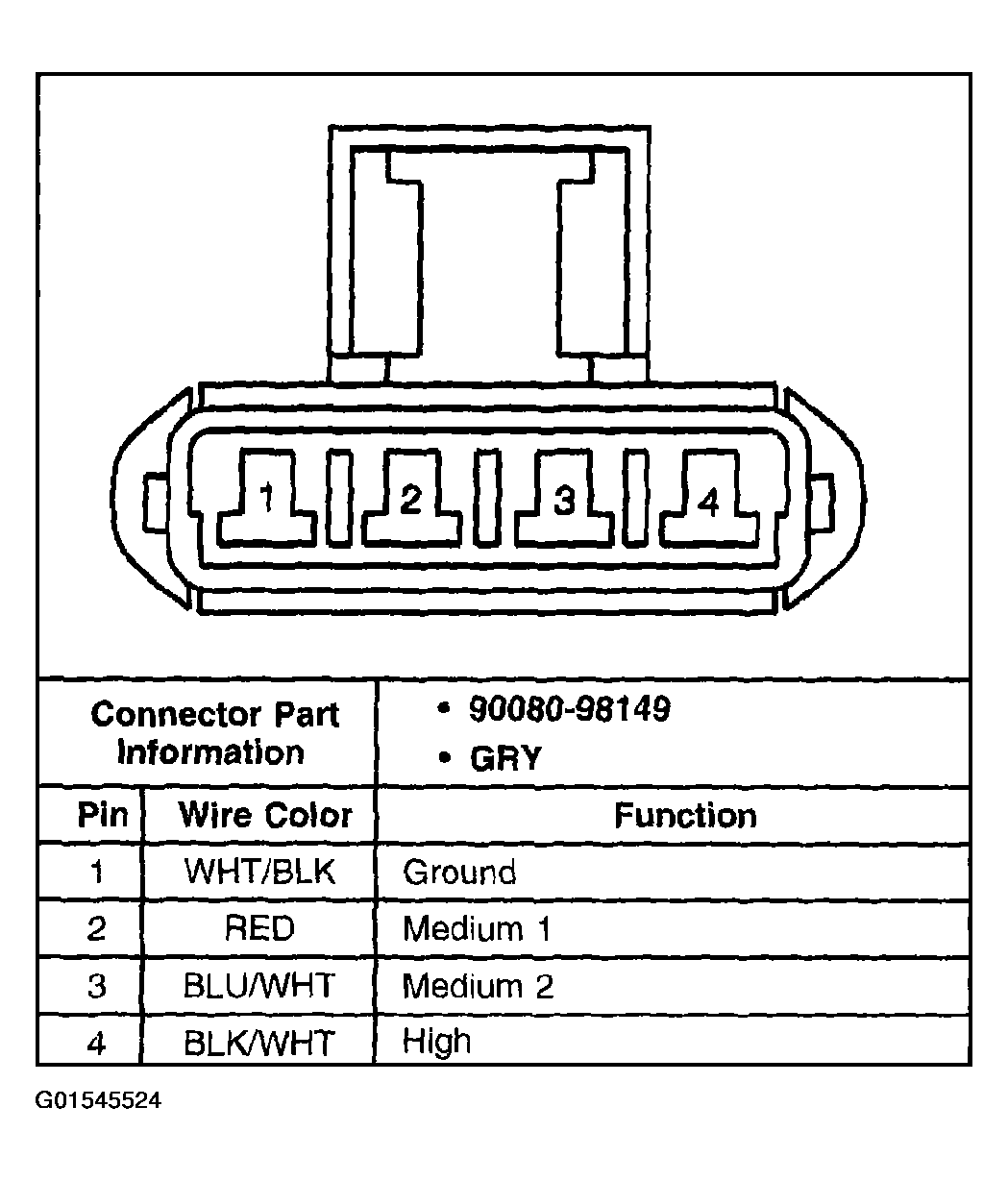

Fig 1: Blower Motor Resistor Connector End View

G01545524

Courtesy of GENERAL MOTORS CORP.
