Home >> Pontiac >> 2003 >> Vibe Base, AWD >> Repair and Diagnosis >> Body & Frame >> Windows >> Stationary Window System >> Component Locator >> Stationary Windows Connector End Views

Stationary Windows Connector End Views

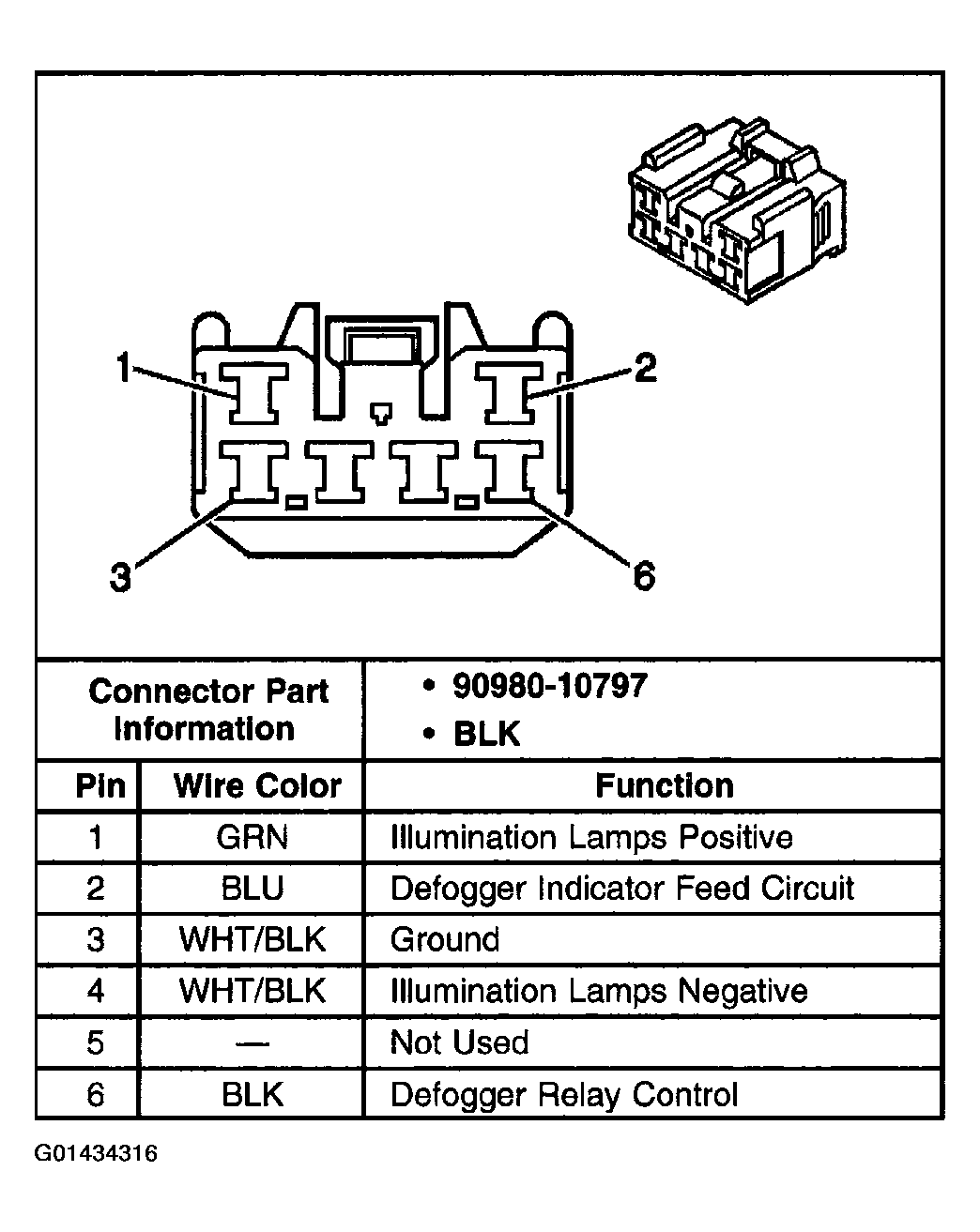

Fig 1: Identifying Defogger Switch Connector End

G01434316

Courtesy of GENERAL MOTORS CORP.
