Door Lock/Indicator Schematics (GAUGE and DOOR Fuse, Multifunction Alarm Module)

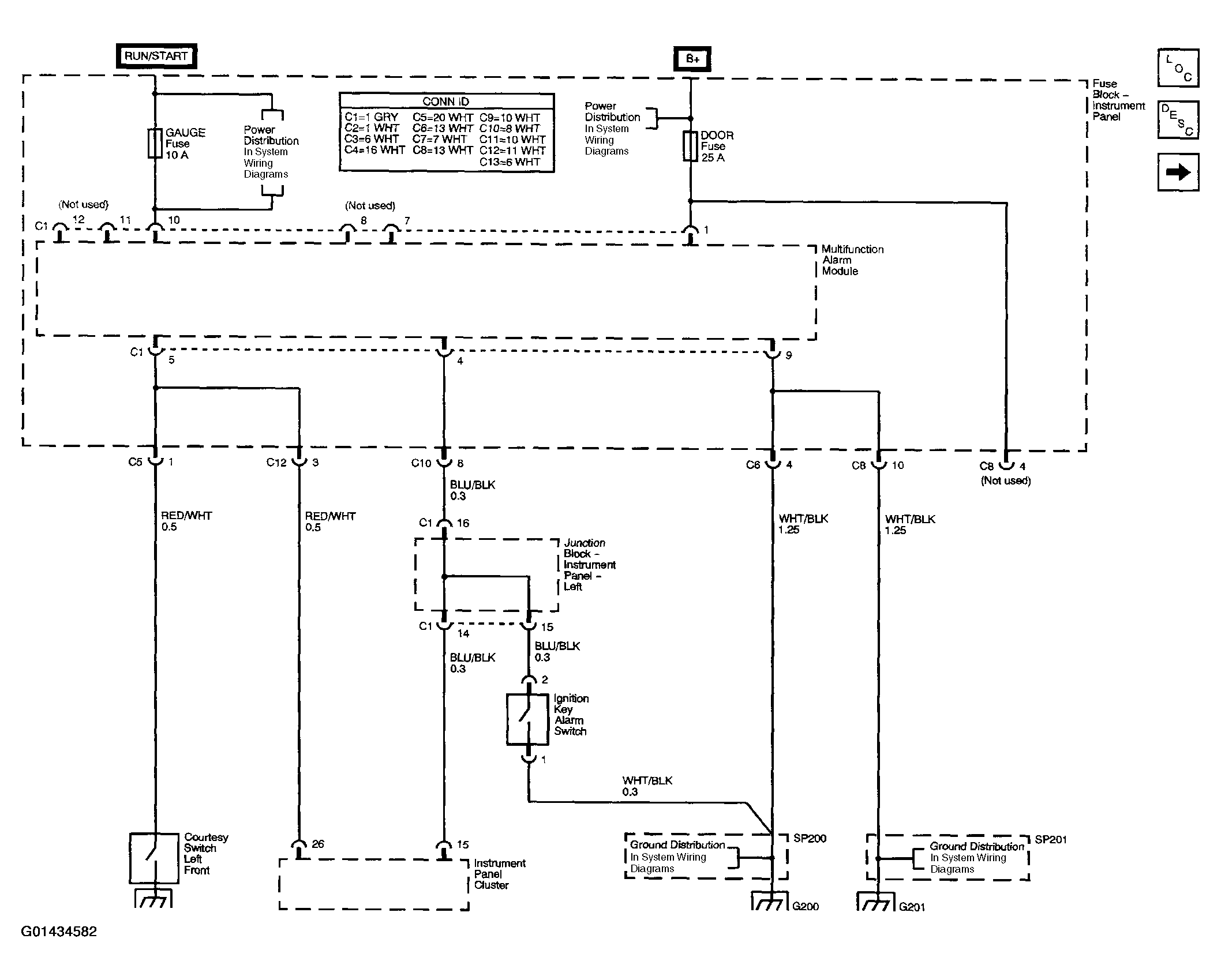

Fig 1: Door Lock/Indicator Schematics - Gauge And Door Fuse, Multifunction Alarm Module

Courtesy of GENERAL MOTORS CORP.

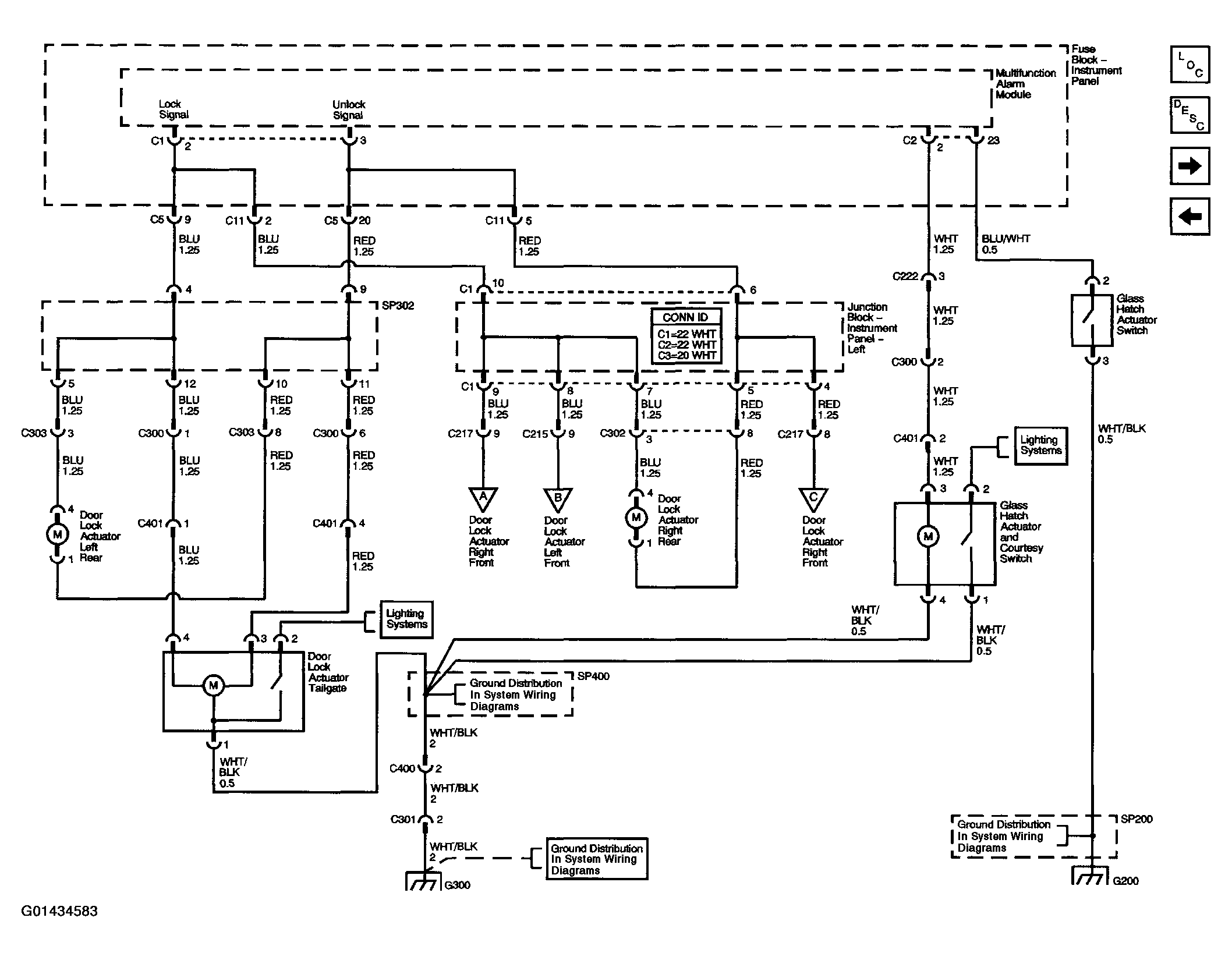

Fig 2: Door Lock/Indicator Schematics - Multifunction Alarm Module, Rear Door Lock Actuators, Glass Hatch And Tailgate Actuators

Courtesy of GENERAL MOTORS CORP.

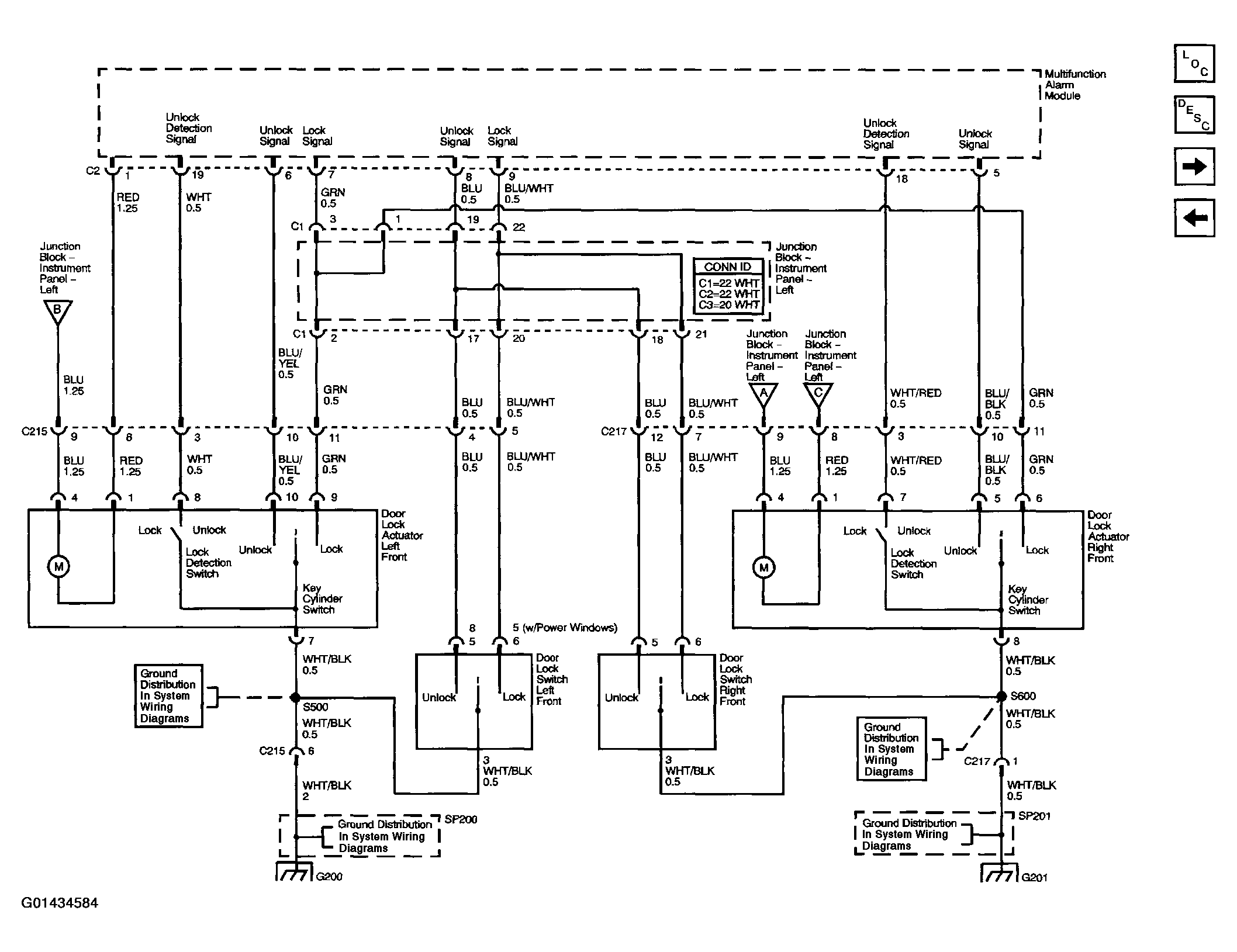

Fig 3: Door Lock/Indicator Schematics - Door Lock Switches And Front Door Lock Actuators

Courtesy of GENERAL MOTORS CORP.

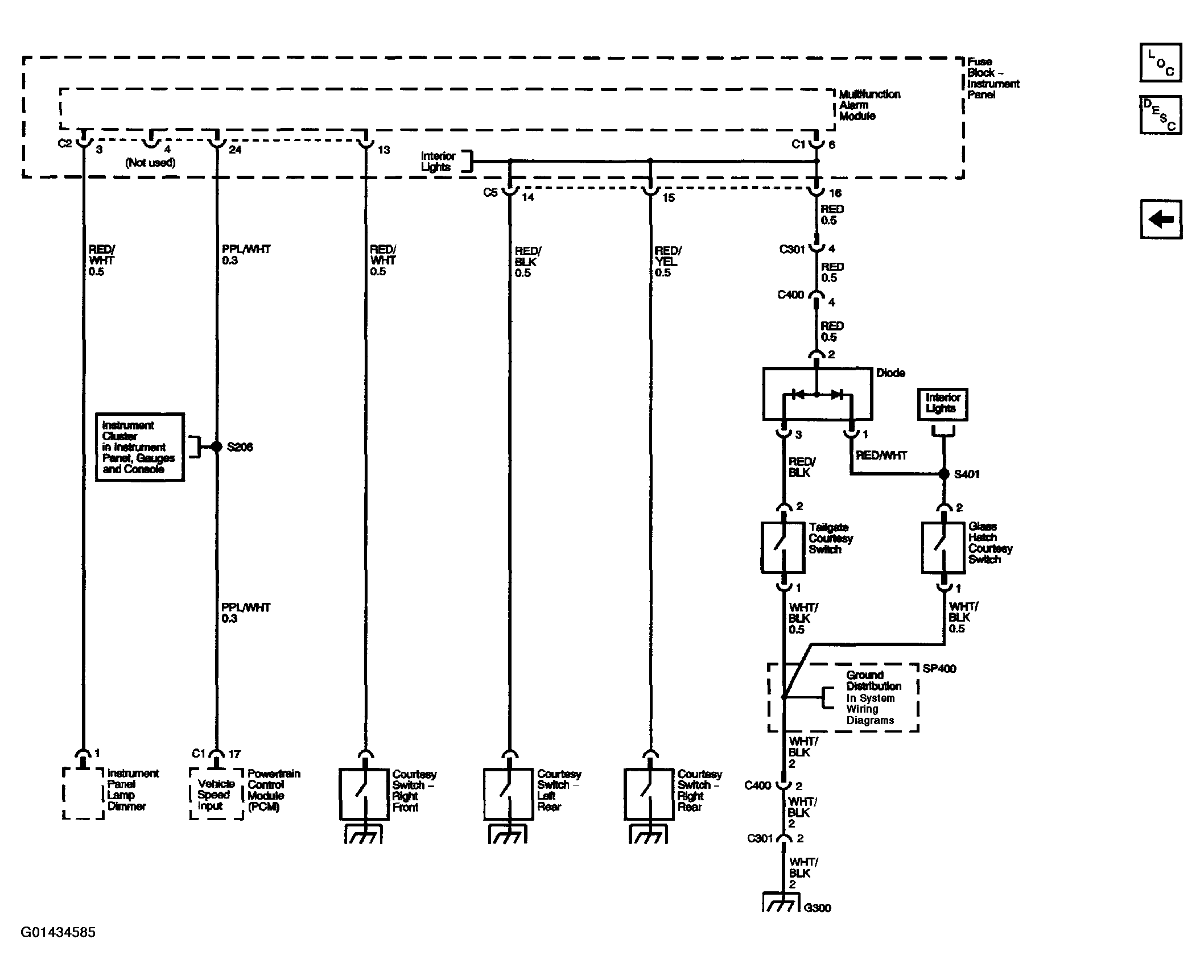

Fig 4: Door Lock/Indicator Schematics - Multifunction Alarm Module And Courtesy Switches

Courtesy of GENERAL MOTORS CORP.

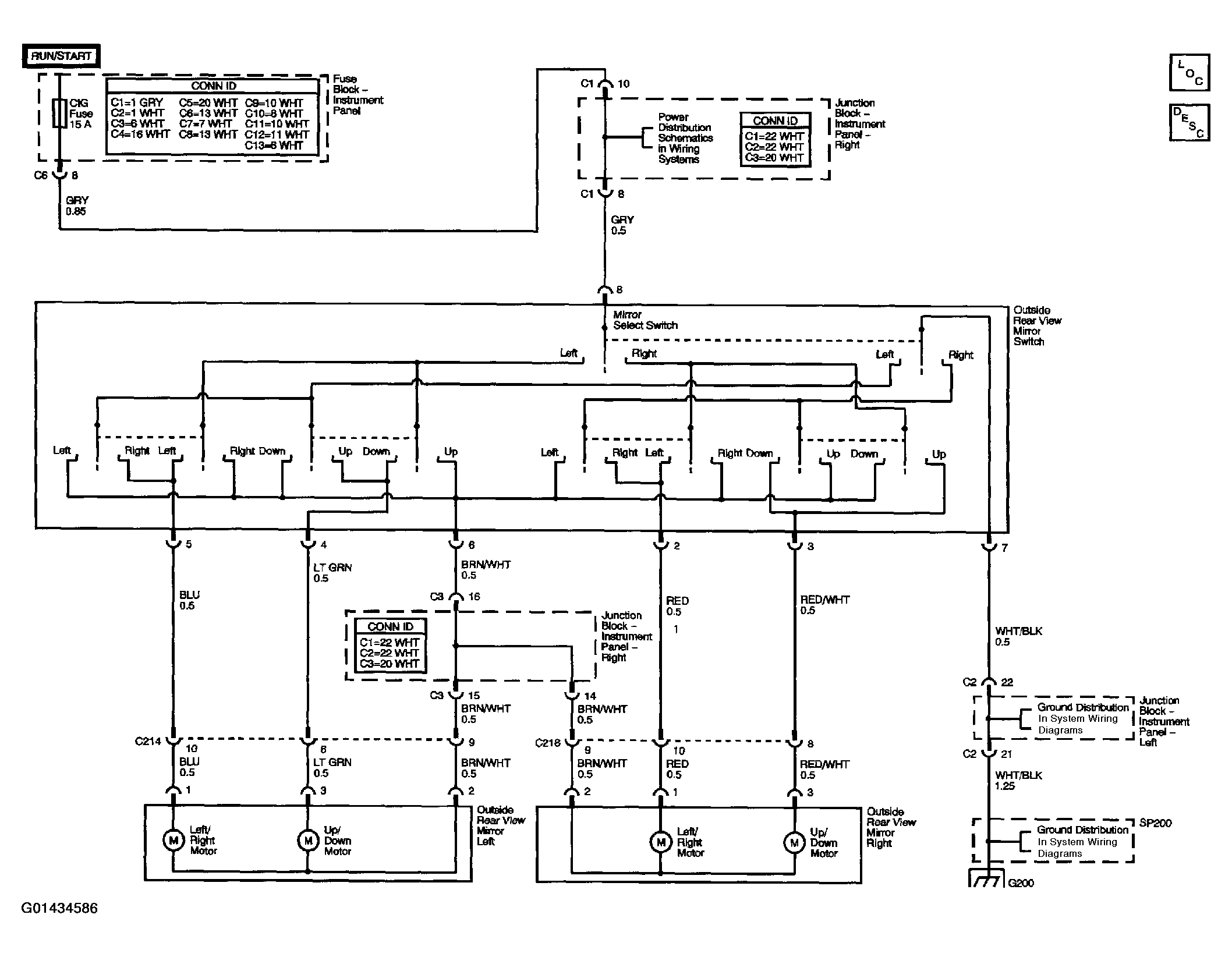

Fig 5: Outside Mirror Schematics

Courtesy of GENERAL MOTORS CORP.
