Removal Procedure

  1. Remove the front side door water deflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR  .
  2. Remove the 3 screws (1) and the access shield (2) from the door (3), if equipped.

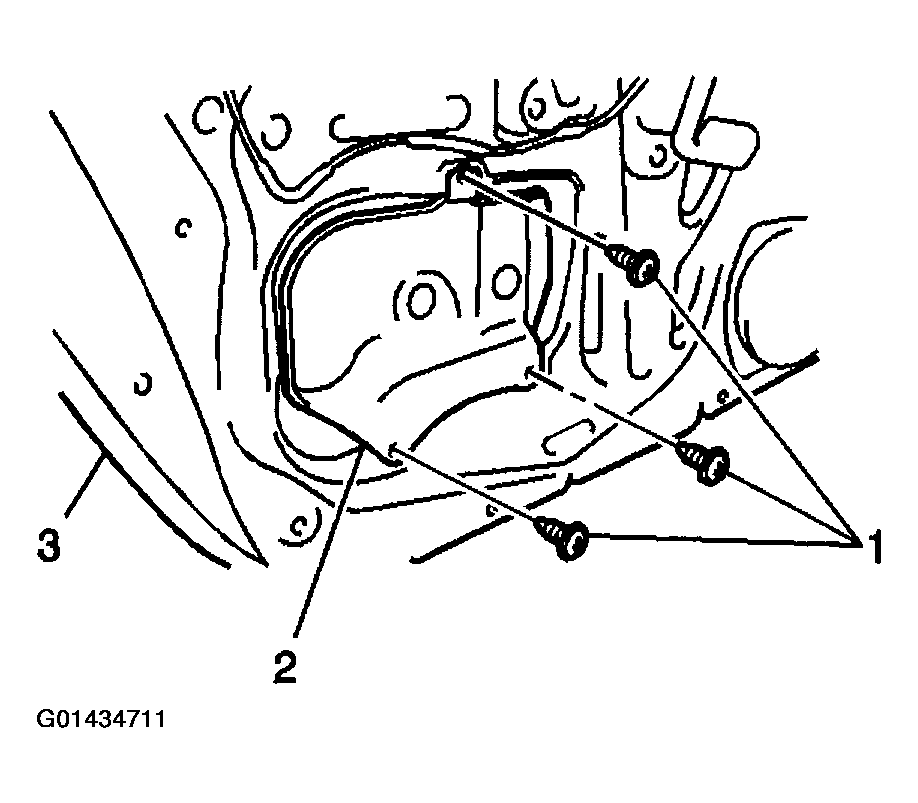

    Fig 1: Removing Screws And Access Shield From Front Door
    G01434711Courtesy of GENERAL MOTORS CORP.
  3. Remove the 2 window-to-regulator bolts (2).
  4. Remove the window (1) by pulling up and out of the door.

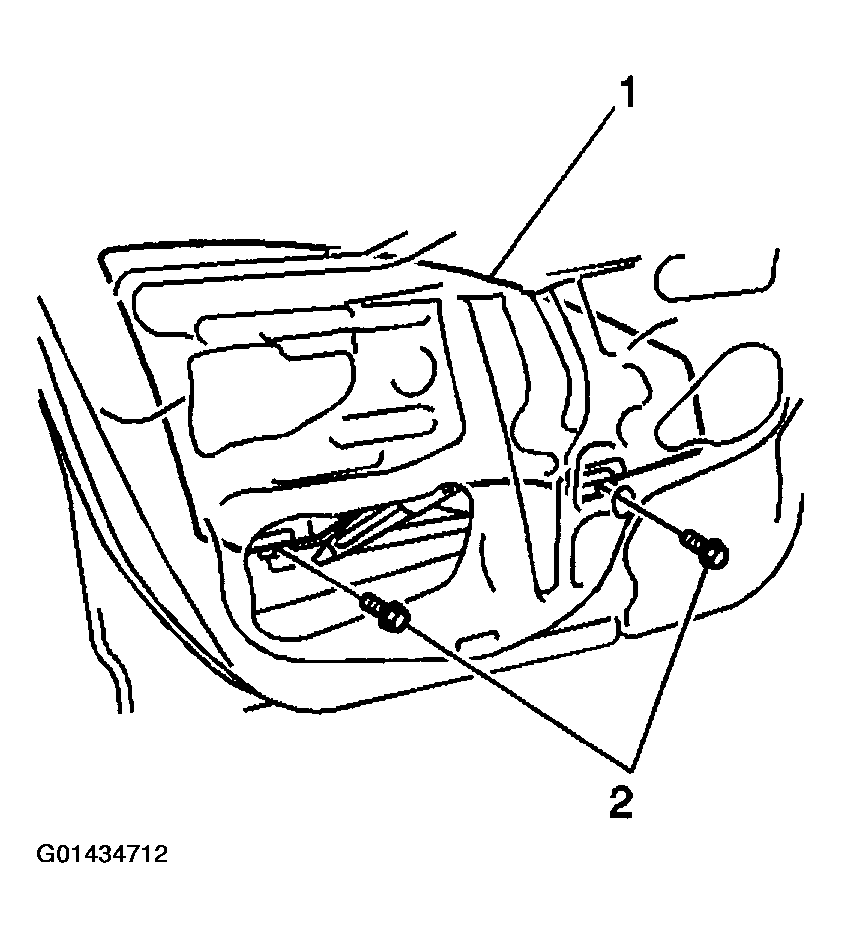

    Fig 2: Removing Window-To-Regulator Bolts
    G01434712Courtesy of GENERAL MOTORS CORP.
