Removal Procedure

  1. Remove the front door window. Refer to WINDOW REPLACEMENT - FRONT DOOR  .
  2. Disconnect the power window motor electrical connector, if equipped.
  3. Remove the following components from the door:
    • The 6 bolts (1)
    • The window regulator (2)

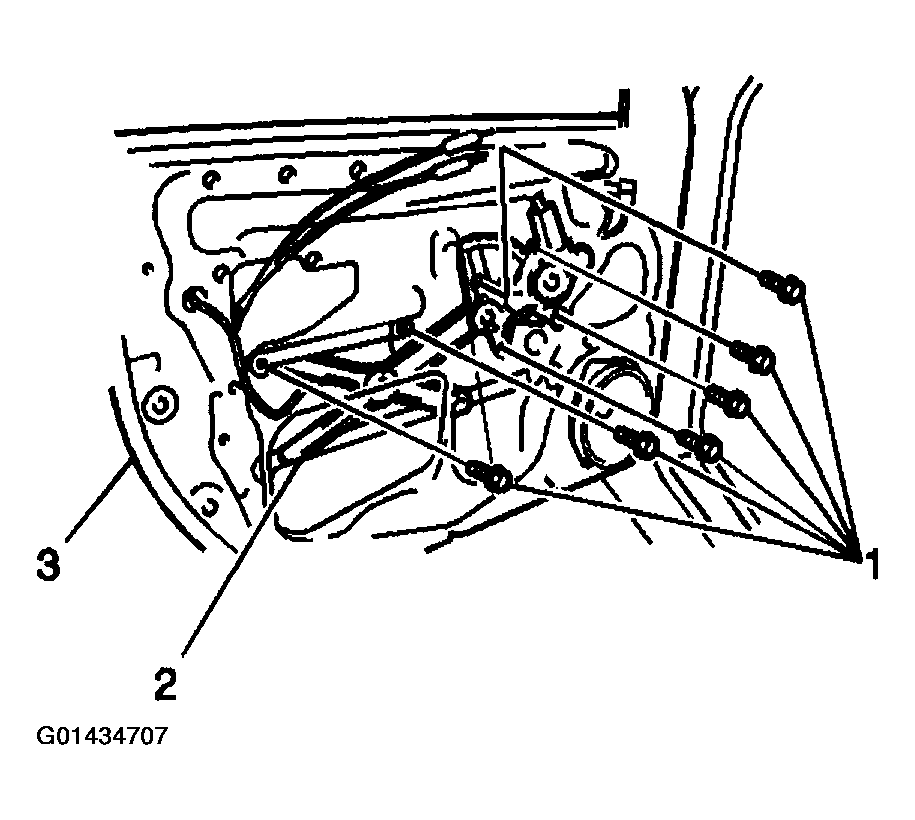

      Fig 1: Removing Front Door Window Regulator Bolts
      G01434707Courtesy of GENERAL MOTORS CORP.
