Removal Procedure

  1. Unclip and remove the inner mirror garnish (6) from the door.
  2. Remove the front side door trim. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR  .
  3. Disconnect the front upper speaker electrical connector (5), if equipped.
  4. Disconnect the outside rearview mirror electrical connector (2).
  5. Remove the following components from the door:
    • The 3 nuts
    • The front upper speaker (3), if equipped.
    • The outside rearview mirror (1)

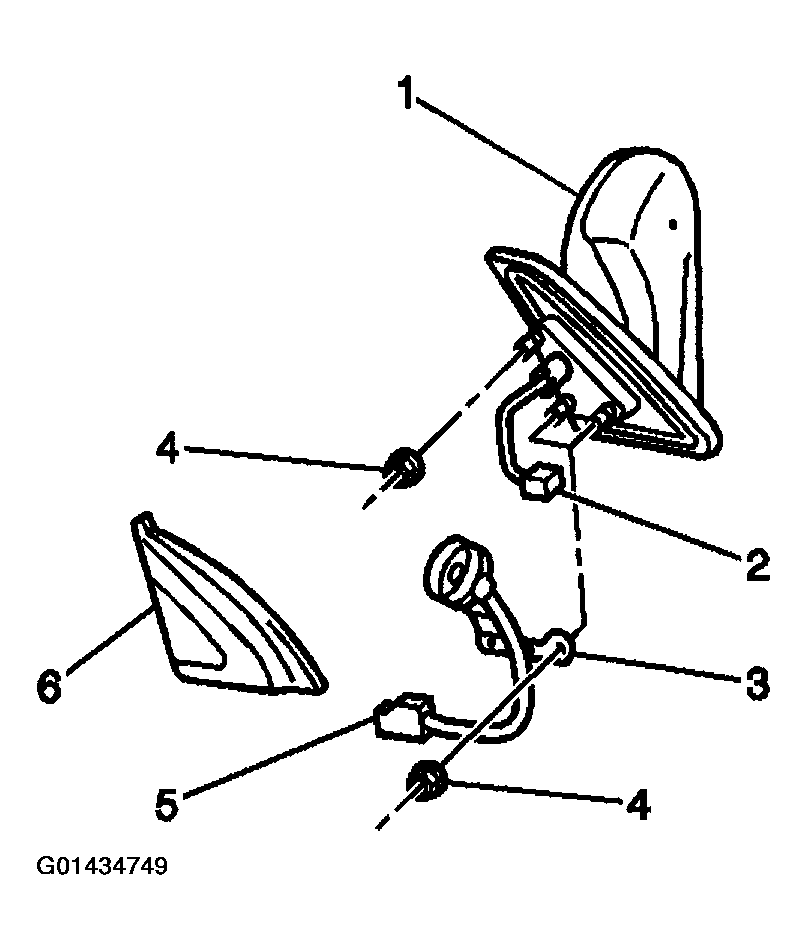

      Fig 1: Removing Front Upper Speaker And Outside Rearview Mirror
      G01434749Courtesy of GENERAL MOTORS CORP.
