Body Side Dimensions

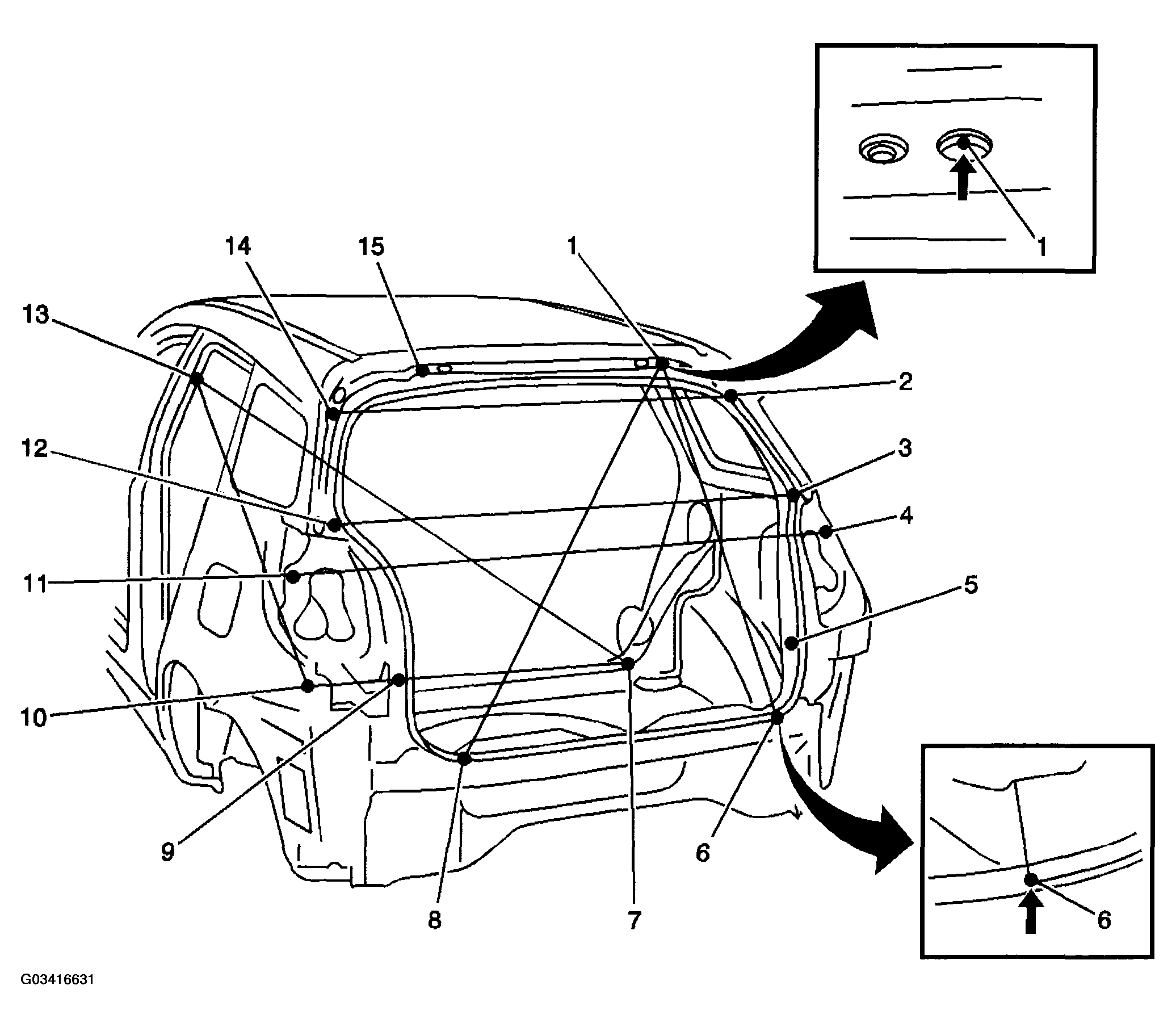

BODY SIDE DIMENSIONS CHART
| Measurement Points | Distance Between Control Points | Measurement Points | Distance Between Control Points |
|---|---|---|---|
| 2-3 | 1118 mm (44.02 in) | 21-22 | 1418 mm (55.83 in) |
| 3-22 | 1086 mm (42.26 in) | 23-24 | 1418 mm (55.83 in) |
| 4-5 | 1216 mm (47.87 in) | 25-18 | 1004 mm (39.53 in) |
| 6-7 | 1215 mm (47.83 in) | 26-5 | 1255 mm (49.41 in) |
| 7-11 | 664 mm (26.14 in) | 26-20 | 803 mm (31.61 in) |
| 7-13 | 915 mm (36.02 in) | 26-26 | 1397 mm (55.00 in) |
| 8-9 | 1114 mm (43.86 in) | - | - |
| 9-15 | 1086 mm (42.76 in) | 29-1 | 1548 mm (60.94 in) |
| 10-11 | 1204 mm (47.40 in) | 29-28 | 1431 mm (56.34 in) |
| 11-17 | 1078 mm (42.44 in) | 30-1 | 1118 mm (44.02 in) |
| 12-13 | 1405 mm (55.31 in) | 30-29 | 892 mm (35.12 in) |
| 14-15 | 1418 mm (55.83 in) | 31-32 | 1343 mm (52.87 in) |
| 15-11 | 1120 mm (44.09 in) | 32-5 | 862 mm (33.94 in) |
| 16-17 | 1406 mm (55.35 in) | 32-20 | 900 mm (35.43 in) |
| 17-13 | 616 mm (24.25 in) | 32-22 | 900 mm (35.43 in) |
| 19-20 | 1412 mm (55.39 in) | - | - |
