Installation Procedure

  1. Install the J 42451  to the right rear of the cylinder head.
  2. Install the J 28467-B  and J-28467-501  to the vehicle.

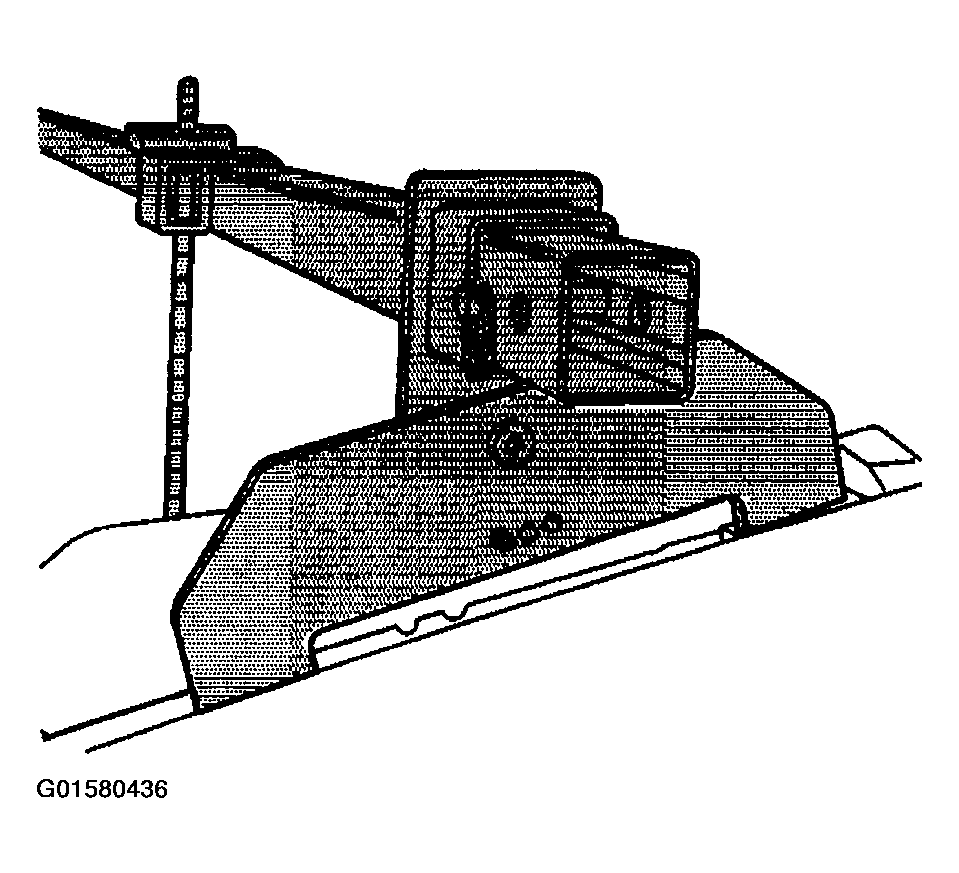

    Fig 1: Installing Engine Support Fixture To Vehicle
    G01580436Courtesy of GENERAL MOTORS CORP.
  3. Install the J 28467-7 (2) to the engine front lift bracket.
  4. Install the J 28467-8 (5) to the engine front lift bracket.

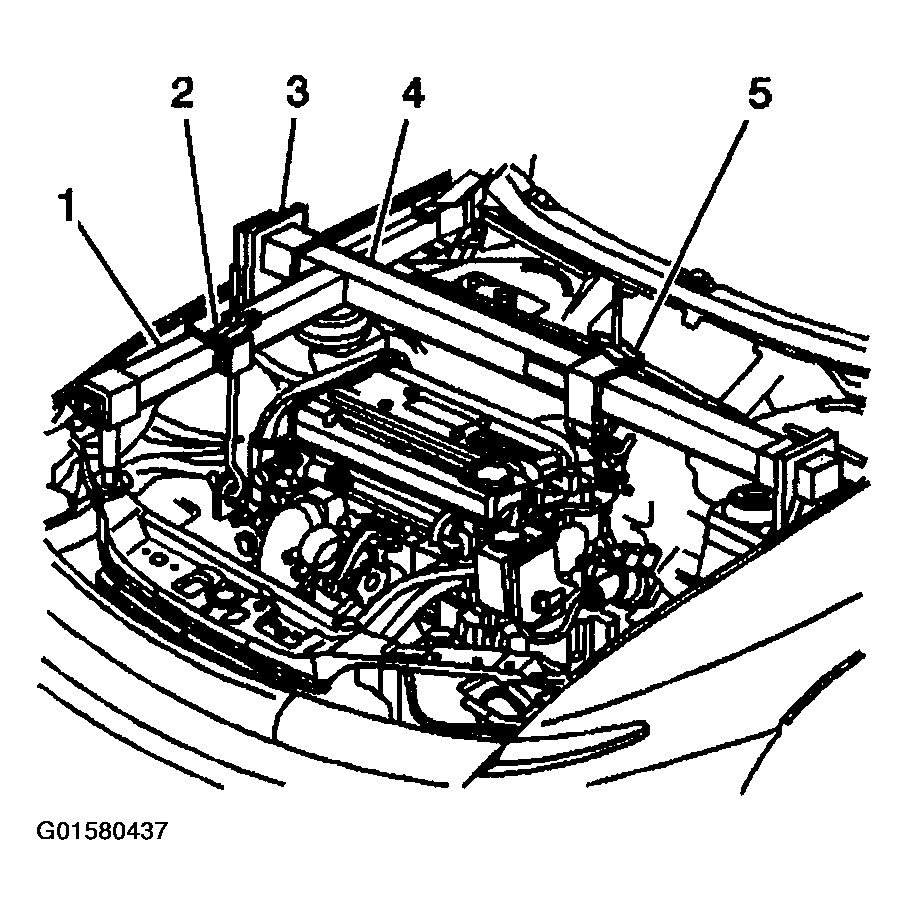

    Fig 2: Attaching Engine Support Fixture Lift Brackets
    G01580437Courtesy of GENERAL MOTORS CORP.
