Installation Procedure

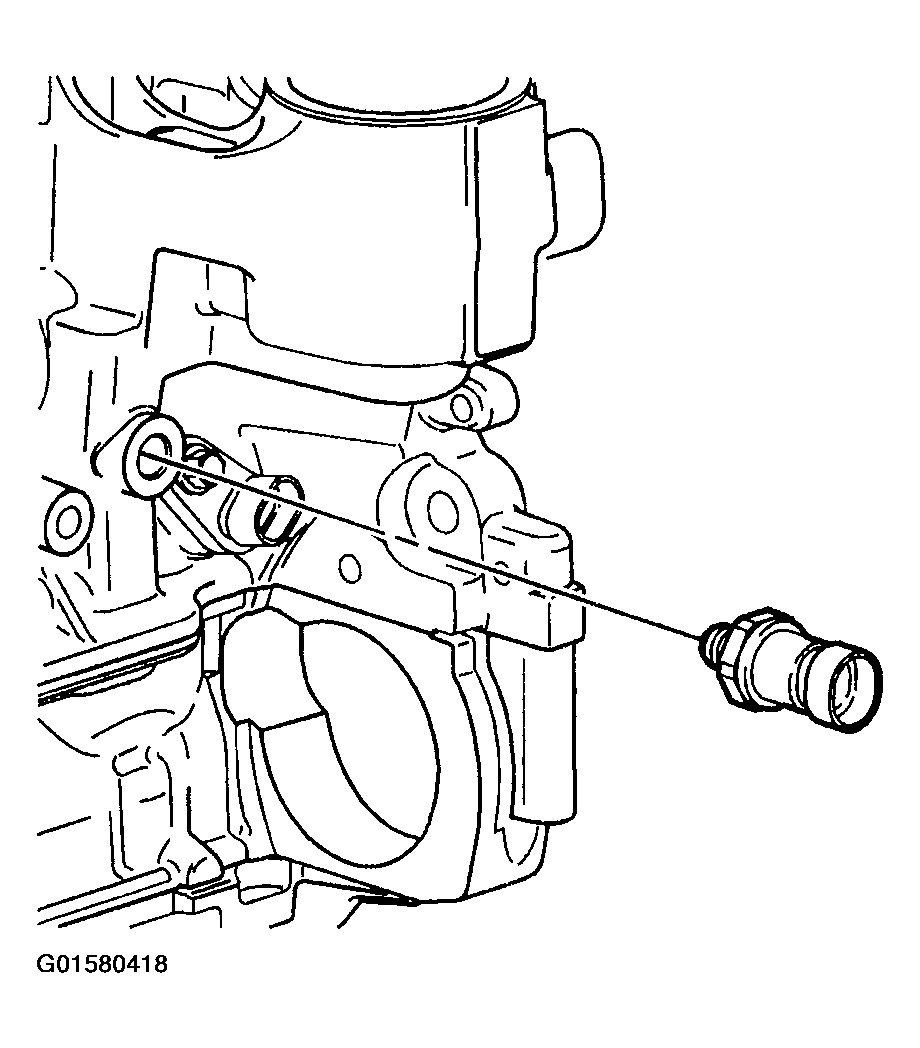

  1. Install the engine oil pressure sensor. See Figure.

    Tighten

    Tighten the oil pressure switch to 22 N.m (16 lb ft).

  2. Connect the engine oil pressure sensor electrical connector.
  3. Lower the vehicle.
  4. Connect the negative battery cable.
