Installation Procedure

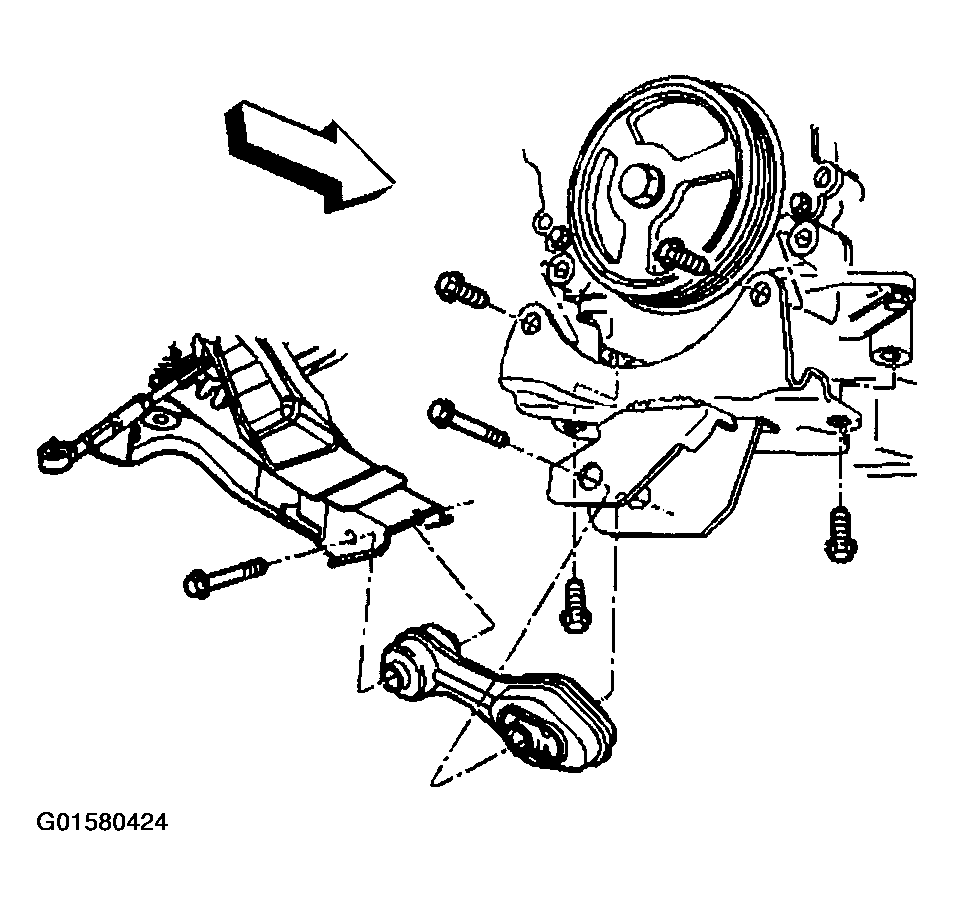

  1. Install the engine mount strut. See Figure.
  2. Install the engine mount strut bolts.

    Tighten

    Tighten the engine mount strut bolts to 100 N.m (74 lb ft) + 90 degrees.

  3. Install the right engine splash shield. Refer to SPLASH SHIELD REPLACEMENT - ENGINE .
  4. Lower the vehicle.
