Steering Column Disassembled View (Tilt Column)

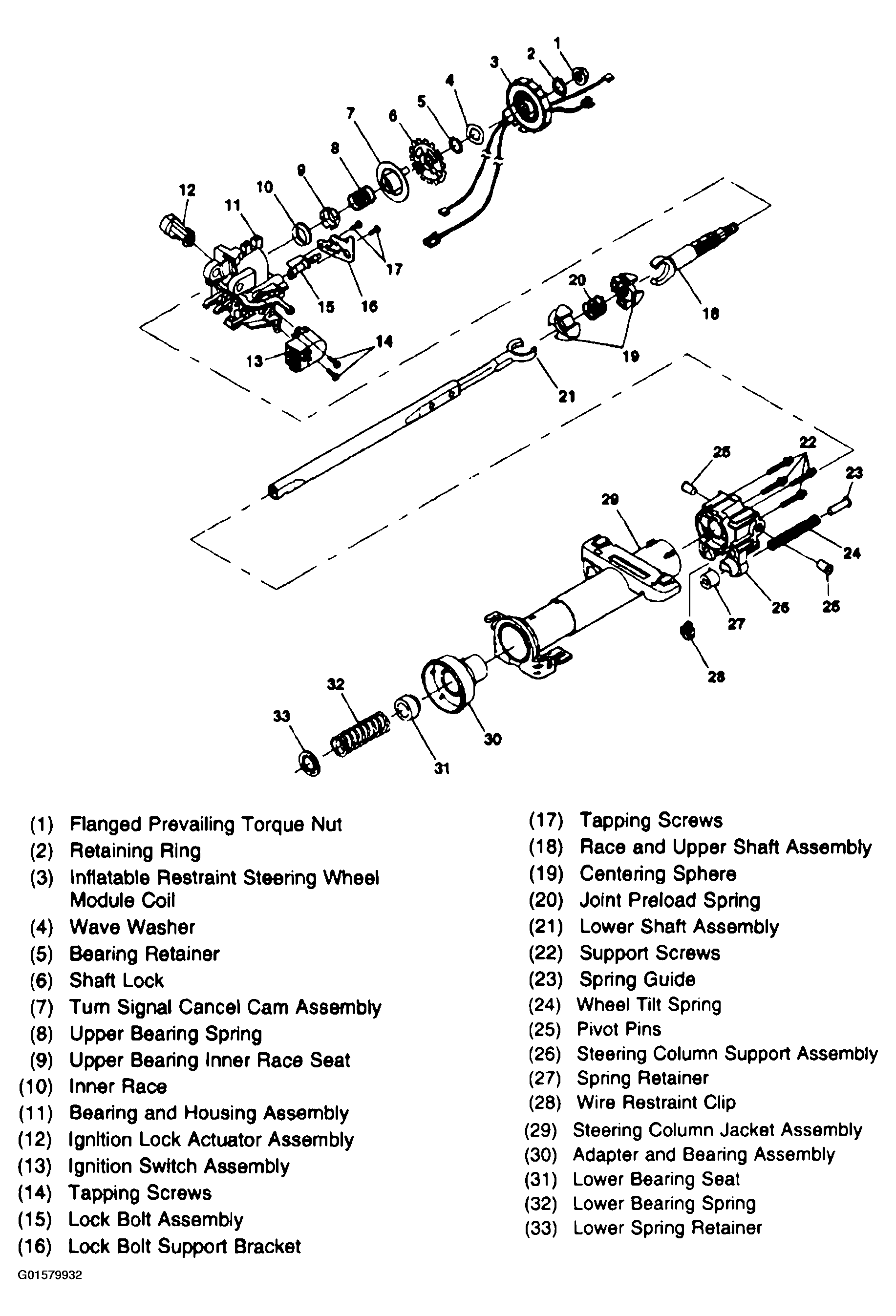

Fig 1: Exploded View Of Tilt, Floor Shift Steering Column

G01579932

Courtesy of GENERAL MOTORS CORP.
