Installation Procedure

  1. Depress the brake pedal and insert the cruise control release switch into the bracket until the retainer is fully seated.
  2. Connect the electrical connector to the cruise control release switch.
  3. Adjust the cruise control release switch as needed. Refer to CLUTCH RELEASE SWITCH ADJUSTMENT  .
  4. Install the left instrument panel insulator.

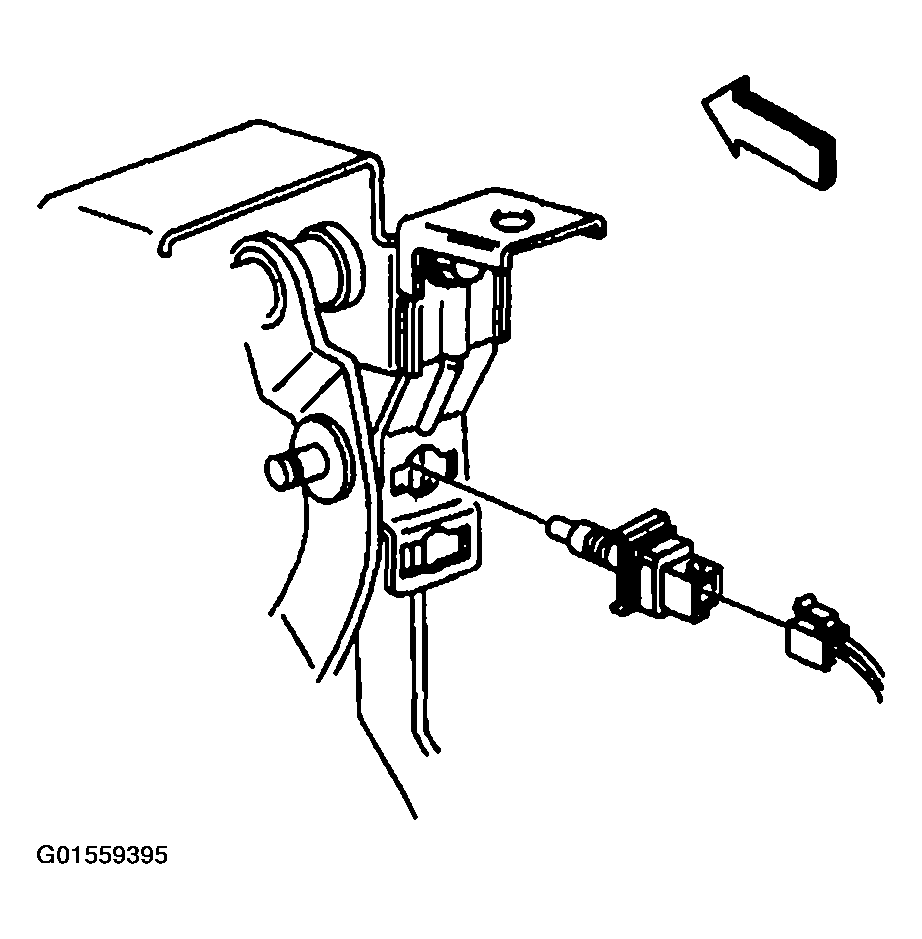

    Fig 1: Installing Cruise Control Release Switch
    G01559395Courtesy of GENERAL MOTORS CORP.
