Power Window Schematics (Front Windows)

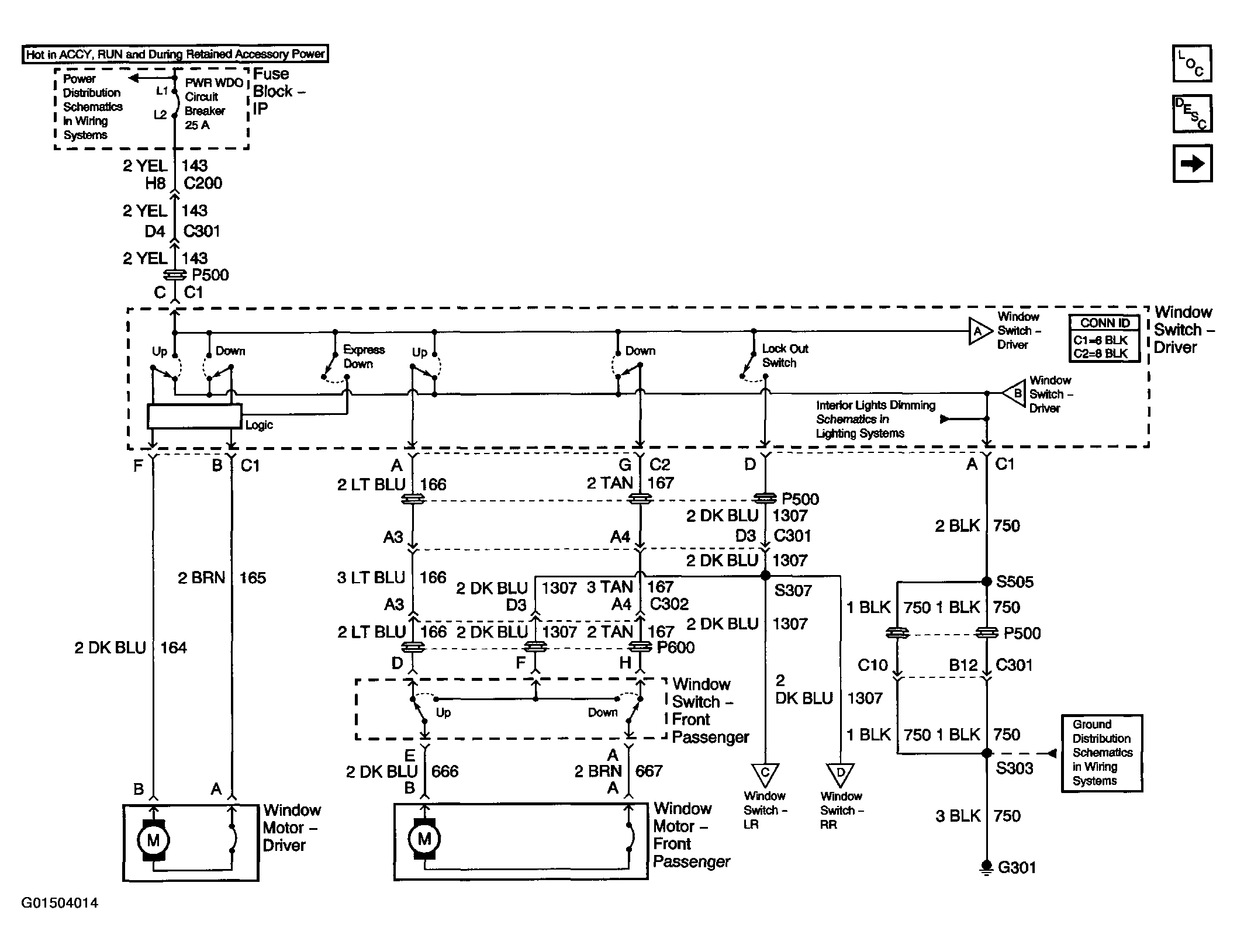

Fig 1: Power Window (Front Windows) Schematics Diagram
G01504014Courtesy of GENERAL MOTORS CORP.

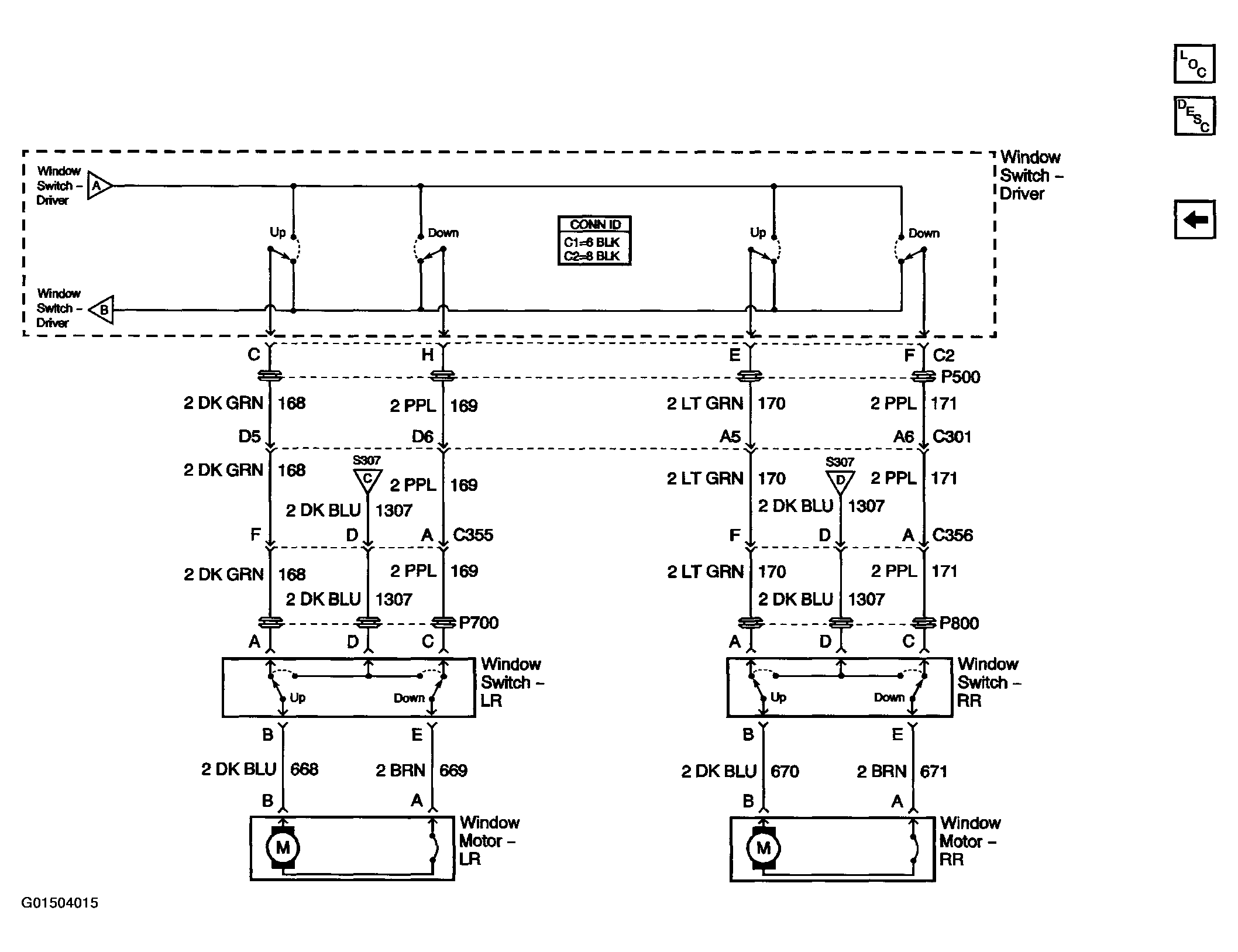

Fig 2: Power Window (Rear Windows) Schematics Diagram
G01504015Courtesy of GENERAL MOTORS CORP.
