Removal Procedure

  1. Remove the front door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR  .
  2. Disconnect the electrical connectors.
  3. Remove the mirror reinforcement cover.
  4. Remove the nuts from the mirror.
  5. Remove the mirror from the front door.

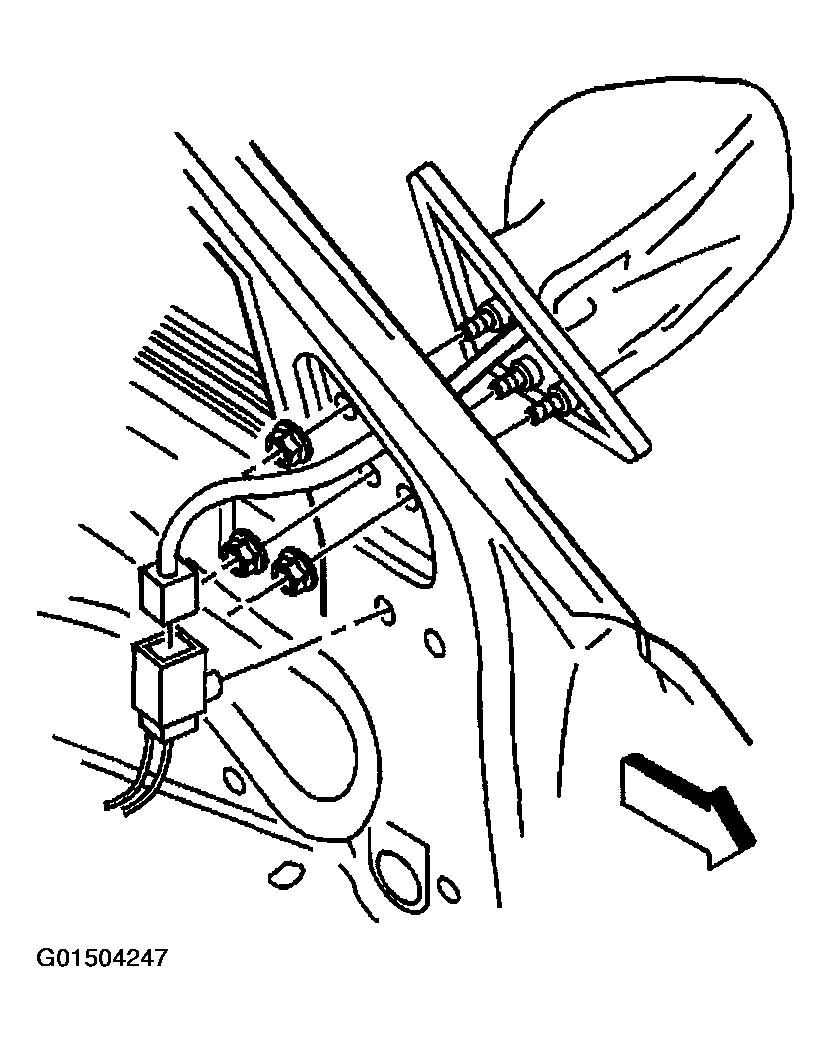

    Fig 1: Removing Power Mirror From Front Door
    G01504247Courtesy of GENERAL MOTORS CORP.
