Removal Procedure

  1. Remove the console trim plate. Refer to TRIM PLATE REPLACEMENT -- FRONT FLOOR CONSOLE (AZTEK) or TRIM PLATE REPLACEMENT -- FRONT FLOOR CONSOLE (RENDEZVOUS) .

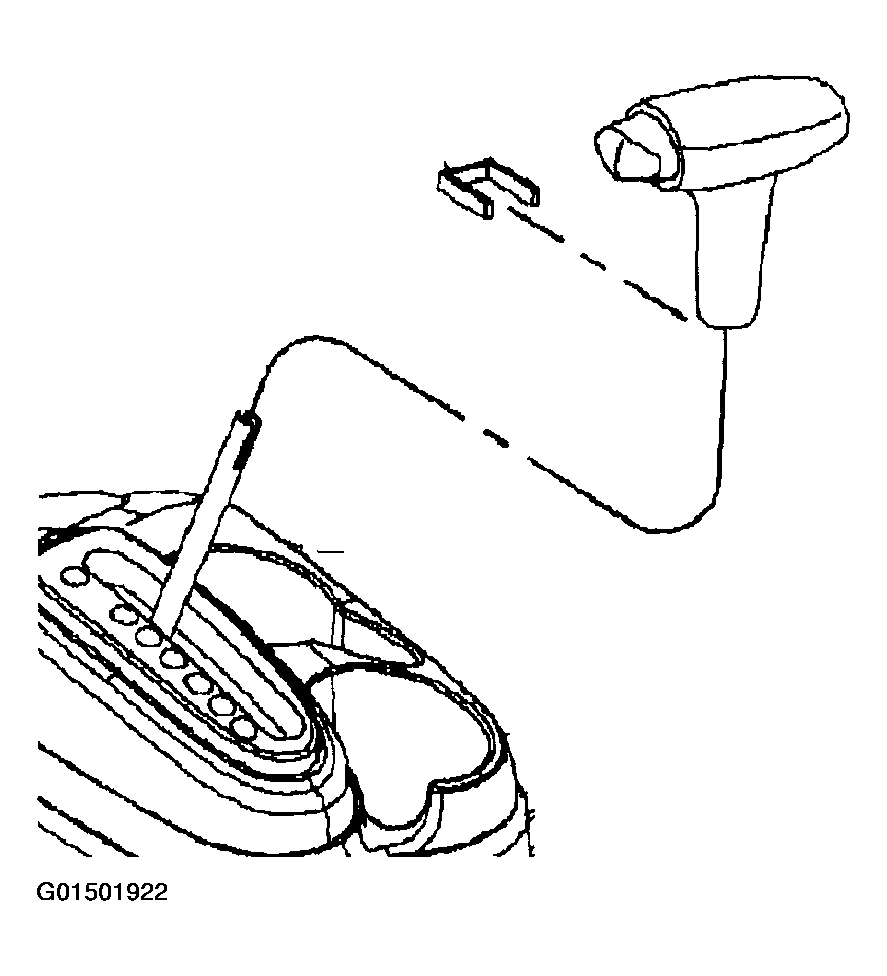

    Fig 1: Installing Shift Indicator (5 Of 5)
    G01501922Courtesy of GENERAL MOTORS CORP.
  2. Use a flat-bladed tool in order to remove the shift cable end from the shift control lever.

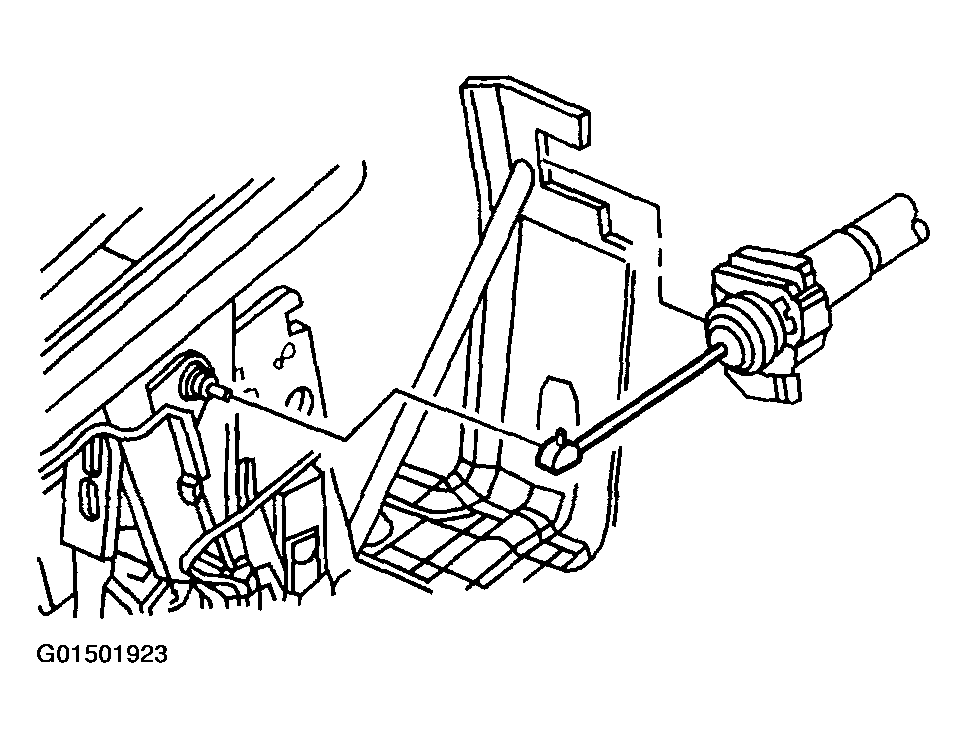

    Fig 2: Removing Floor Shift Control (1 Of 2)
    G01501923Courtesy of GENERAL MOTORS CORP.
  3. Remove the shift control cable from the shift control.
  4. Remove the shift control wire harness from the shift control.
  5. Remove the shift control fasteners.
  6. Remove the shift control.

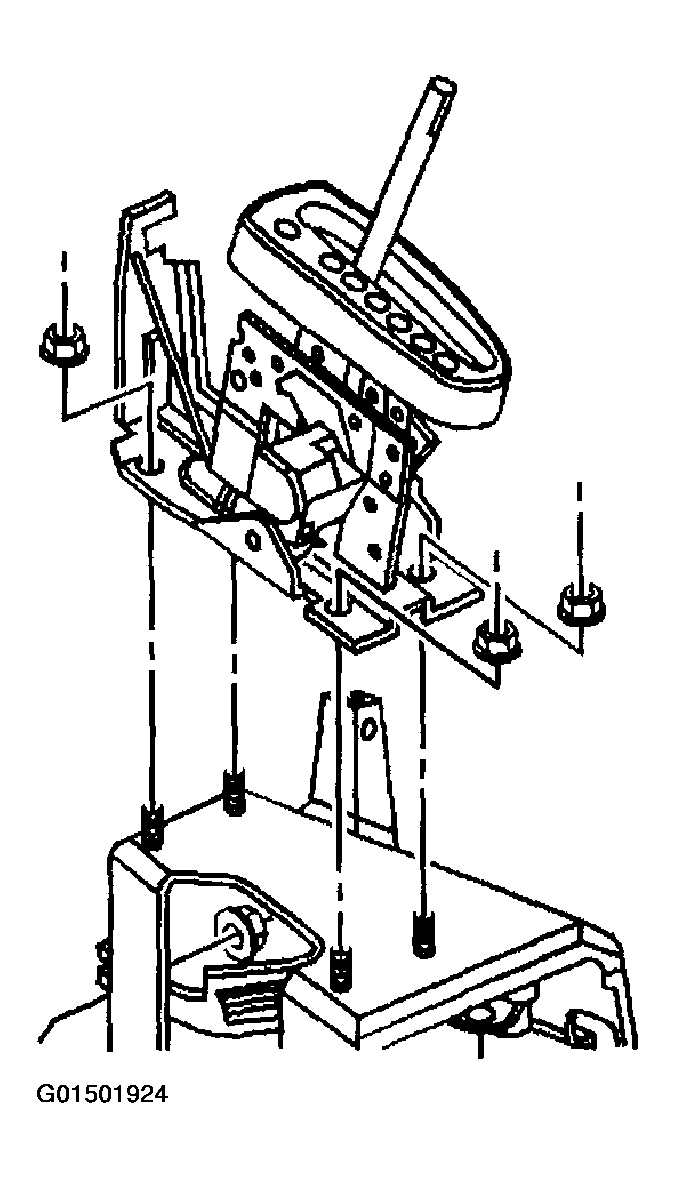

    Fig 3: Removing Floor Shift Control (2 Of 2)
    G01501924Courtesy of GENERAL MOTORS CORP.
