Automatic Transmission Electronic Component Views

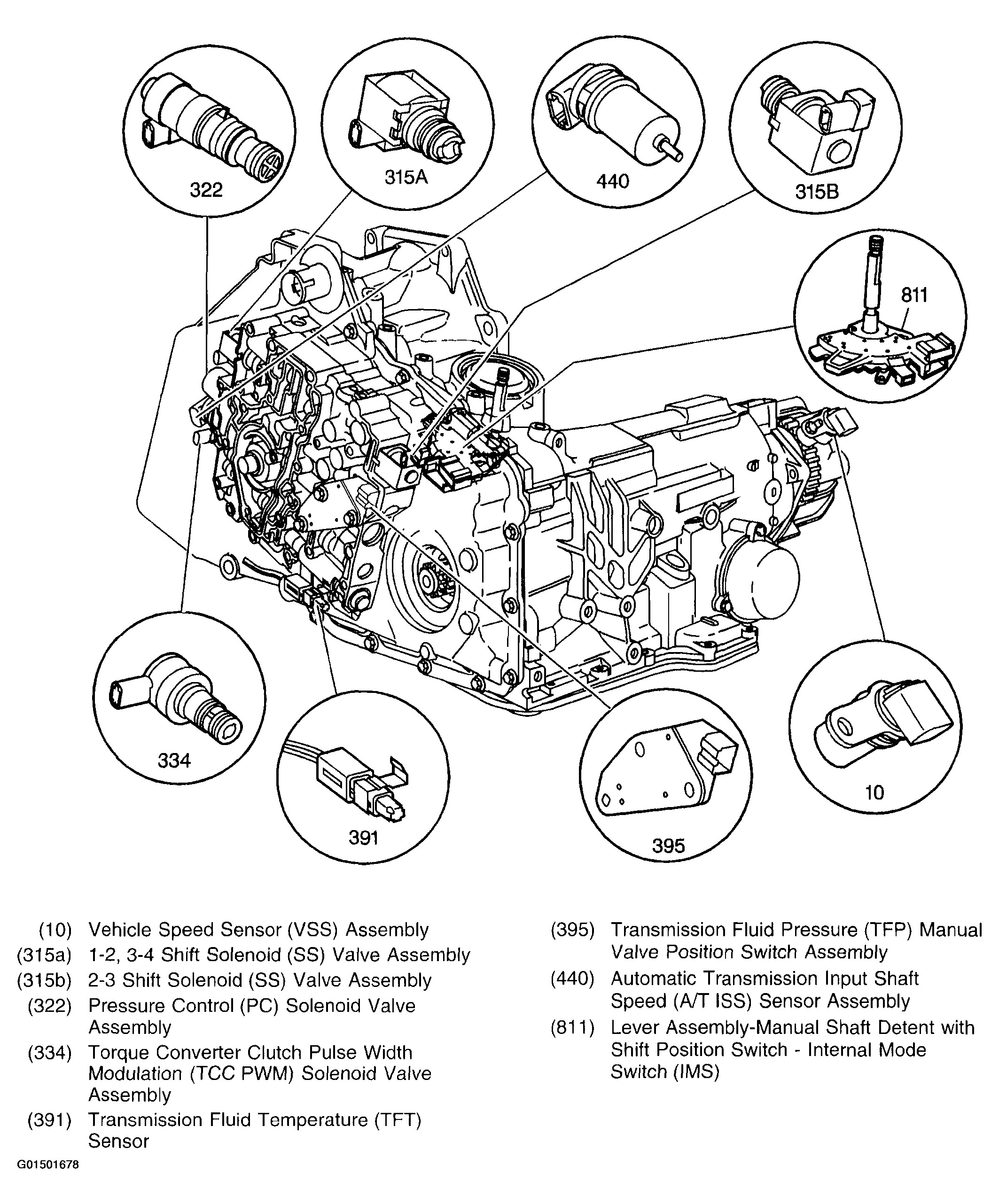

Fig 1: Locating Internal Electronic Components Of Automatic Transmission

G01501678

Courtesy of GENERAL MOTORS CORP.
