Home >> Pontiac >> 2003 >> Aztek AWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Shift Interlock System >> Diagnostic Information and Procedures >> Park Lock Solenoid Inoperative

Park Lock Solenoid Inoperative

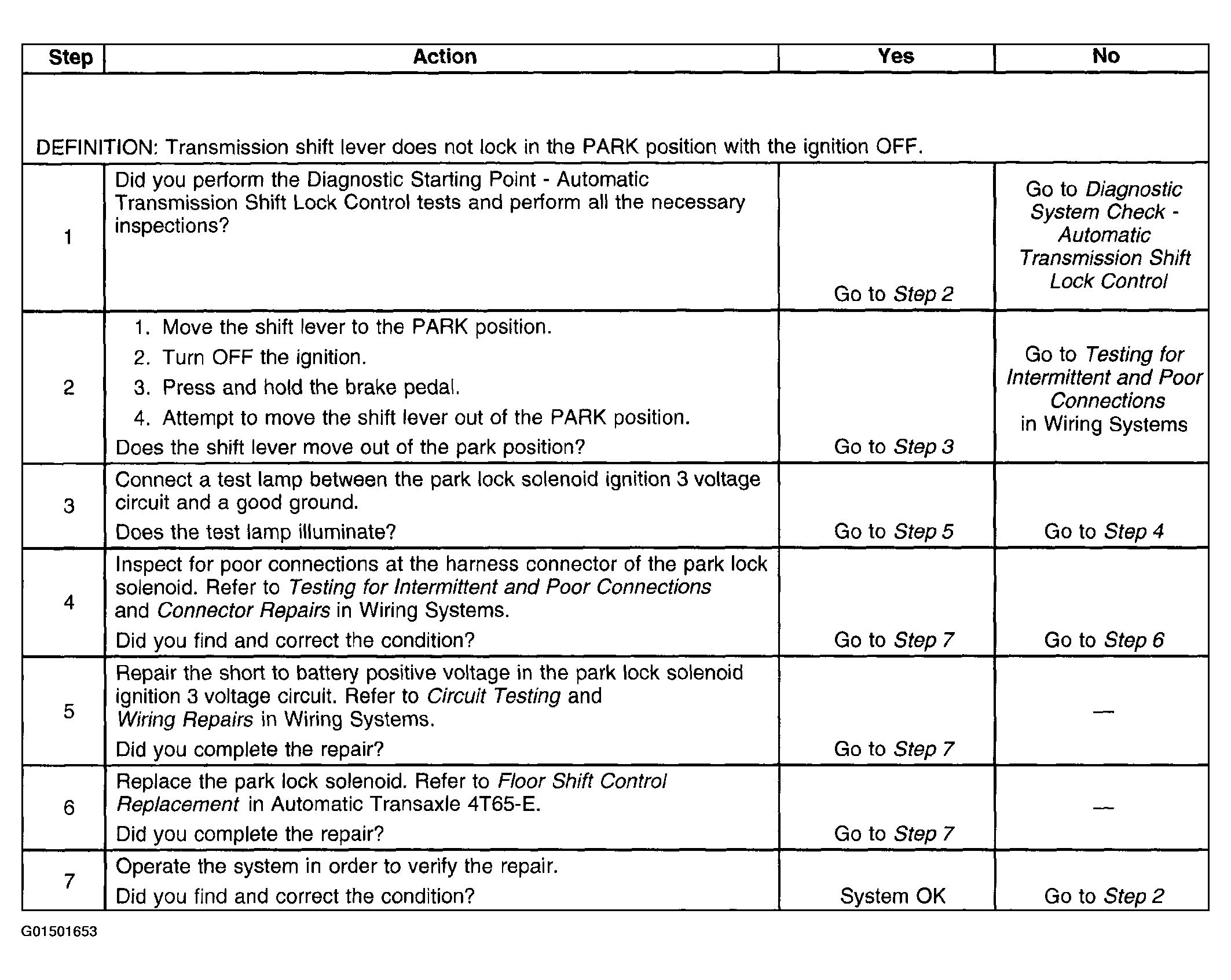

Fig 1: Park Lock Solenoid Inoperative Diagnosis

G01501653

Courtesy of GENERAL MOTORS CORP.
