2-3 Shift Solenoid Valve: Installation

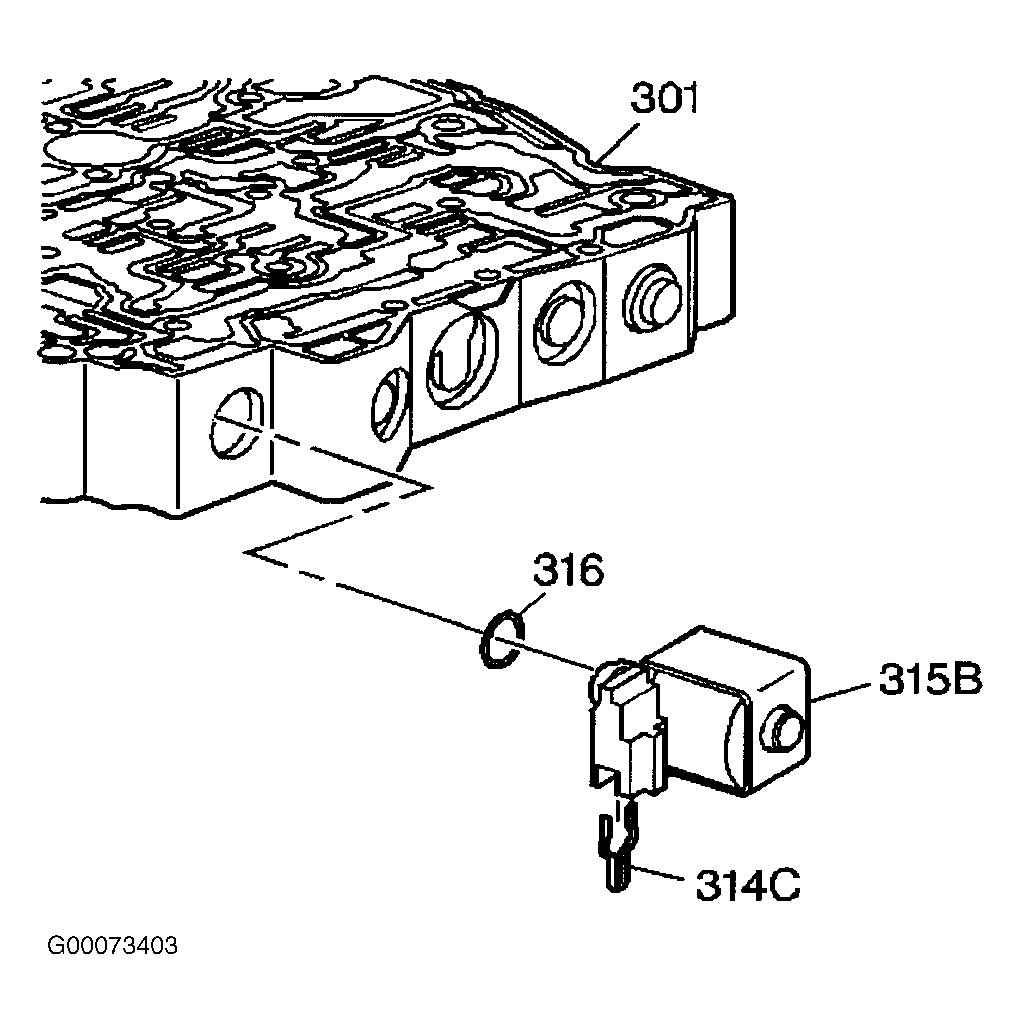

Install a new "O" ring seal (316) onto the 2-3 shift solenoid valve (315B) if the "O" ring was removed. Install the 2-3 shift solenoid (315B). See Figure . Install the 2-3 shift solenoid valve retainer (314C) into the control valve body (301). Connect the transaxle wiring harness. Install the case side cover. See CASE SIDE COVER  .
