Installation Procedure

  1. Install the torque converter cover.
  2. Install the torque converter cover bolts.

    Tighten

    Tighten the bolts to 10 N.m (89 lb in).

  3. Lower the vehicle.

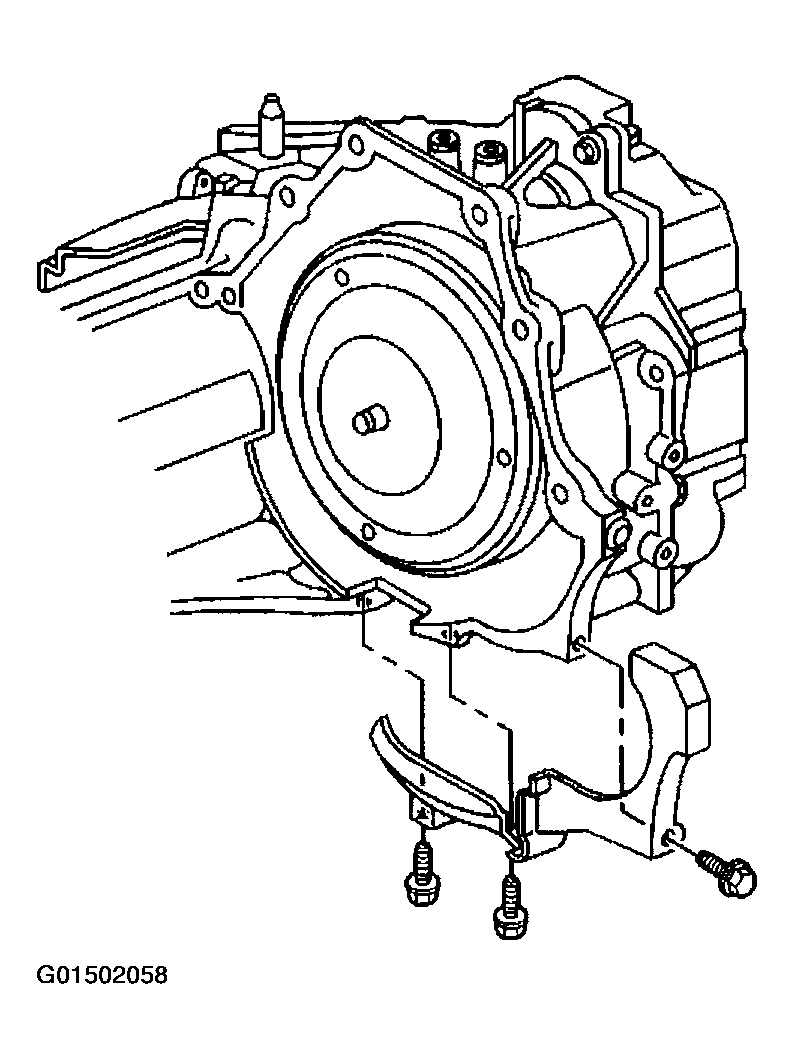

    Fig 1: Installing Torque Converter Cover Bolts
    G01502058Courtesy of GENERAL MOTORS CORP.
