Removal Procedure

  1. Remove the case side cover. Refer to CASE SIDE COVER REPLACEMENT  .
  2. Use a small flat-bladed tool in order to remove the wiring harness from the solenoid valve(s) (315A, 315B, 322, 334 and/or 440), TFP manual valve position switch (395) and/or the temperature sensor (391).

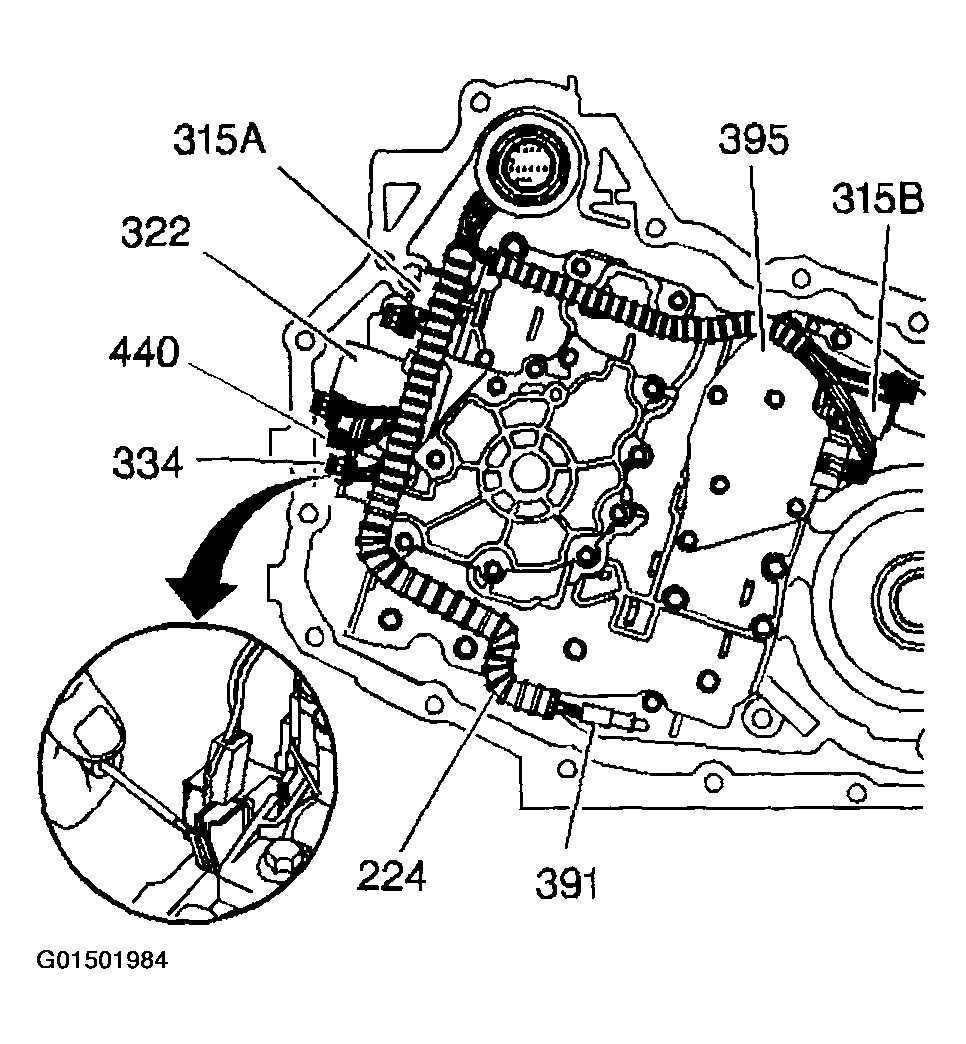

    Fig 1: Removing Fluid Temperature Sensor (1 Of 2)
    G01501984Courtesy of GENERAL MOTORS CORP.
  3. Remove the wiring harness (224).

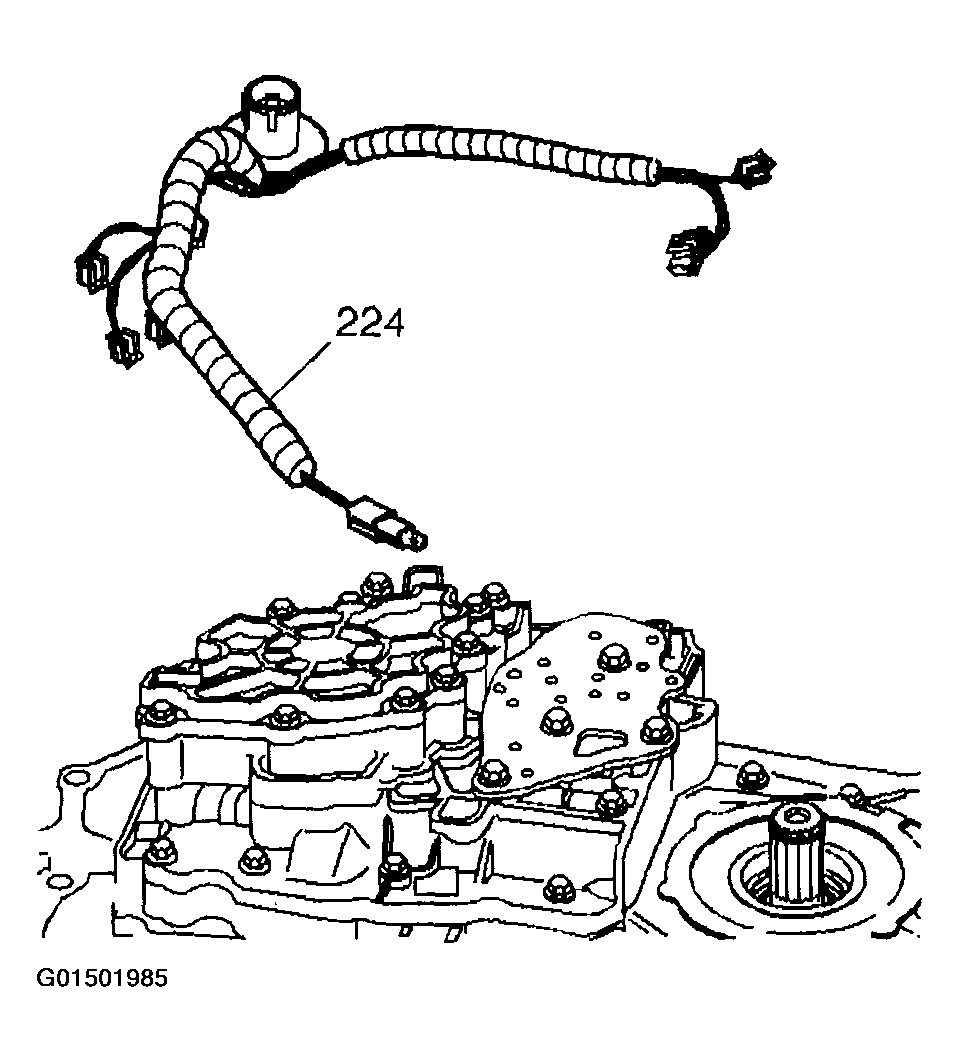

    Fig 2: Removing Fluid Temperature Sensor (2 Of 2)
    G01501985Courtesy of GENERAL MOTORS CORP.
