Installation Procedure

  1. Assemble the sun gear thrust bearing (698), the differential carrier sun gear (697), the park gear (696), the internal gear thrust bearing (695) and the sun gear shaft (689) into the differential carrier (700).

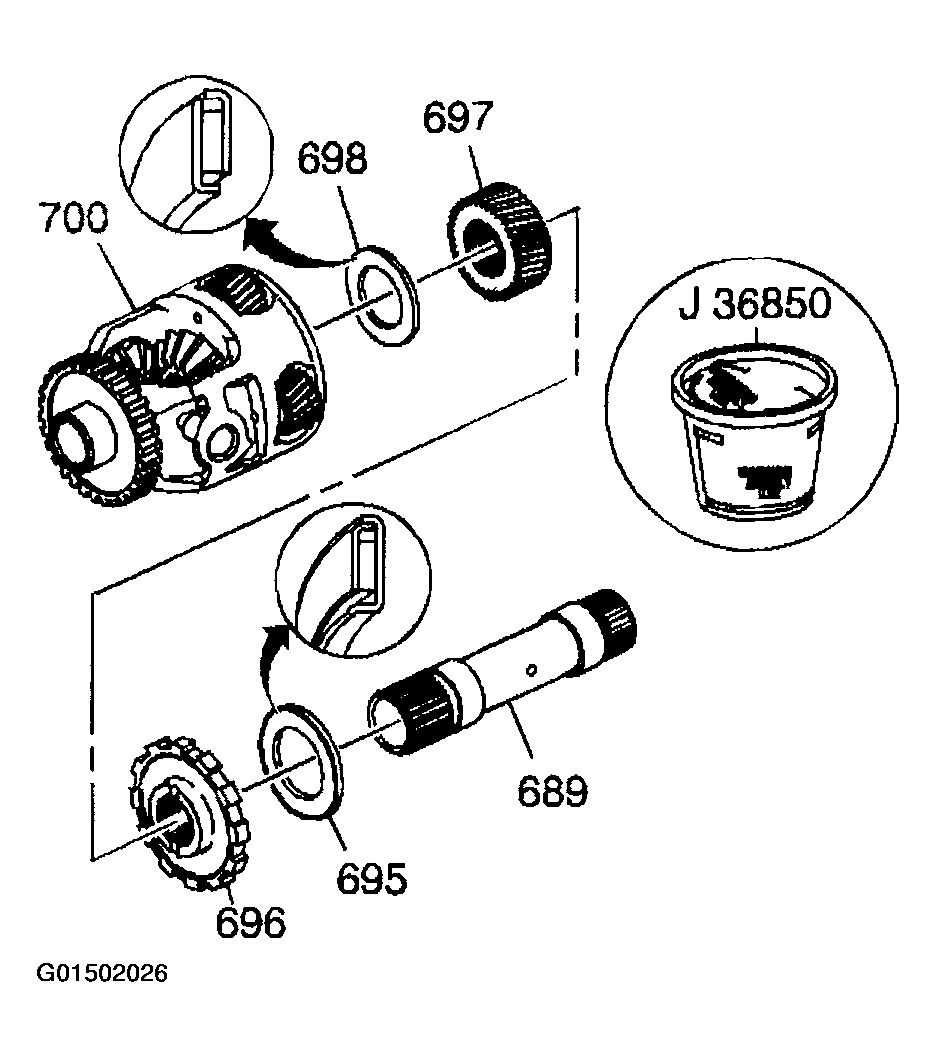

    Fig 1: Installing Final Drive (1 Of 2)
    G01502026Courtesy of GENERAL MOTORS CORP.
  2. Install the differential carrier into the case.
  3. Install the case extension housing. Refer to CASE EXTENSION HOUSING REPLACEMENT  .

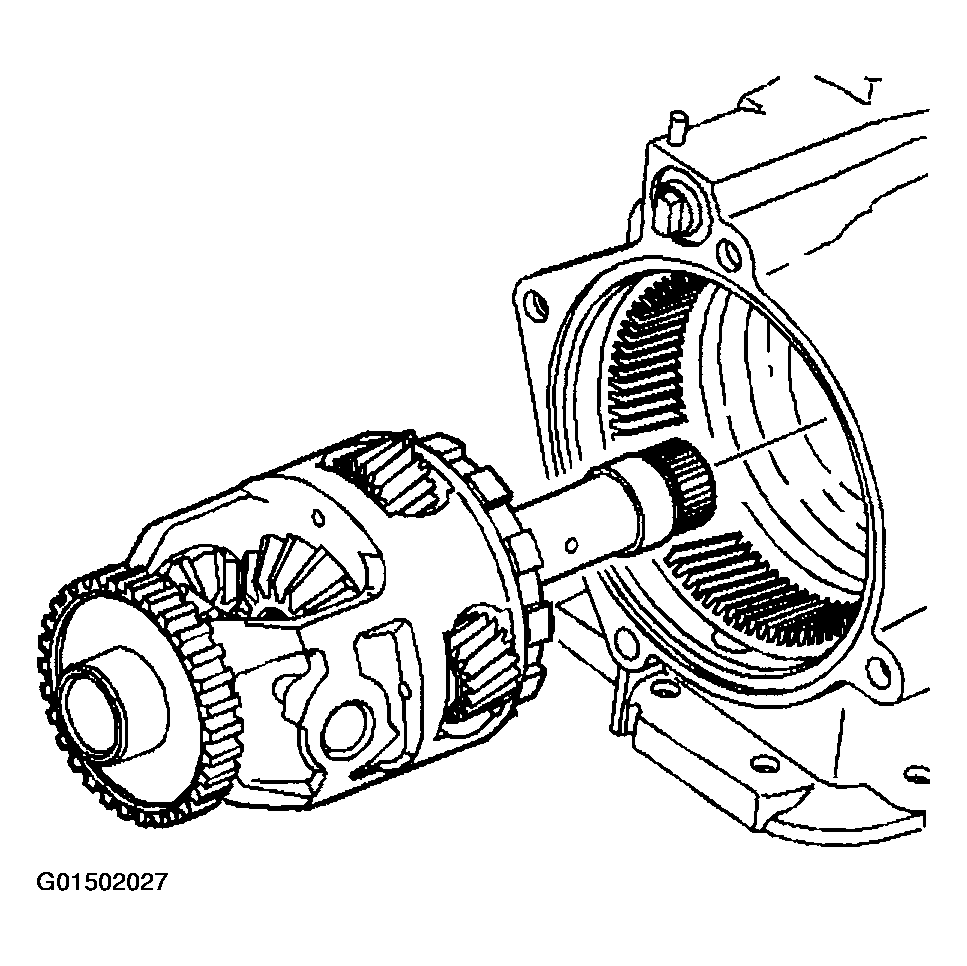

    Fig 2: Installing Final Drive (2 Of 2)
    G01502027Courtesy of GENERAL MOTORS CORP.
