Installation Procedure

  1. Properly route the automatic transaxle range selector cable through the engine compartment.

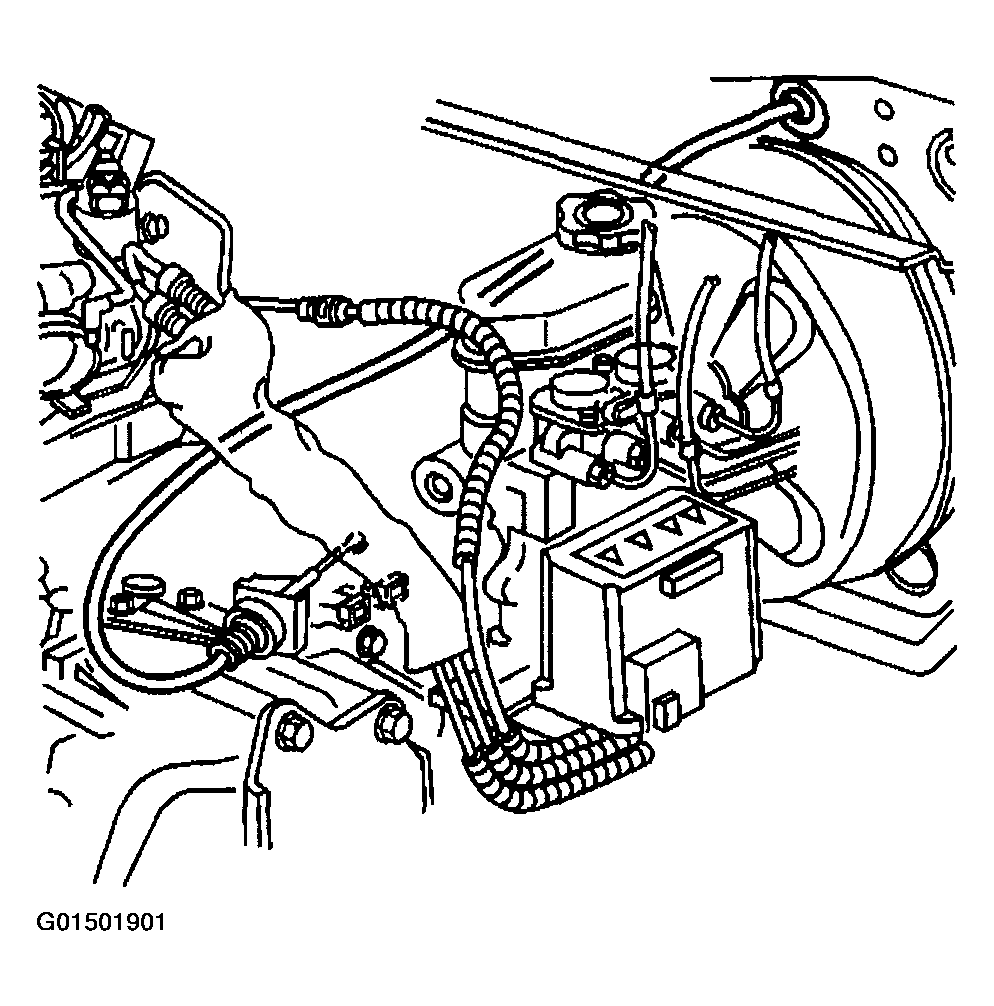

    Fig 1: Installing Automatic Transmission Range Selector Cable (1 Of 6)
    G01501901Courtesy of GENERAL MOTORS CORP.
  2. Install the automatic transaxle range selector cable through the cowl.

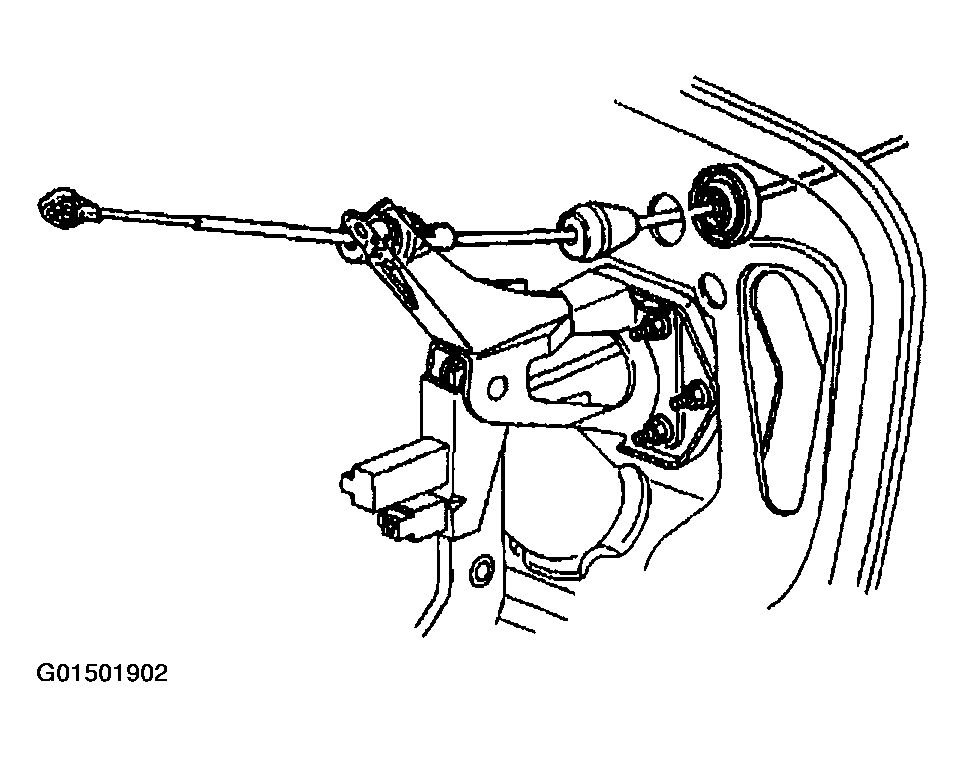

    Fig 2: Installing Automatic Transmission Range Selector Cable (2 Of 6)
    G01501902Courtesy of GENERAL MOTORS CORP.
  3. If the vehicle is equipped with a column shift, perform the following steps:
    1. 3.1. Install the automatic transaxle range selector cable to the steering column bracket.
    2. 3.2. Install the retaining clip to the automatic transaxle range selector cable.
    3. 3.3. Install the automatic transaxle range selector cable to the column control lever.

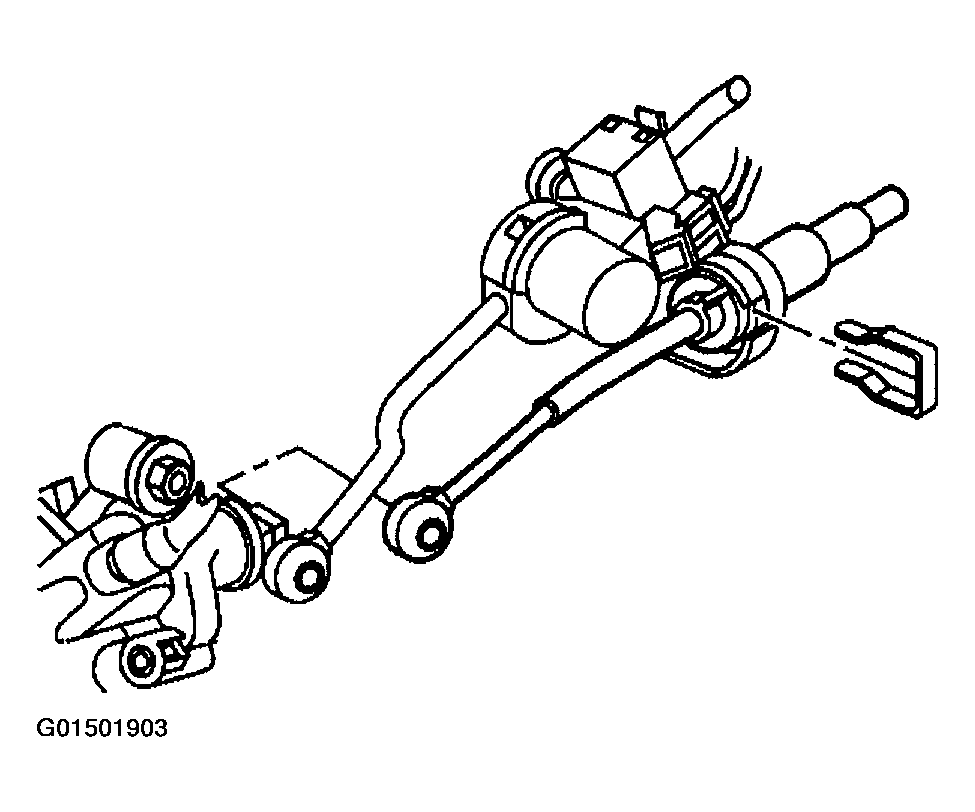

    Fig 3: Installing Automatic Transmission Range Selector Cable (3 Of 6)
    G01501903Courtesy of GENERAL MOTORS CORP.
  4. If the vehicle is equipped with a console shift, perform the following steps:
    1. 4.1. Install the transaxle shift cable to the floor shift control.
    2. 4.2. Install the console trim plate. Refer to TRIM PLATE REPLACEMENT -- FRONT FLOOR CONSOLE (AZTEK) or TRIM PLATE REPLACEMENT -- FRONT FLOOR CONSOLE (RENDEZVOUS) .
  5. Install the knee bolster. Refer to KNEE BOLSTER REPLACEMENT .

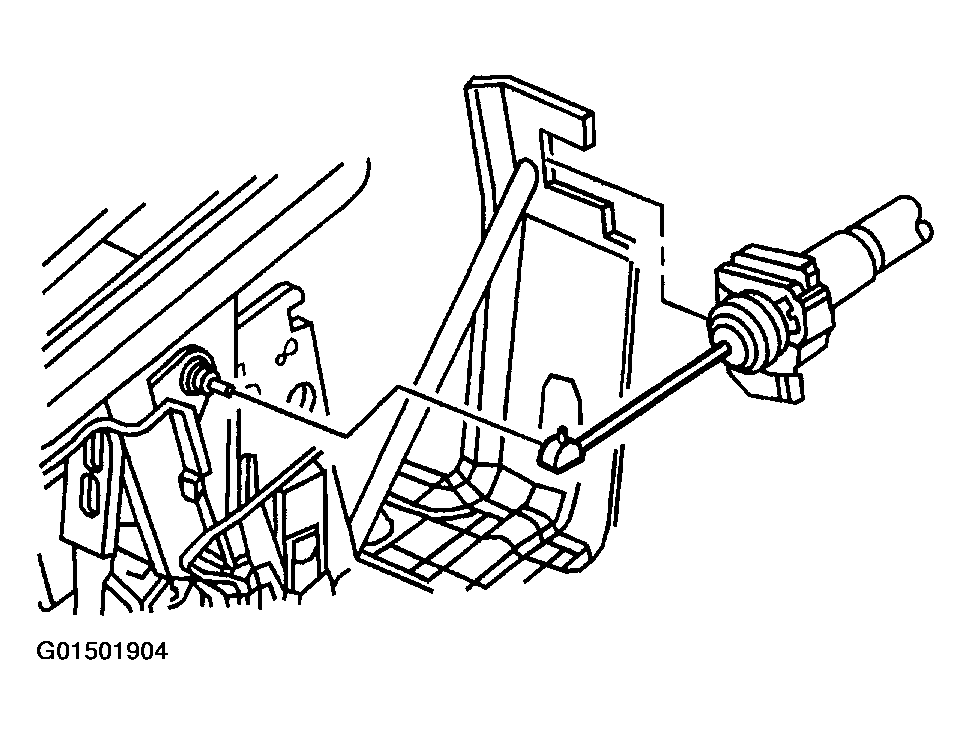

    Fig 4: Installing Automatic Transmission Range Selector Cable (4 Of 6)
    G01501904Courtesy of GENERAL MOTORS CORP.
  6. Install the automatic transaxle range selector cable to the automatic transaxle range selector cable bracket.
  7. Install the automatic transaxle range selector cable to the automatic transaxle range selector lever.

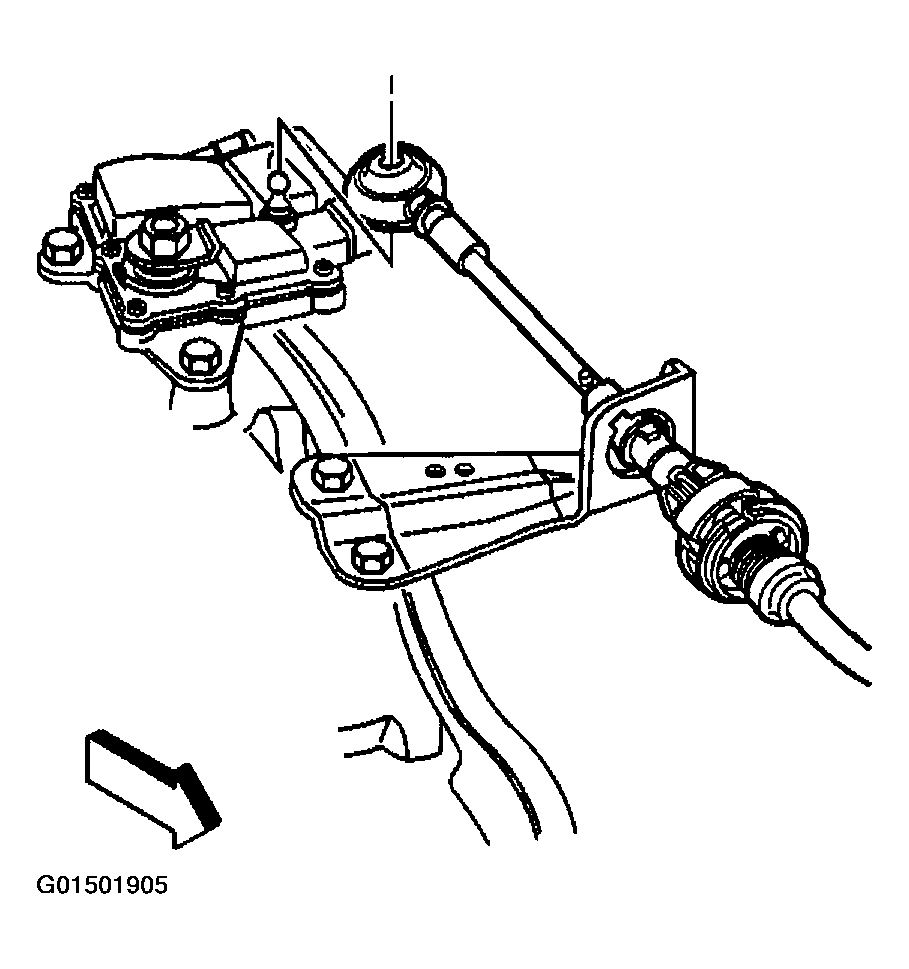

    Fig 5: Installing Automatic Transmission Range Selector Cable (5 Of 6)
    G01501905Courtesy of GENERAL MOTORS CORP.
  8. Install the retaining clip to the automatic transaxle range selector cable.
  9. Adjust the automatic transaxle range selector cable. Refer to AUTOMATIC TRANSMISSION RANGE SELECTOR CABLE ADJUSTMENT  .
  10. Install the throttle body air inlet duct.

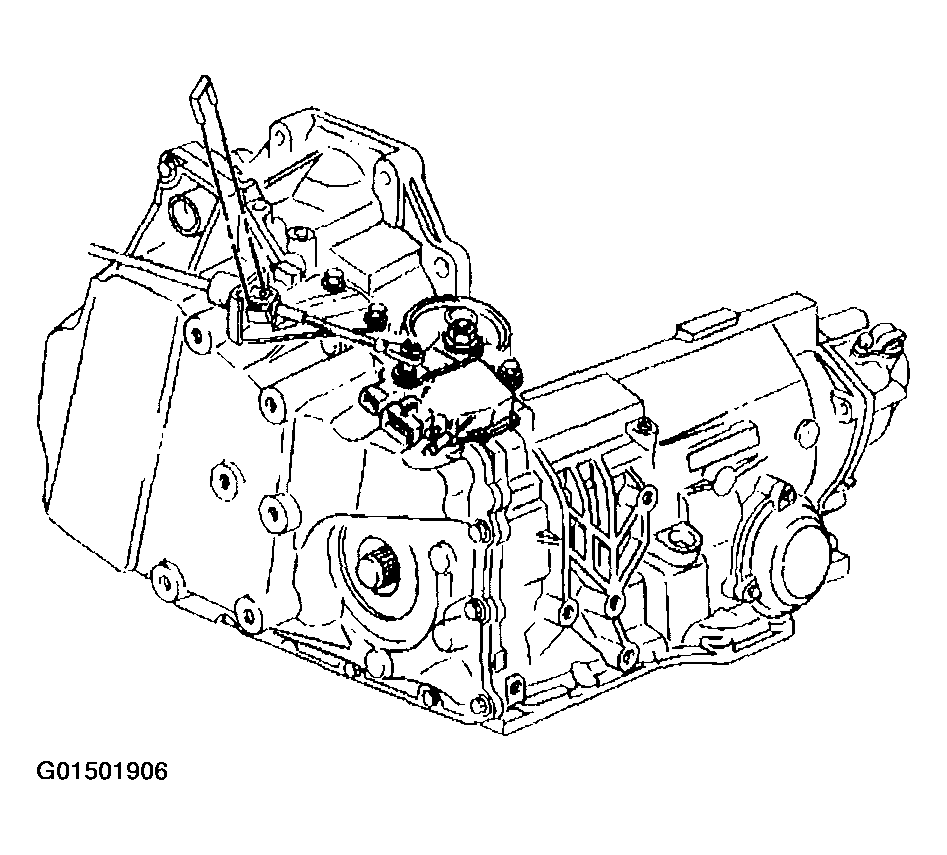

    Fig 6: Installing Automatic Transmission Range Selector Cable (6 Of 6)
    G01501906Courtesy of GENERAL MOTORS CORP.
