Scan Tool Output Controls

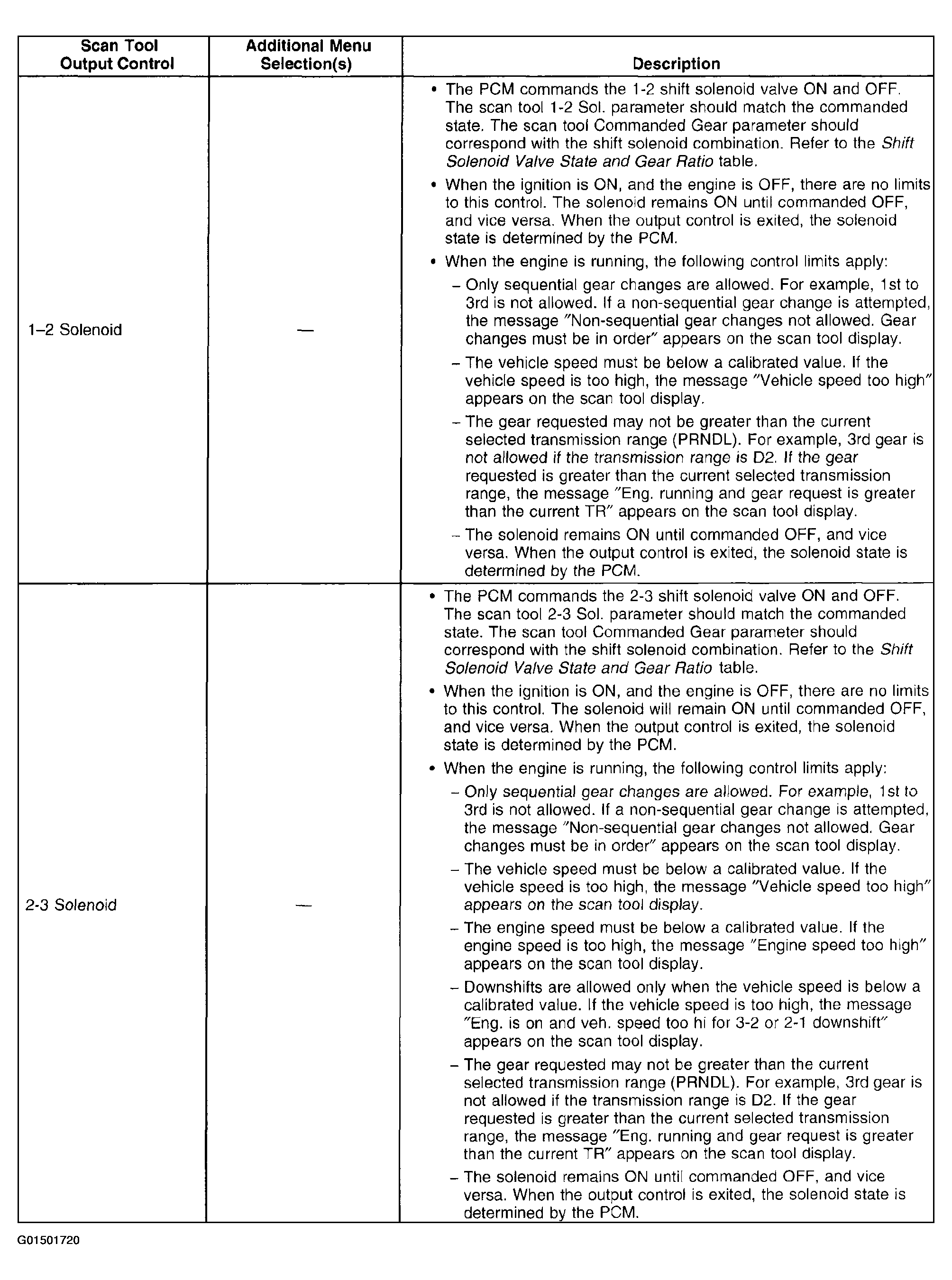

Fig 1: Scan Tool Output Controls (1 Of 3)
G01501720Courtesy of GENERAL MOTORS CORP.

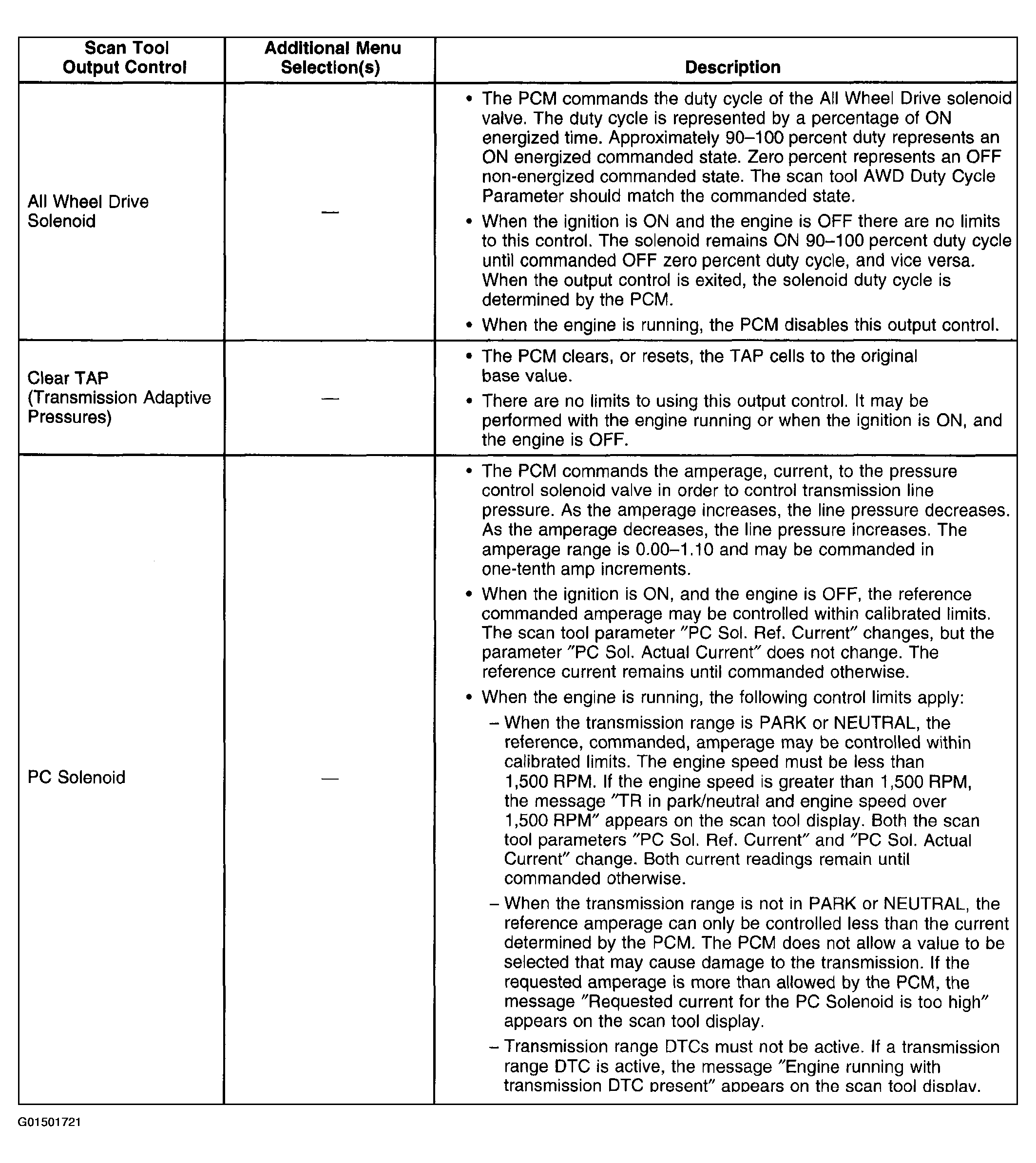

Fig 2: Scan Tool Output Controls (2 Of 3)
G01501721Courtesy of GENERAL MOTORS CORP.

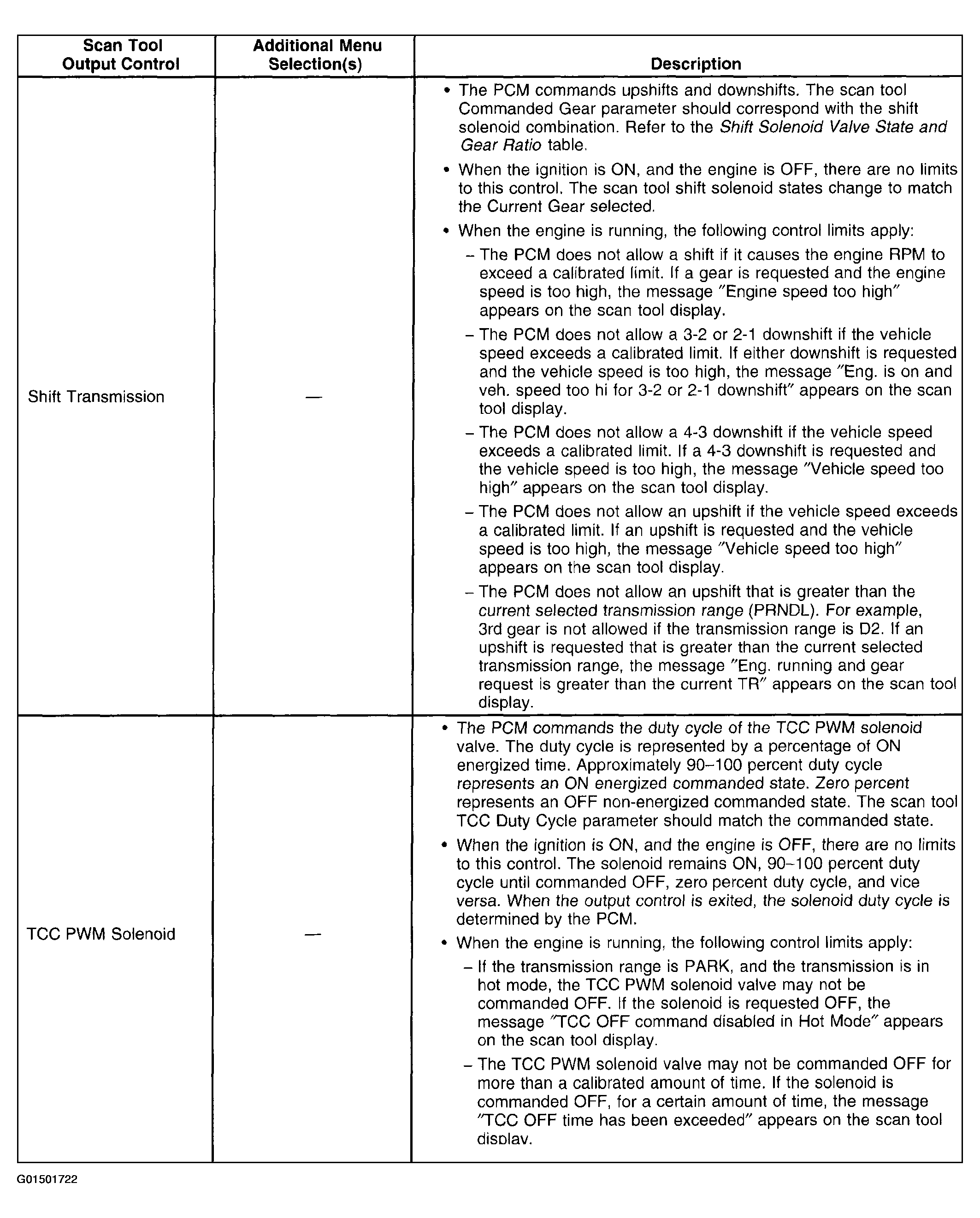

Fig 3: Scan Tool Output Controls (3 Of 3)
G01501722Courtesy of GENERAL MOTORS CORP.
