A/T Related Connector End Views

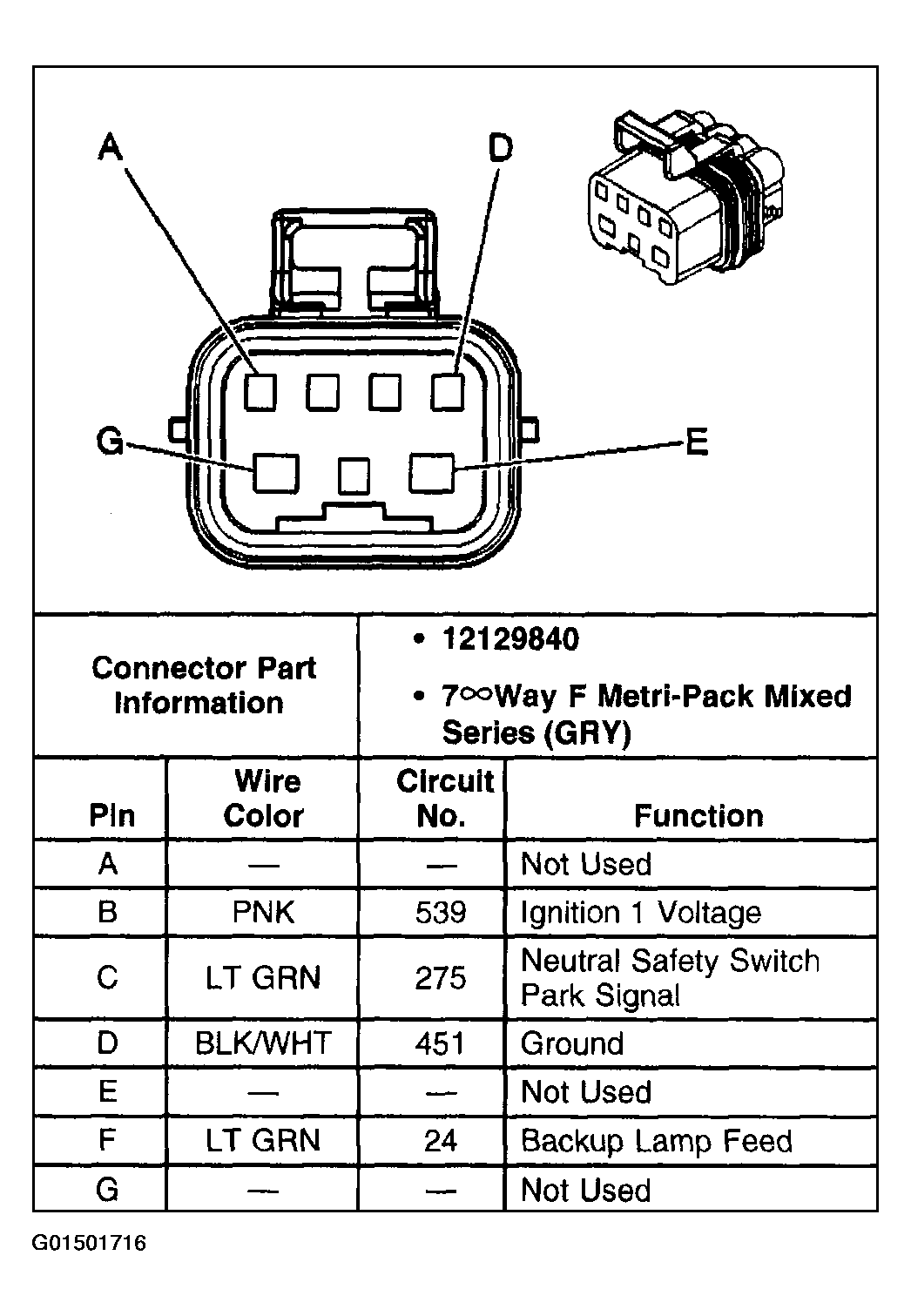

Fig 1: Identifying Transmission Range Switch C1 Connector - Wiring Harness Side
G01501716Courtesy of GENERAL MOTORS CORP.

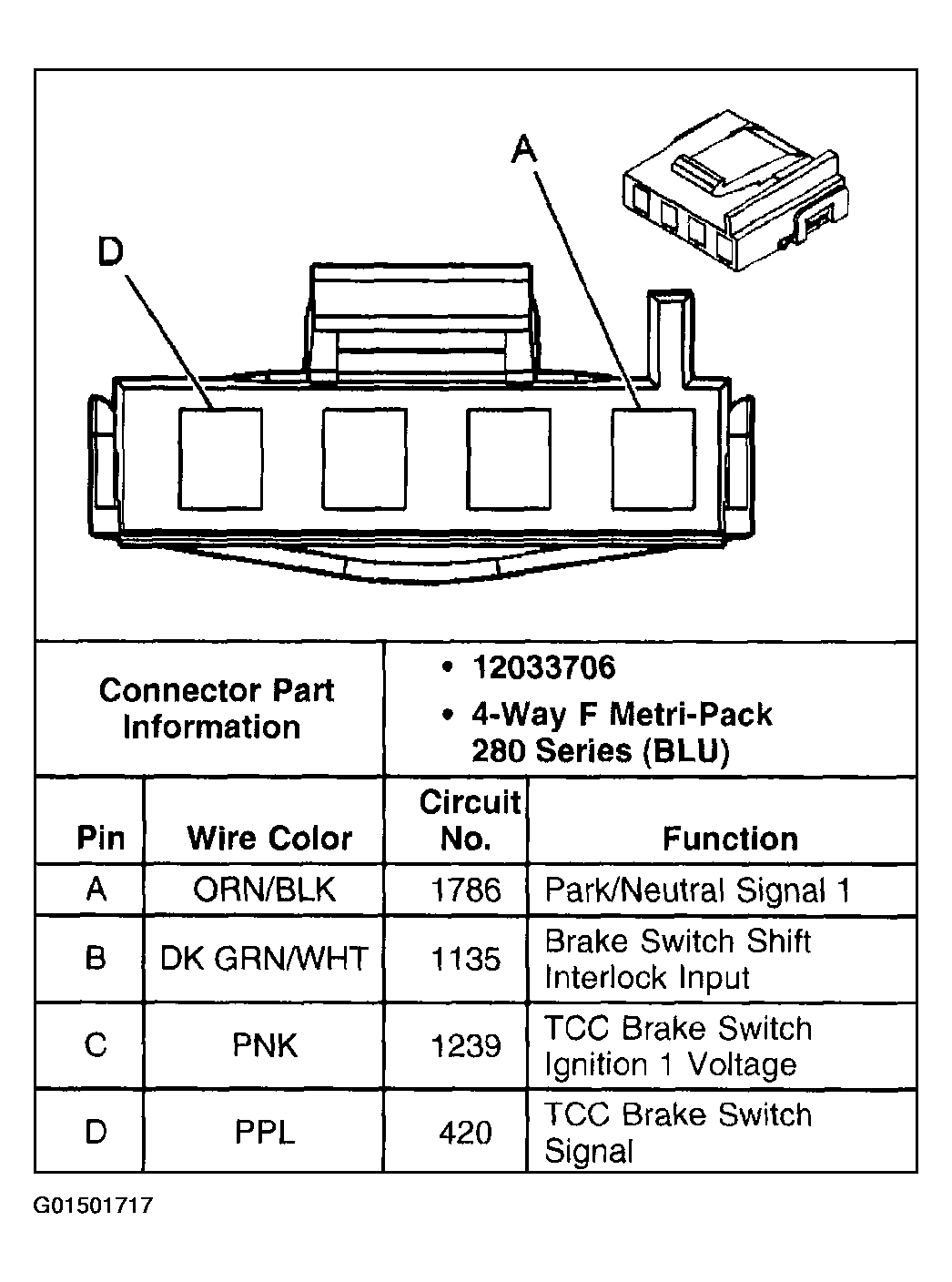

Fig 2: Identifying Transmission Shift Interlock/TCC Brake Switch Connector - Wiring Harness Side
G01501717Courtesy of GENERAL MOTORS CORP.

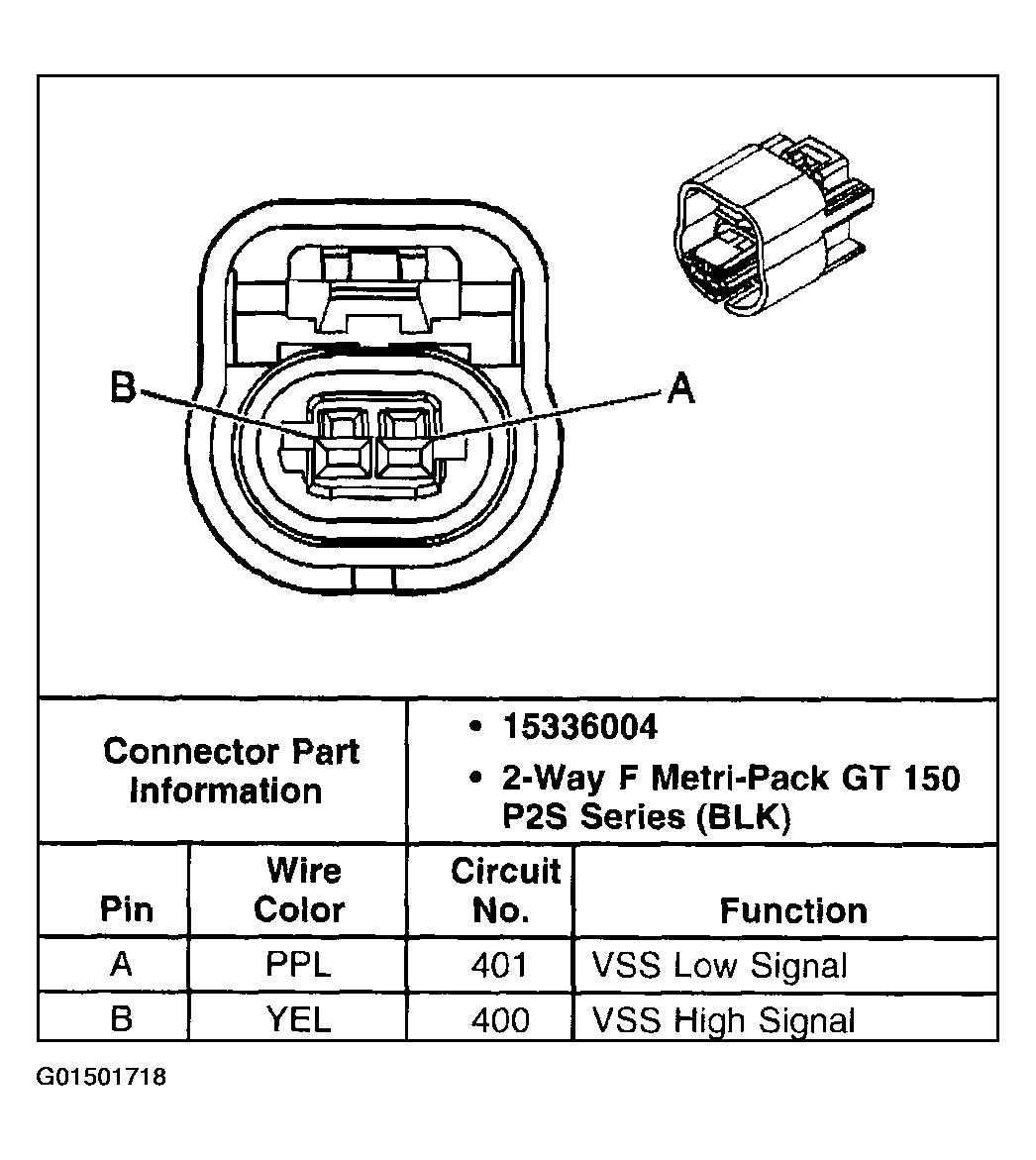

Fig 3: Identifying Vehicle Speed Sensor Connector - Wiring Harness Side
G01501718Courtesy of GENERAL MOTORS CORP.
